Delivery Date:
06/14/2019
Department Name:
Newnan Fire Department
Department City / State:
Newnan, GA

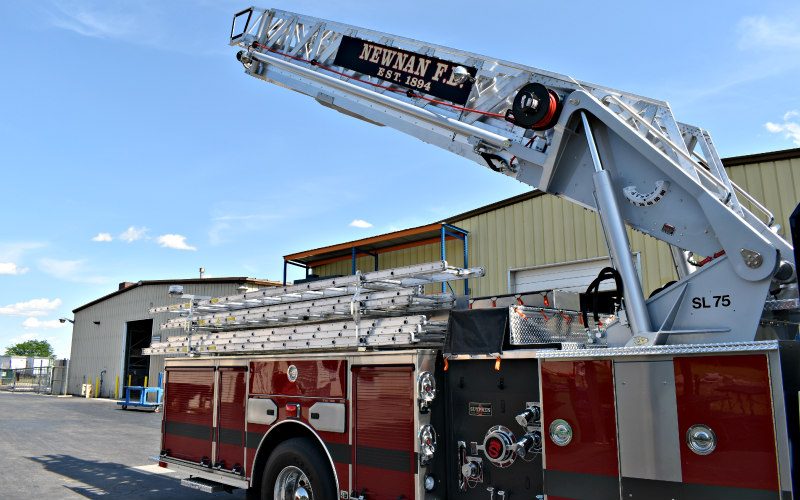

Truck Type:

Sutphen Corporation – HS #6360

Dealer – Williams Fire Apparatus

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’-0 ½”

TRAVEL LENGTH: 40’-6 ¼”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

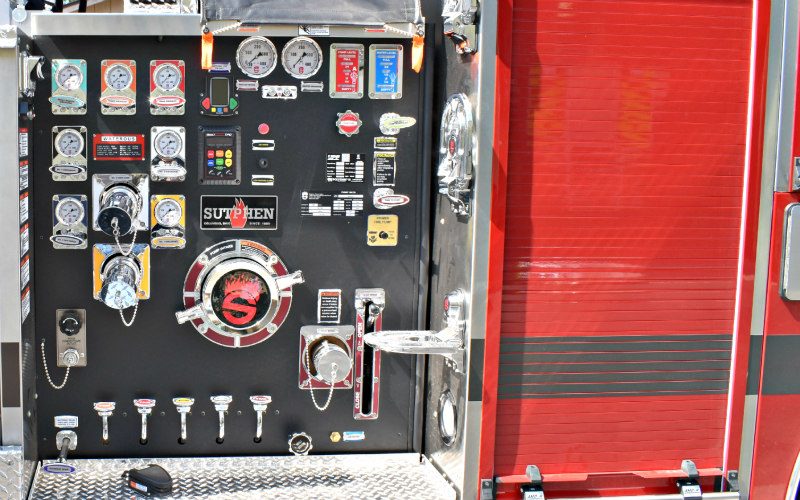

PUMP:                 Waterous

  • CSU-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • Monitor: TFT TY5-E11A-L Typhoon Elec w/ M-ERP-1500 Nozzle
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Doors
  • Over 192 cu. ft. Total Compartment Space

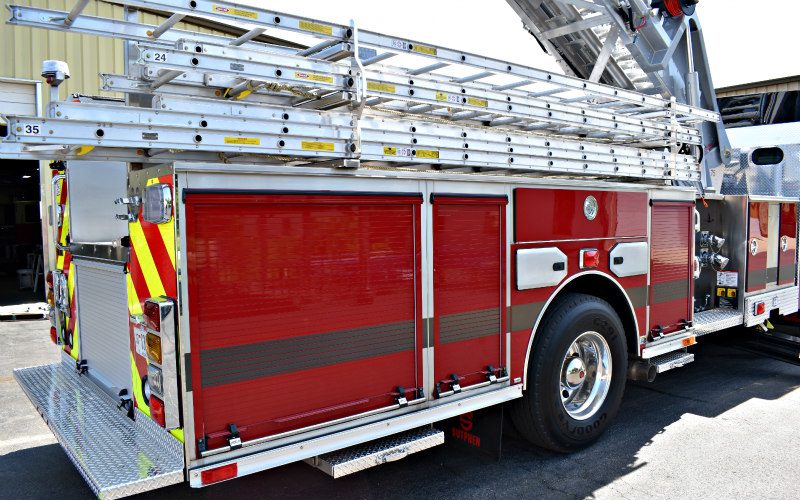

  • Alco-Lite Quint Ladder Compliment (85’: 16R’, 24’ 2-Section, 35’ 3-Section & 10’F)

ADDITIONAL EQUIPMENT:

  • Little Giant 13’ Ladder
  • Federal Q2B Siren, Grille Mount
  • 18” Polished Stainless Steel Bumper
  • Whelen Freedom 4 Lightbar
  • Whelen M9 12V LED Scene Light
  • FRC Spectra 12V LED Brow Light
  • Unity P46FLC Boom Spotlights
