Delivery Date:
04/24/2020
Department Name:
Murfreesboro Fire Rescue
Department City / State:
Murfreesboro, TN
Truck Type:
WHEELBASE: 232”
TRAVEL HEIGHT: 9’ – 9 ¾”
TRAVEL LENGTH: 42’ – 3 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab
- Four-Door, Five-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000

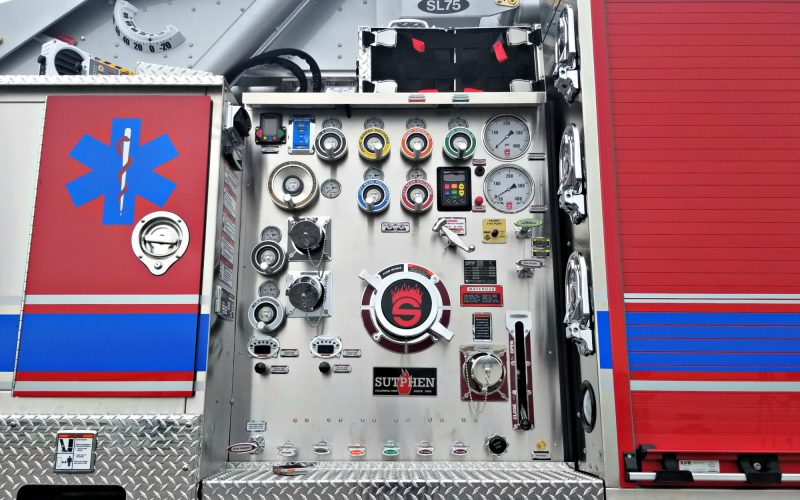

PUMP: Waterous
- CSU-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 3” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper, (1) 2 ½” Aerial Monitor Bracket
- Crosslay: (2) 2” Valve-Piping w/ 1 ½” Swivel
- 500-Gallon Water Tank
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- ROM Roll-Up Compartment Doors
- Over 160 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package (115’: 14’C, 16’R, 16’R, 16’R, 24’ 2-Section, 35’ 3-Section and 10’F
- Body: SAA-2 Left High/Right Low/Trans Rear
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Safety Vision, (3) Camera, (2) Monitor
- Safety Vision DVR, 4000-HVR w/ Dash Camera
- 8KW Smart Power, Generator
- Hanay Electric Cord Reel, 150’ (1)
- Go-Light Stryker LED
- Whelen Summit Lightbar
- Whelen Freedom 4 Lightbar
- Whelen PCP2AC 120V LED Scene Lights
