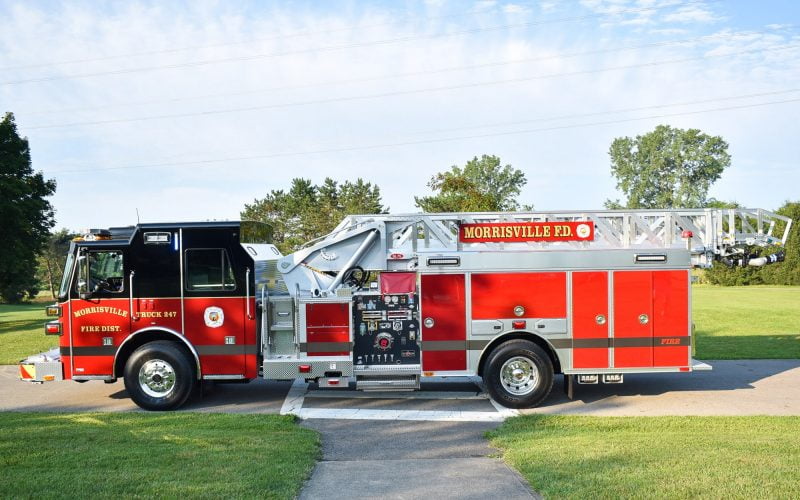

Sutphen Corporation – HS #6950
Dealer – Vander Molen Fire Apparatus
WHEELBASE: 221”
TRAVEL HEIGHT: 10’ – 0 ½”
TRAVEL LENGTH: 41’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4500
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
- Crosslay: (1) 1 ½” & (1) 2 ½”
- 500-Gallon Water Tank
BODY: Sutphen
- Hinged Compartment Doors
- Over 190 cu. ft. Total Compartment Space
- Duo-Safety Quint Ladder Compliment: (16’R, 28’ 2-Section, 28’ 2-Section & 10’ F)
- Body: SAA-4, Left High / Right Intermed / Trans
- Monitor: TFT Y5-E11A-L Typhoon Electric w/ M-ERP-1500
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview 360 HD w/ Built-In DVR
- Intercom System: FRC ACT 2-Station
- Generator: Harrison 6KW
- Aerial/Monitor Wireless Remote Control
- Whelen Freedom LED Lightbar
- Whelen 12V LED Brow Light
- Whelen L31 LED Beacons
- Dual M2 Flashing Lights
