Delivery Date:
12/06/2019
Department Name:
Midland Fire Department
Department City / State:
Midland, MI
Truck Type:
Sutphen Corporation – HS #6212
WHEEL BASE: 215”
TRAVEL LENGTH: 40’-6 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS 3000

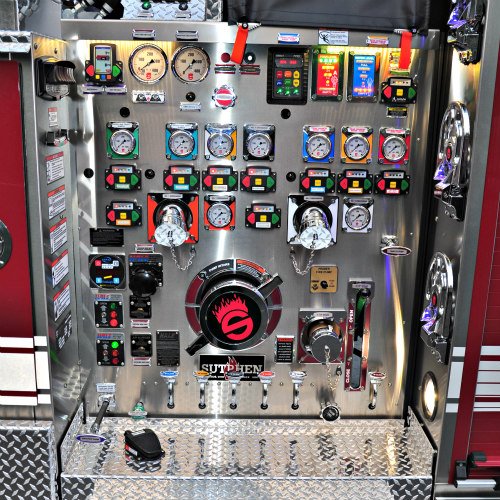

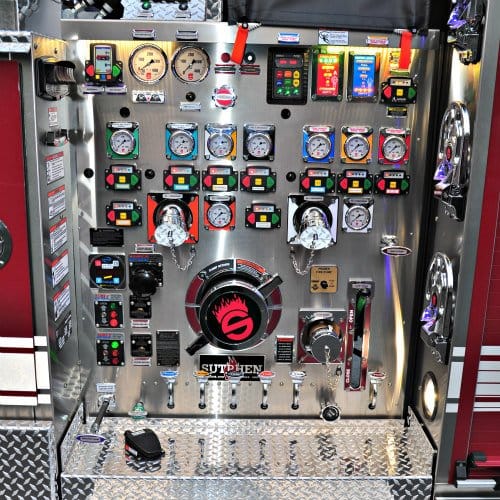

PUMP: Hale
- QMAX-1500 GPM
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front of Upper Left Side, (2) 1 ½” Front Bumper
- Crosslays: (2) 2” Valve-Piping 1 ½” Swivel

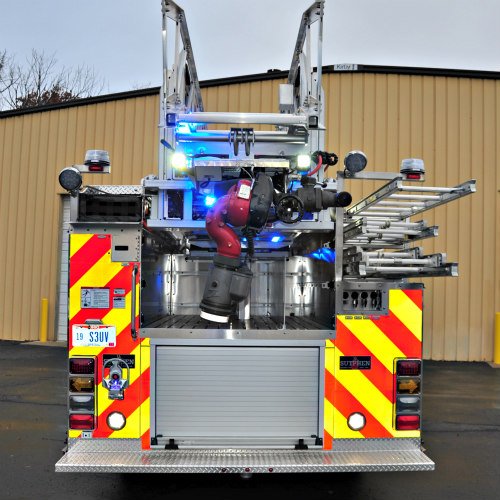

- Monitor: Akron 3480 Stream Master 2 Electric RF with 1578 Saber Master Nozzle
- 20-Gallon Foam Tank
- Hale Foamlogix 2.1
- 500-Gallon Water Tank
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- ROM Roll-Up Compartment Doors
- Over 192 cu. ft. Total Compartment Space
- Alco-Lite Quint Ladder Compliment
- Left High/ Right Intermed/ Trans
OPTIONAL EQUIPMENT:
- 24” Bumper Extension
- Voyager 3 Camera System
- David Clark Intercom – 4 Position
- 6 KW Smart Power Generator
- Hannay Electric Cord Reel, 175’ (1)
- Pike Pole Storage Tubes (4)
- Whelen M9 LED Scene Lights
