Sutphen Corporation – HS #6225
Dealer – Five Star Fire
WHEEL BASE: 221”
TRAVEL HEIGHT: 10’-0 ½”
TRAVEL LENGTH: 40’-11”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins ISX 12, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS 4000

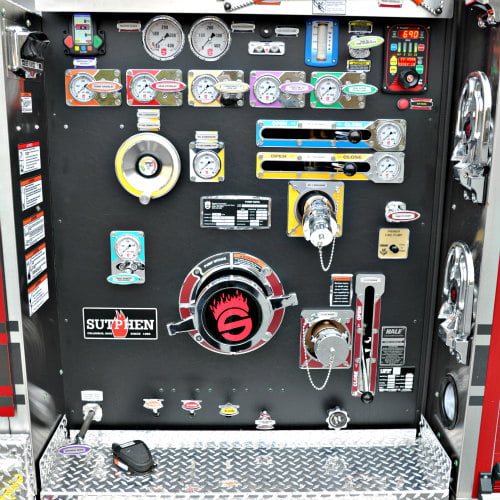

PUMP: Hale
- QMAX-1500 GPM
- Discharges: (1) 1 ½” Front Bumper, (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2” Front/Left of Main Hosebed, (1) 2” Front/Right of Aux Hosebed, (1) 2 ½” Front/Left of Main Hosebed
- 500-Gallon Water Tank
- Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
- Monitor: Akron 3480 Stream Master2, Elec RF w/ 5178 Nozzle
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- ROM Roll-Up Compartment Doors
- Over 192 cu. ft. Total Compartment Space
- Duo-Safety Quint Ladder Compliment
- Stainless Steel Left High / Right Intermed / Trans
OPTIONAL EQUIPMENT:
- 18” Bumper Extension
- Voyager 3 Camera System
- Federal Q2B Siren
- Pike Pole Storage Tubes (3)
- Ziamatic Electric Ladder Rack
- Custom Ladder Chute with Backboard and Hose Storage
- Whelen Freedom 4 Lightbar
