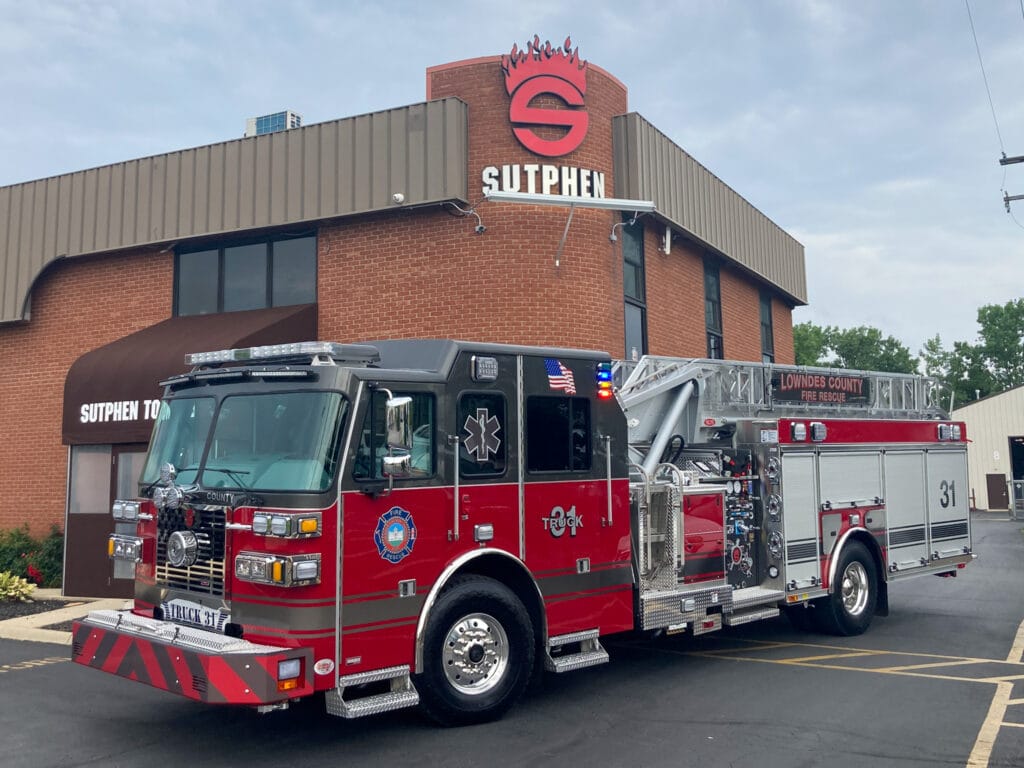

Delivery Date:
07/09/2024
Department Name:
Lowndes County Fire Department
Department City / State:
Valdosta, GA
Truck Type:

Dealer – Williams Fire Apparatus

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 0 ½”

TRAVEL LENGTH: 41’ – 8 ½”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 35,000 lbs
  • Engine: Cummins L9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 2 ½” Front Bumper, (1) 2 ½” Auxiliary Waterway
  • Monitor: TFT Y5-E11A-L Typhoon Elec w/ M-ERP-1500 Nozzle
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                 Sutphen

  • Huckbolt #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 230 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 16’R, 24’ 2-Section, 35’ 3-Section & 10’ F
  • Body: SAA-6, Left High / Right High Split / EXT / Trans

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Roto Ray Warning Light
  • Hi-Viz 3-Piece 12V LED Brow Light
  • Whelen Freedom 4 Lightbar
  • FireTech Guardian Elite 20K Scene Lights
