Delivery Date:
09/08/2018
Department Name:
Lindsay Fire Department
Department City / State:
Lindsay, OK
Truck Type:
WHEEL BASE: 221”
TRAVEL HEIGHT: 10’ – 0 ½”
TRAVEL LENGTH: 40’ – 6 ¼”

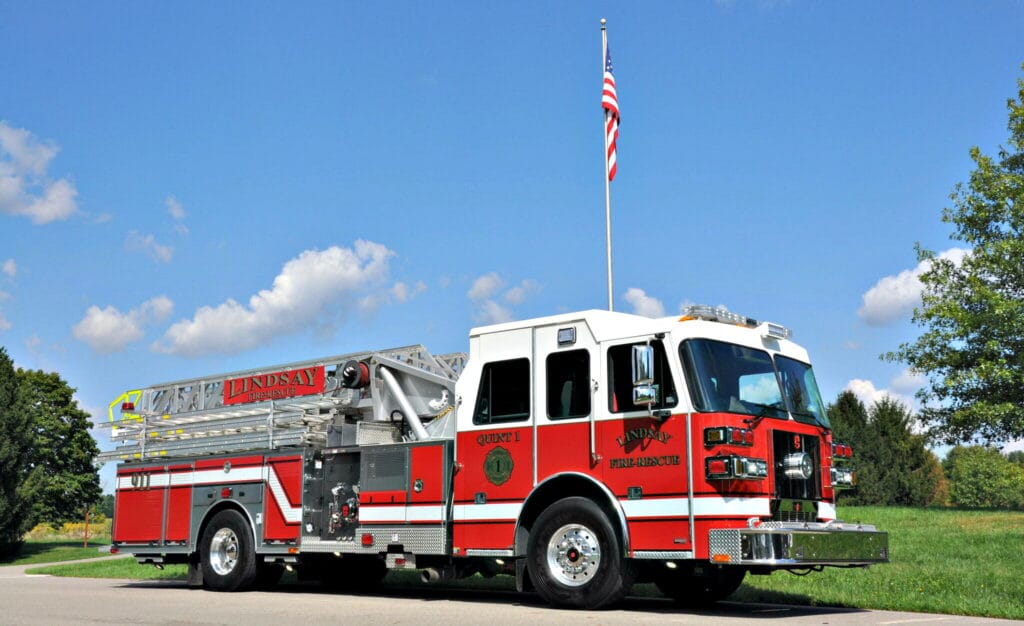

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins ISL 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

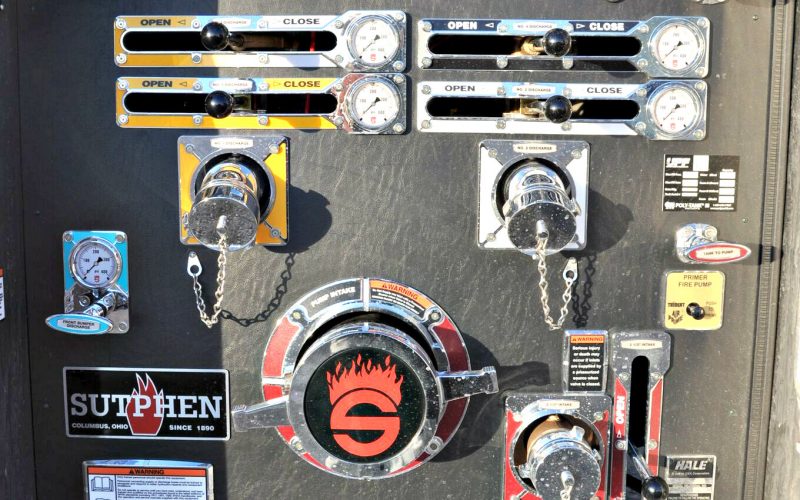

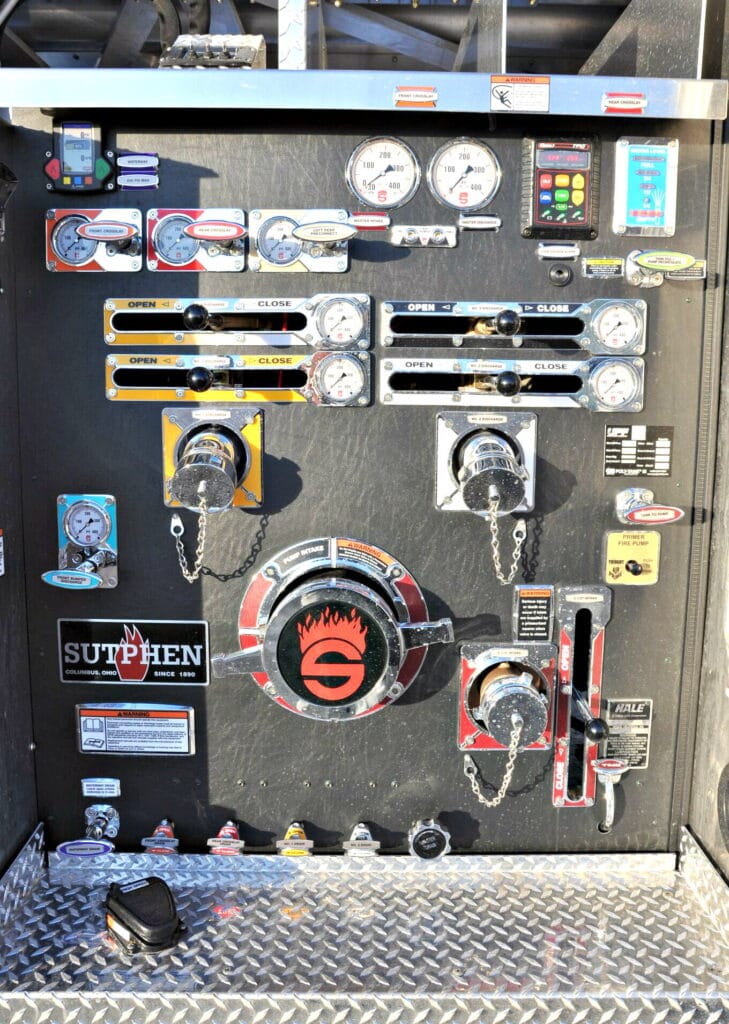

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
- Crosslay: (2) 2” Valve-Piping, 1 ½” Swivel
- Monitor, Akron 3480 Stream Master2 Electric RF with 5178 Nozzle
- 500-Gallon Water Tank
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- Rom Roll-Up Compartment Doors
- 75 cu. ft. of Total Compartment Space
- Alco-Lite Ladders Quint (85’, 16R’, 24’ 2-Section, 35’ 3-Section and 10’ Folding)
- Body SAA-4, Left High/ Right Intermed
OPTIONAL EQUIPMENT:
- 18” Bumper Extension, 4” Raised Lid, and Full-Width, Deep-Center Trough
- Safety Vision SV-CLCD0-70, Camera System
- Federal Q2B Siren
- Smart Power 6KW Generator
- Hannay Electric Cord Reel, 200’ (1)
- Pike Pole Storage Tube (3)
- Ziamatic SAC-44 Folding Wheel Chicks MTD
