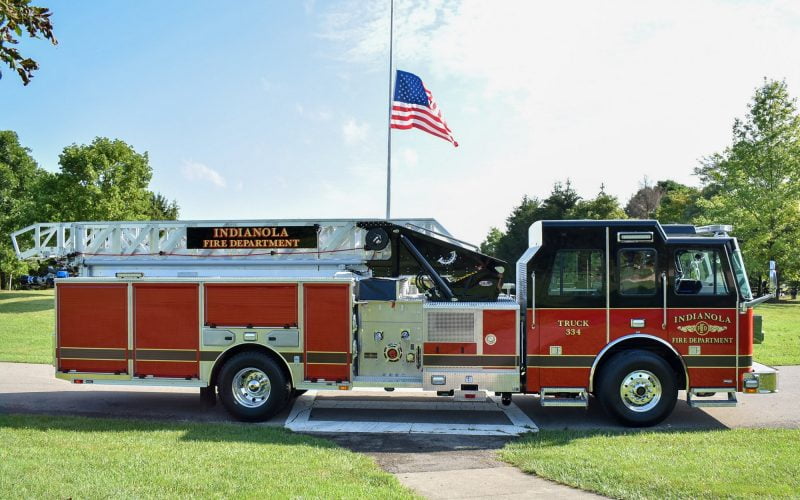

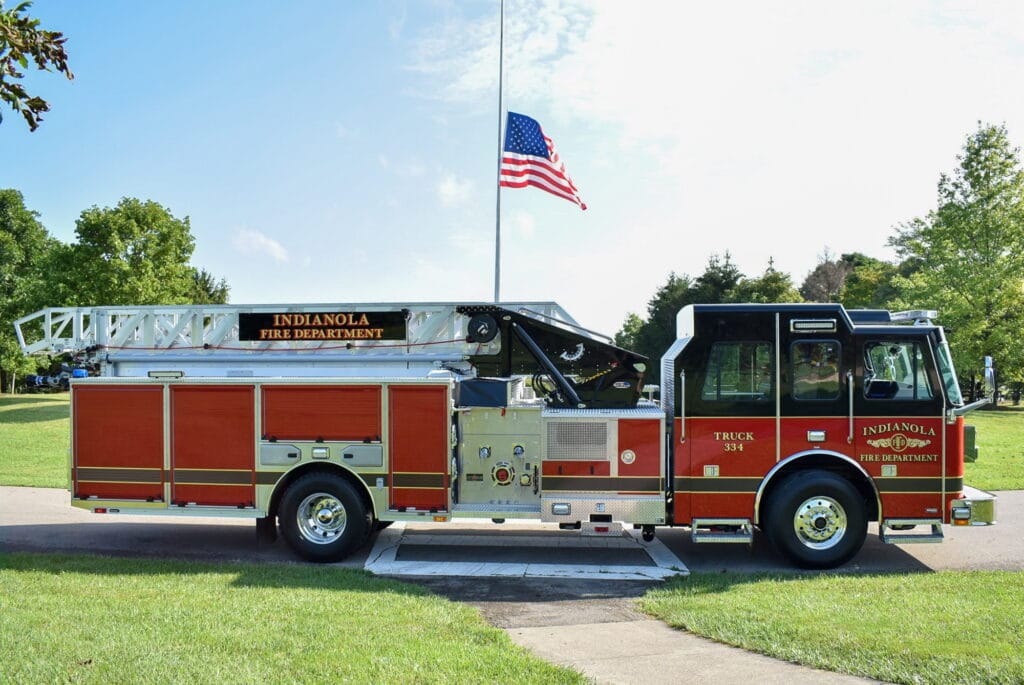

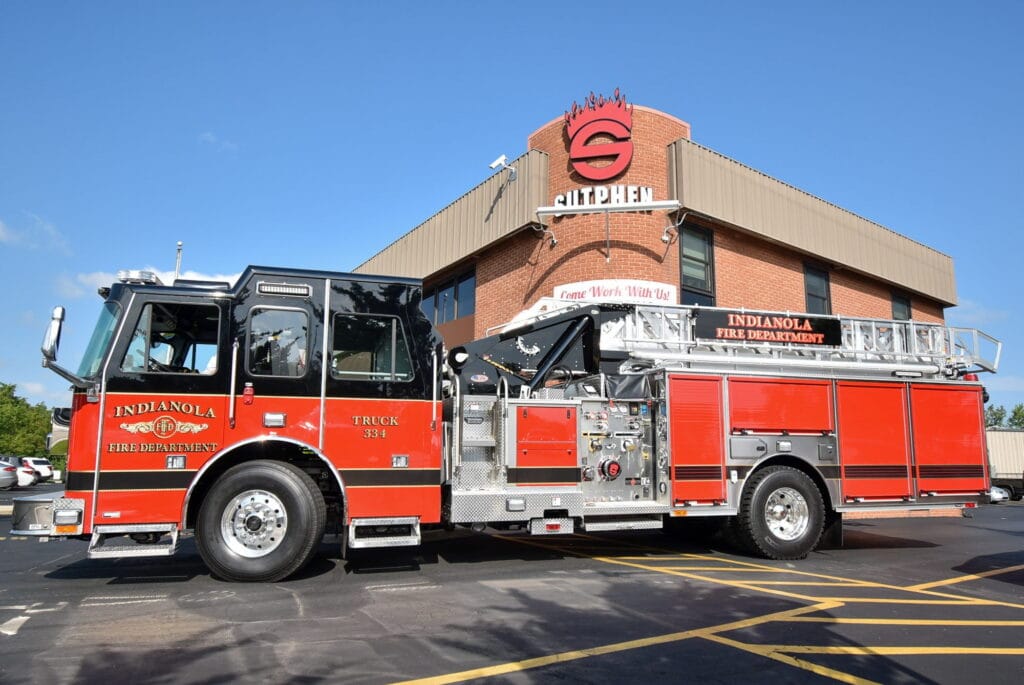

Sutphen Corporation – HS #6957
WHEELBASE: 221”
TRAVEL HEIGHT: 10’ – 0 ½”
TRAVEL LENGTH: 40’ – 7 ¾”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 23,000 lbs.
- Rear Axle and Suspension 31,000 lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Aux Discharge at Monitor
- Crosslay: (1) 1 ½” & (1) 2 ½”
- 300-Gallon Water Tank
- Monitor: TFT Y4-E11A-P-01 Monsoon Electric w/ M-ERP-1500 Nozzle

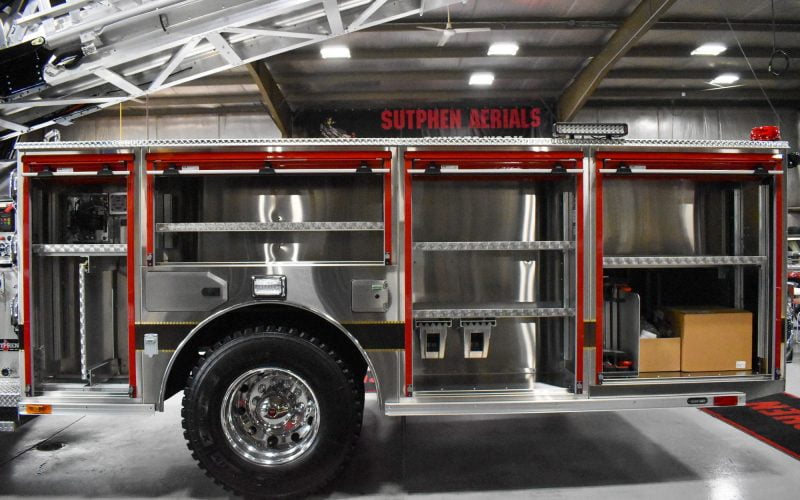

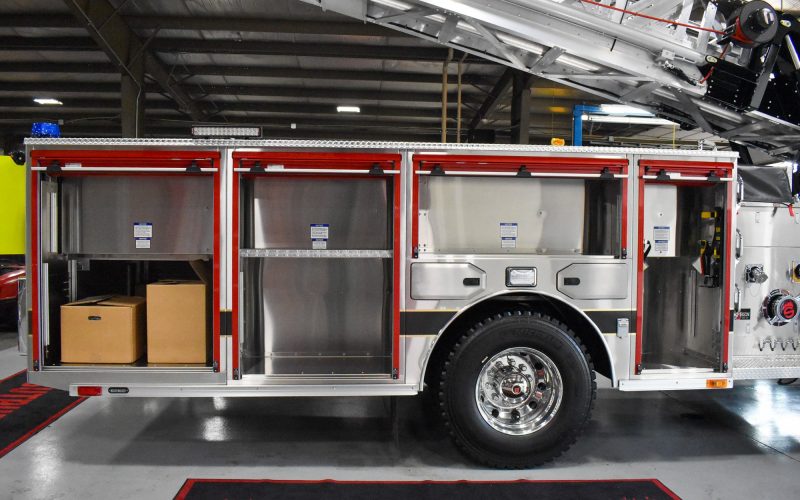

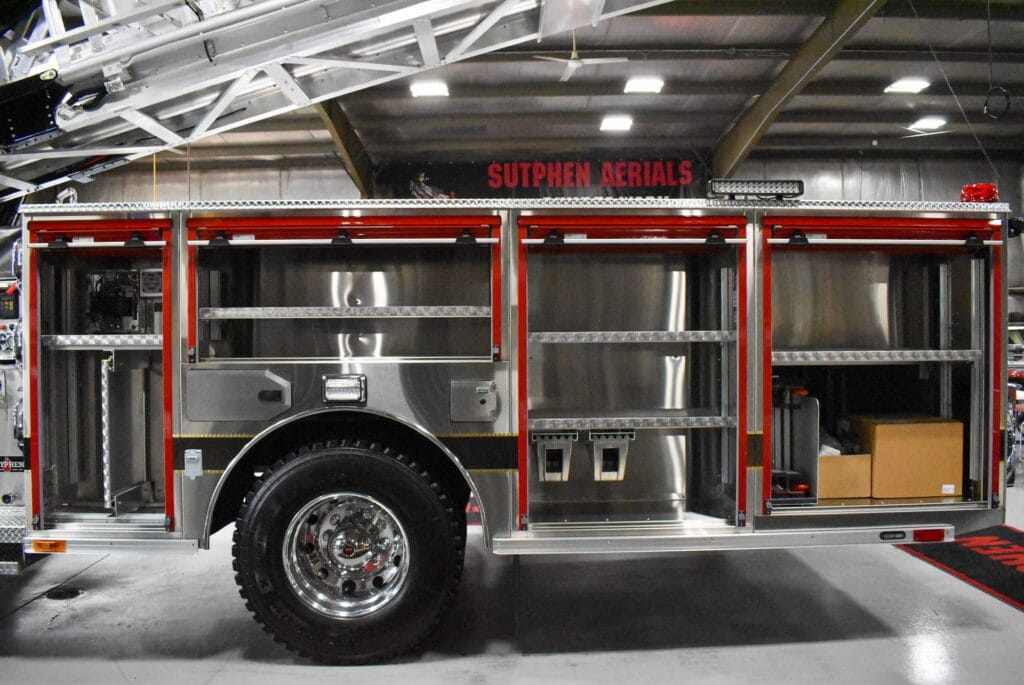

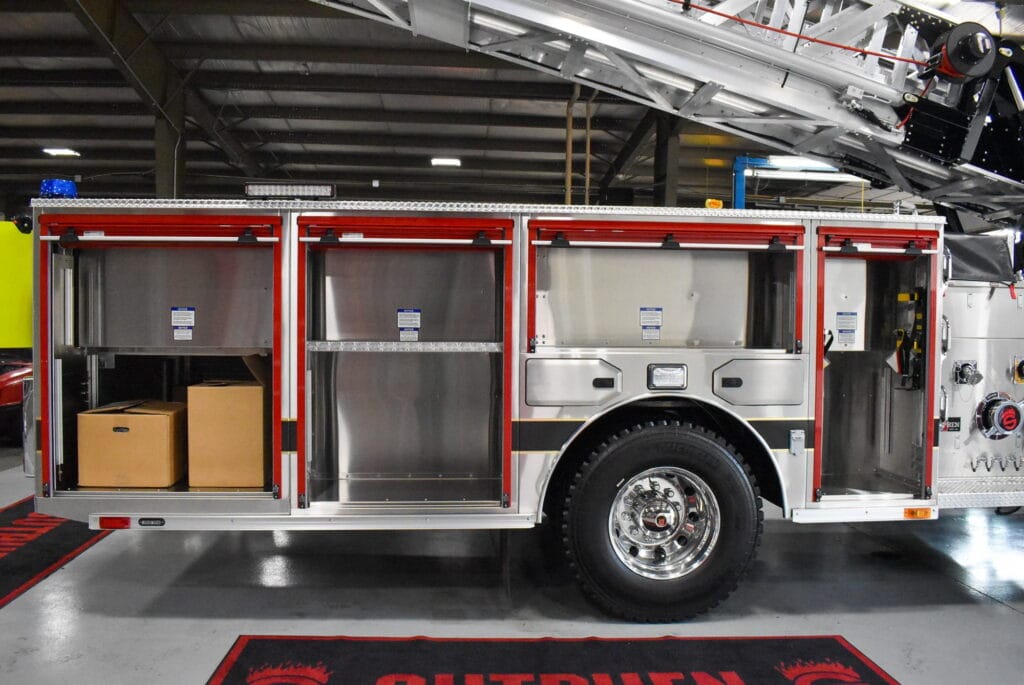

BODY: Sutphen
- #304 HuckBolted Stainless Steel
- ROM Roll Up Compartment Doors
- 221 cu. ft. Total Compartment Space
- Duo-Safety Ladder Compliment: (116’: (1) 35’ 3-Section, (1) 24’ 2-Section, (1) 16’ Roof Ladder, (1) 14’ Roof Ladder, (1) 10’ Folding Ladder, (1) 17’ Little Giant)
- Body: Custom, Extended Left High / Right High Split, Ladder Chute
ADDITIONAL EQUIPMENT:
- 12” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Two Cameras
- Intercom System: Firecom 5100D, Single Radio
- Hannay Electric Cord Reel, 150’ (1)
- Generator: Smart Power 6KW
- Pike Pole Storage Tubes (5)
- HiViz 3-Piece 12V LED Brow Light
- Whelen Freedom 4 Light
- Whelen M2 LED Traffic Advisor
- FireTech 12V LED FT-MB2.15 Recessed Scene Light
- FireTech 12V LED Boom Spotlights
- FireTech 12V LED Rear Work Lights
