Delivery Date:
02/16/2023
Department Name:

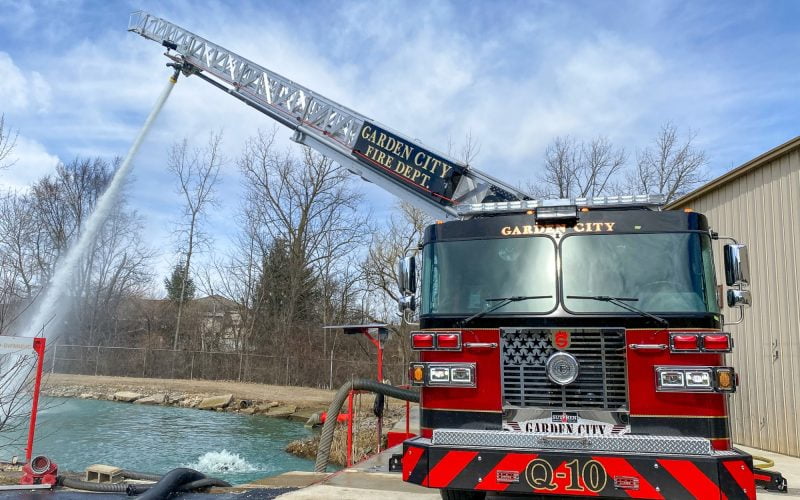

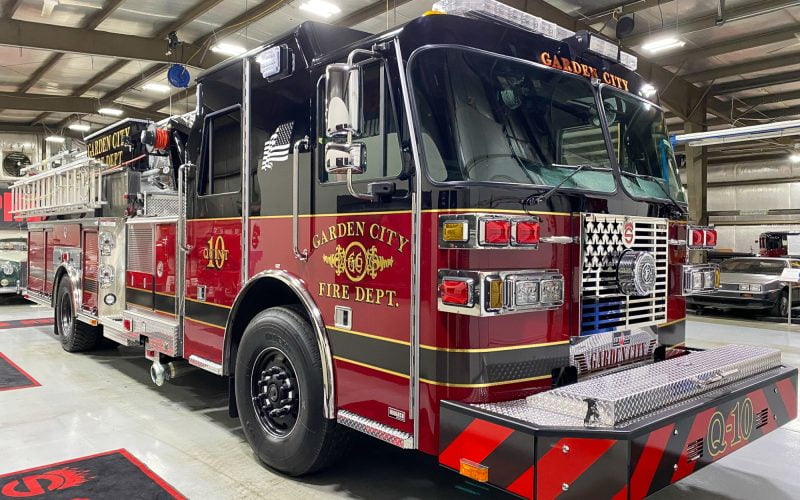

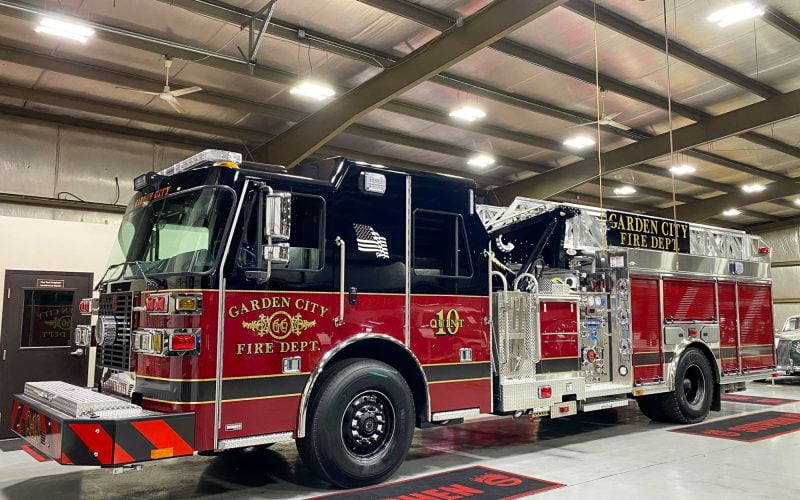

Garden City Fire Department
Department City / State:
Garden City, MI
Truck Type:
Sutphen Corporation – HS #7296
Dealer – Apollo Fire Equipment
WHEELBASE: 221”
TRAVEL HEIGHT: 10’ – 0 ½”
TRAVEL LENGTH: 41’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper, (1) 2 ½” Auxiliary Waterway
- Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
- Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
- 500-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- Amdor Roll Up Compartment Doors
- Over 190 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: 85’: 16’ R; 24’ 2-Section; 35’ 3-Section & 10’F
- Body: SAA-4, Left High / Right Intermed / Transverse
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Intercom System: Wired Firecom 5100D, Single Radio, 3 Position
- Hannay Electric Cord Reel, 175’ (1)
- Generator: Smart Power 6KW HYD
- Camera System: Brigade, Backeye 360
- Whelen Freedom 4 Lightbar
- Whelen PFH2 LED Brow Light
- Whelen TAM65 Traffic Advisor
- HI-VIZ 12V LED Scene Light
- FRC Spectra Max 120V LED Scene Light
