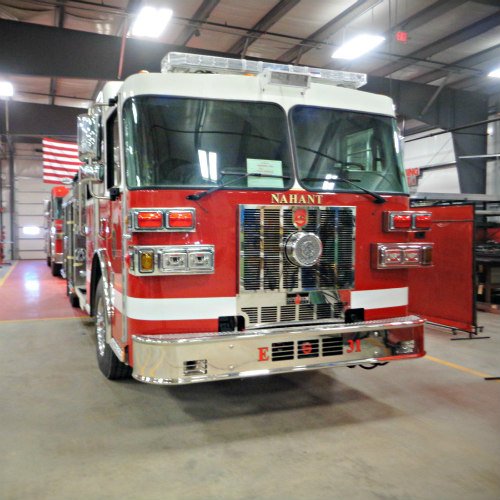

Sutphen Corporation – HS #6302
Dealer – Williams Fire Apparatus
WHEEL BASE: 221”
TRAVEL HEIGHT: 10’-0 ½”
TRAVEL LENGTH: 40’-6 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins X 15, 600 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS 4000
PUMP Hale
- QMAX-1500 GPM Single Stage
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side of Body, (1) 1 ½” Front Bumper
- Monitor: TFT Y4-E11A-P-01 Monsoon Electric with M-ERP-1500 Nozzle
- Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
- 500-Gallon Water Tank
- 40-Gallon Foam
- Elkhart Foam Supply System
BODY: Sutphen
- HuckBolted #304 Stainless Steel
- ROM Roll-Up Compartment Doors
- Over 192 cu. ft. Total Compartment Space
- Duo Safety Quint Ladder Compliment
- Left High/Right Intermed/Trans
OPTIONAL EQUIPMENT
- 18” Bumper Extension
- Federal Q2B
- 10KW Smart Power Generator
- Whelen Freedom 4 Lightbar
- Roto Ray
- Hannay Electric Cord Reel, 150’ (1)
- Pike Pole Storage Tubes (6)
