Delivery Date:
06/21/2022
Department Name:
Forest Park Fire Department
Department City / State:
Forest Park, GA

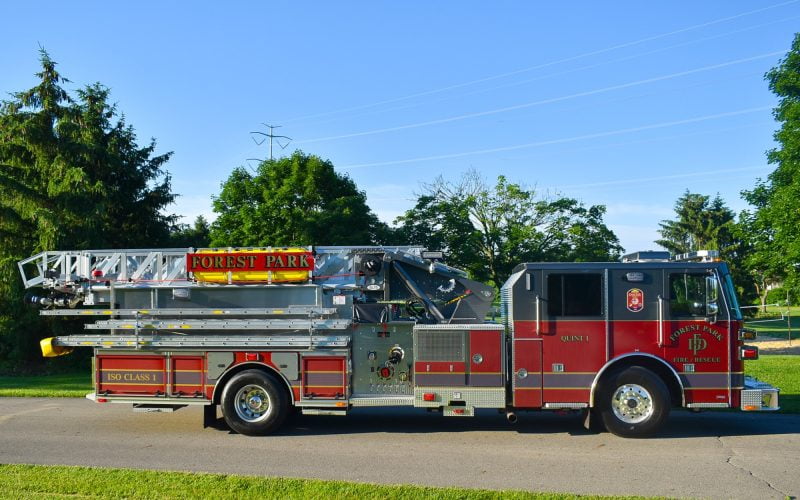

Truck Type:
Sutphen Corporation – HS #7125
Dealer – Williams Fire Apparatus
WHEELBASE: 232”
TRAVEL HEIGHT: 10’ – 0 ½”
TRAVEL LENGTH: 42’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a Flat Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-2000 GPM 6” Suction, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left, (1) 1 ½” Front Bumper
- Crosslays: (2) 2” Valve-Piping w/ 1 ½” Swivel
- 500-Gallon Water Tank
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- Amdor Roll-Up Compartment Doors, Painted
- Over 162 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: DRL-16’, 24’ 2-Section, 28’ 2-Section, 10’ Folding, 14’ Double Hook Roof
- Body: SAA-2, Left High / Right Low / Trans
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Hannay Electric Cord Reel, 175’ (1)
- Camera System: FRC Inview Trueview, Two Cameras (Wired)
- Intercom System: FRC ACT 2-Station
- Generator: 6KW Smart Power
- Whelen Freedom IV Lightbar
- FRC Spectra LED Brow Light
- Whelen M9 Scene Light
- Whelen 600 LED Quad Tail Lights
