Delivery Date:
09/12/2017
Department Name:
Fairfield Fire Department
Department City / State:
Fairfield, CT
Truck Type:
WHEEL BASE: 437 ¾”
TRAVEL HEIGHT: 10’- 0 ½”
TRAVEL LENGTH: 40’-6 ¼”
CHASSIS: Sutphen 62” extended cab with half 10” raised roof
- Four-Door, Five-Person Cab
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins ISX 12, 500 HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS4000

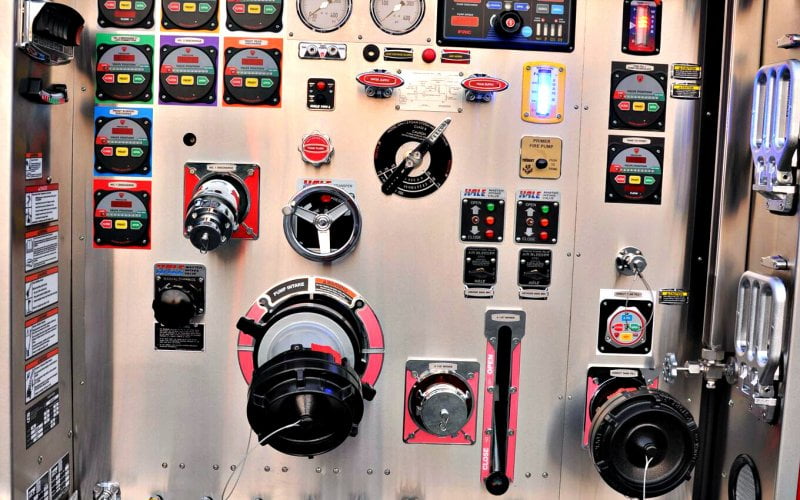

PUMP: Hale
- QTWO-1500 GPM
- Discharge: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 3” Rear, (1) 3” Front Bumper
- 75-Gallon Foam Tank
- Foam System: Fecon APH 1.5
- 500-Gallon Water Tank
BODY: Sutphen
- Stainless Steel
- Rom Roll-Up doors
- 75 cu. ft. total compartment space
- Duo-Safety Quint Ladder Compliment
- SAA-4 Left High/ Right Intermed
OPTIONAL EQUIPMENT:
- Traffic Advisor, Whelen
- Warning Lights, Whelen
- Intercom System, FR ACT 2-Station
- Monitor: Elkhart 7205 Cobra EXM w/ SM1500 E Nozzle
- Scene Lights, Whelen
- Ziamatic SAC-44 Folding Wheel Chocks MTD w/ SQCH-44H Holders
- Pike Pole Storage Tubes
