Department Name:
Birmingham Fire Department
Department City / State:
Birmingham, AL
Truck Type:

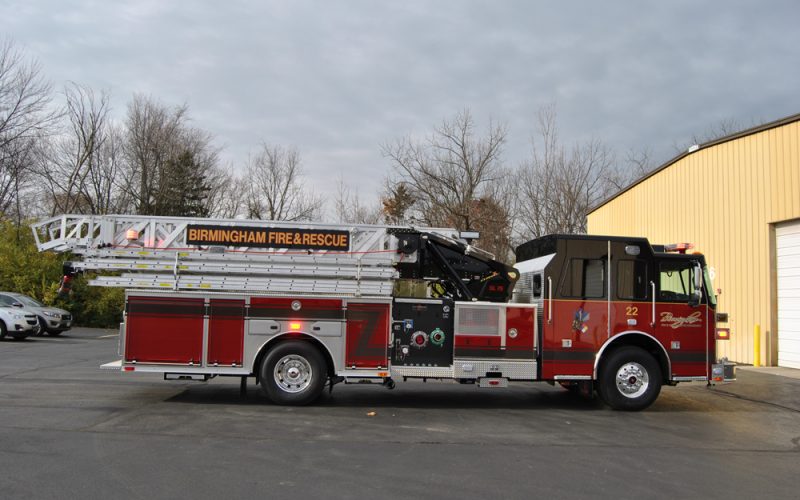

SL 75 Aerial Ladder (HS-5920)

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’-0 ½”

TRAVEL LENGTH: 39’-10 ¼”

CHASSIS: Sutphen 62” cab with half 10” raised roof

  • Four-door, six-person cab
  • Front Axle and Suspension 23,000 lbs
  • Front Axle and Suspension 31,000 lbs
  • Engine: Cummins ISL 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

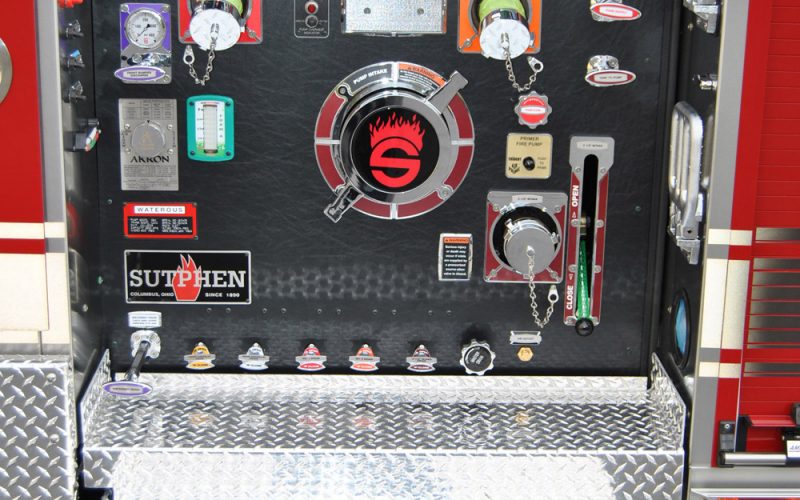

PUMP: Waterous

  • CSU-1500 GPM
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper
  • 30-Gallon Foam Tank
  • Akron 125 GPM 3126 By-Pass System
  • 500-Gallon Water Tank

BODY: Sutphen

  • Stainless Steel

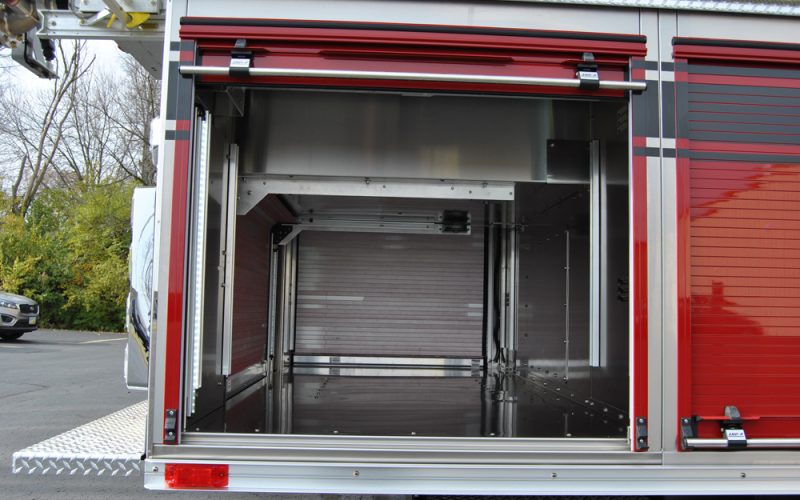

  • 75 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment
  • Folding Ladder Storage IPO Pike Pole Storage, Driver Side

OPTIONAL EQUPIMENT:

  • Rear View Camera
  • 12” Bumper
  • 10KW Harrison Generator
  • Hannay Electric Cord Reel with 200’
  • Warning Lights, Whelen
  • Federal Q2B
  • Monitor” Akron 3480 Stream Master2
