SL 75 Aerial (HS-5921)
WHEEL BASE: 221”
TRAVEL HEIGHT: 10’-0 ½”
TRAVEL LENGTH: 39’-10 ¼”
CHASSIS: Sutphen 62” cab with half 10” raised roof
- Four-door, six-person cab
- Front Axle and Suspension 23,000 lbs
- Front Axle and Suspension 31,000 lbs
- Engine: Cummins ISL 9, 450 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000

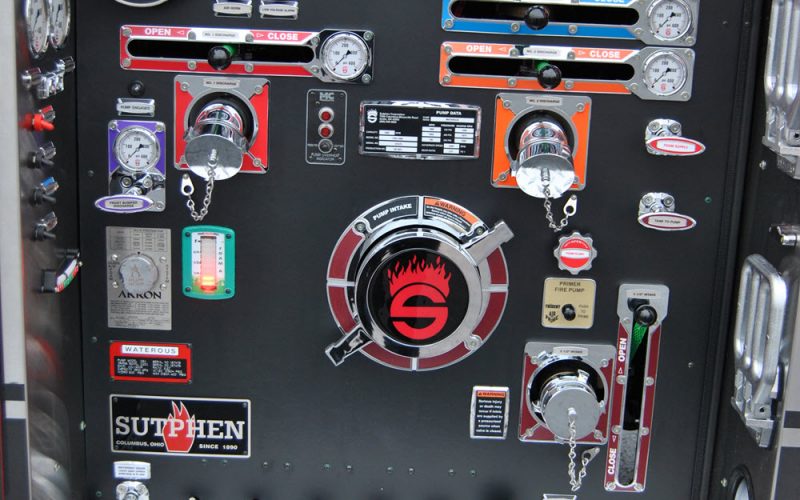

PUMP: Waterous
- CSU-1500 GPM
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper
- 30-Gallon Foam Tank
- Akron 125 GPM 3126 By-Pass System
- 500-Gallon Water Tank
BODY: Sutphen
- Stainless Steel

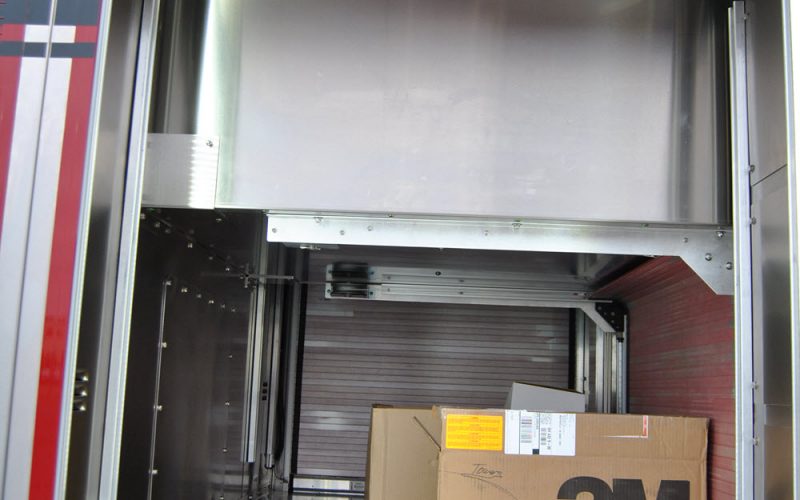

- 75 cu. ft. Total Compartment Space

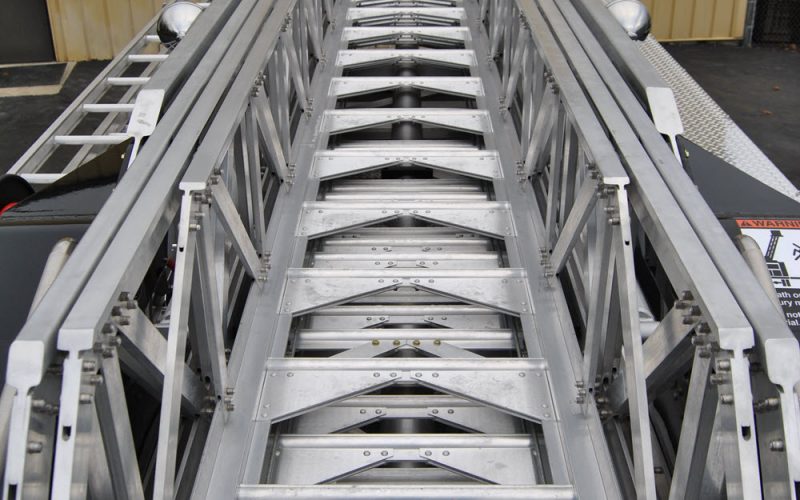

- Alco-Lite Quint Ladder Compliment
- Folding Ladder Storage IPO Pike Pole Storage, Driver Side
OPTIONAL EQUPIMENT:
- Rear View Camera
- 12” Bumper
- 10KW Harrison Generator
- Hannay Electric Cord Reel with 200’
- Warning Lights, Whelen
- Federal Q2B
- Monitor” Akron 3480 Stream Master2
