Delivery Date:
12/02/2022
Department Name:
Opelika Fire Department
Department City / State:
Opelika, AL
Truck Type:

Sutphen Corporation – HS #7193

Dealer – Williams Fire Apparatus

WHEELBASE: 242”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 44’ – 2”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 48,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Delco-Remy, 430 AMP
  • Transmission: Allison Gen 5, EVS4500

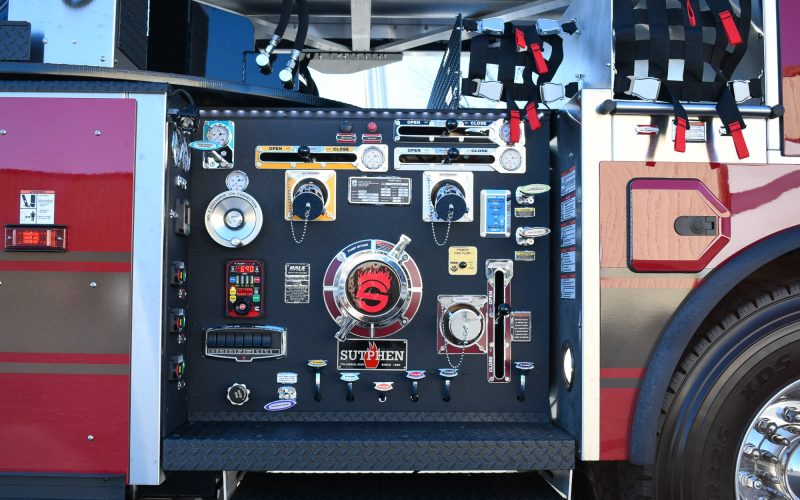

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel, (1) 2 ½” Crosslay Above Pump Module
  • Monitor: TFT Y5-E11A-L Typhoon Electric w/ M-ERP-1500 Nozzle
  • 400-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolted #304 Stainless Steel
  • Amdor Roll Up Compartment Doors
  • Over 265 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: 14’, 16’ (2), 28’ 2-Section, 35’ 3-Section & 10’ F
  • Body: SL 100-2, Left High / Right High Ladders Enclosed

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview 360HD w/ Built-In DVR
  • Intercom System: FRC ACT 2-Station
  • Generator: Smart Power, 6KW HR HYD
  • FireTech 3-Piece LED Brow Light w/ ICC Lights
  • Whelen Freedom 4 Lightbar
  • FRC Spectra 20K 120V LED Tele Scene Light
  • FireTech Ladder Lighting
  • FRC Sectra 900 12V LED Scene Light
  • FRC Spectra 120V 15K LED Scene Lights (2)
