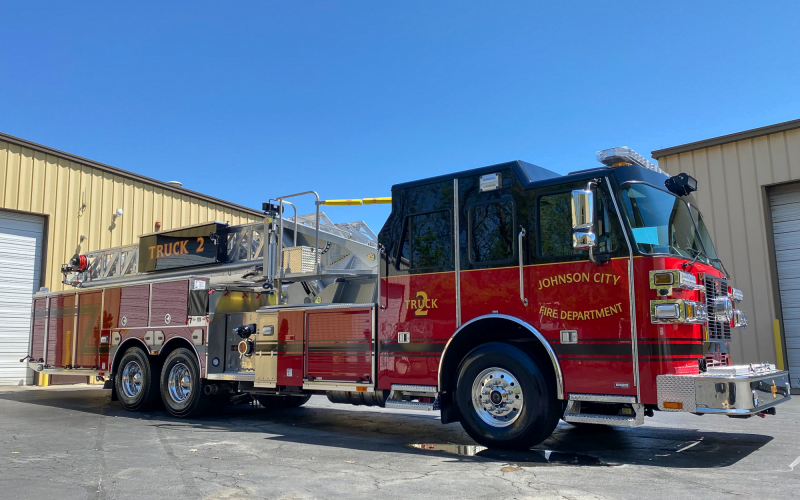

Delivery Date:
05/10/2022
Department Name:
Johnson City Fire Department
Department City / State:
Johnson City, TN
Truck Type:
Sutphen Corporation – HS #7211
Dealer – Southeast Fire
WHEELBASE: 242”
TRAVEL HEIGHT: 10’ – 2”
TRAVEL LENGTH: 44’ – 1 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 48,000 lbs
- Engine: Cummins X 12 500HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
- Crosslay: (2) (1) 2” Valve-Piping 1 ½” Swivel, (1) 2 ½” Valve-Piping 2 ½” Swivel
- 300-Gallon Water Tank
BODY: Sutphen
- Huckbolted #304 Stainless Steel
- ROM Roll Up Compartment Doors
- Over 260 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: 105’
- Body: SL 100-2, Left High / Right High
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade Three Camera System
- Intercom System: FRC ACT 2-Station
- Hannay Electric Cord Reel, 150’ (1)
- Generator: Smart Power, 6KW HYD
- Whelen PFH2 12V LED Brow Light
- Whelen Freedom IV 92” Lightbar
- Whelen PFP2 120V LED Tripod Light
- Opticom GTT795 Installed in Lightbar
MONITOR:
- Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
