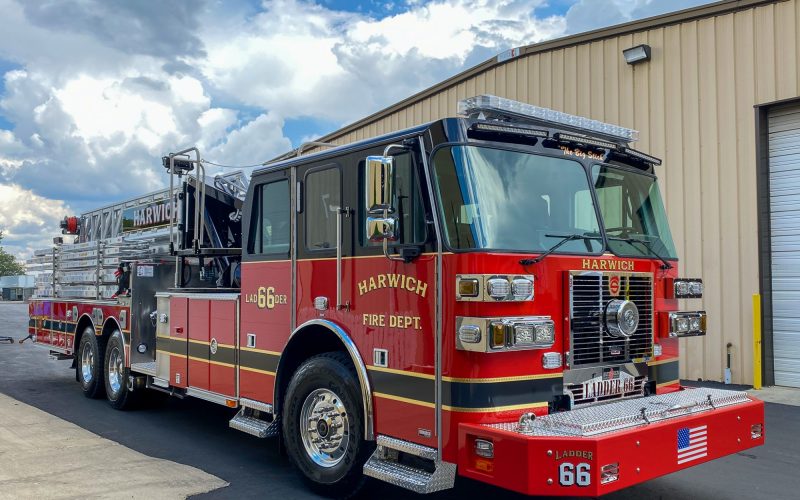

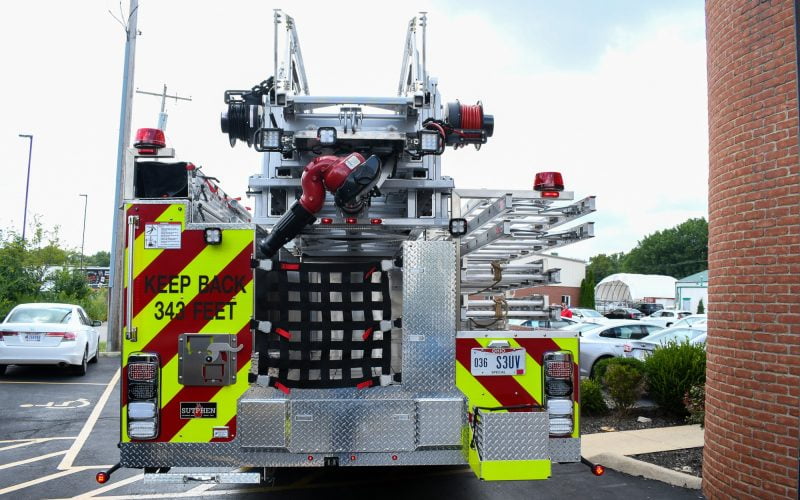

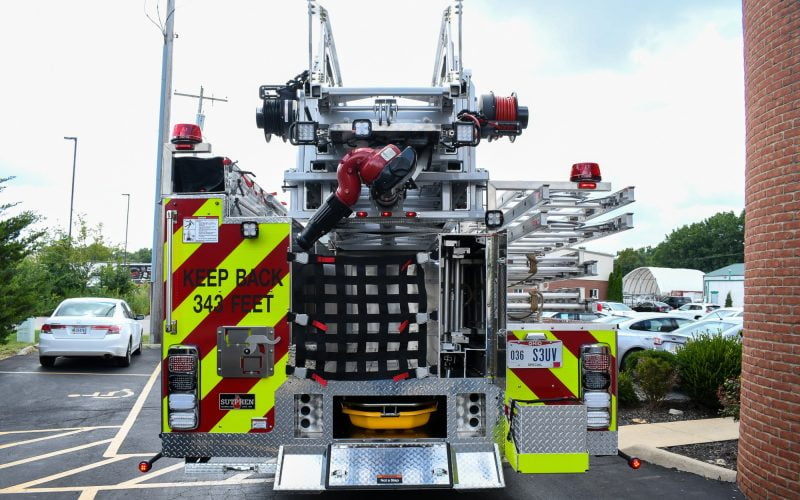

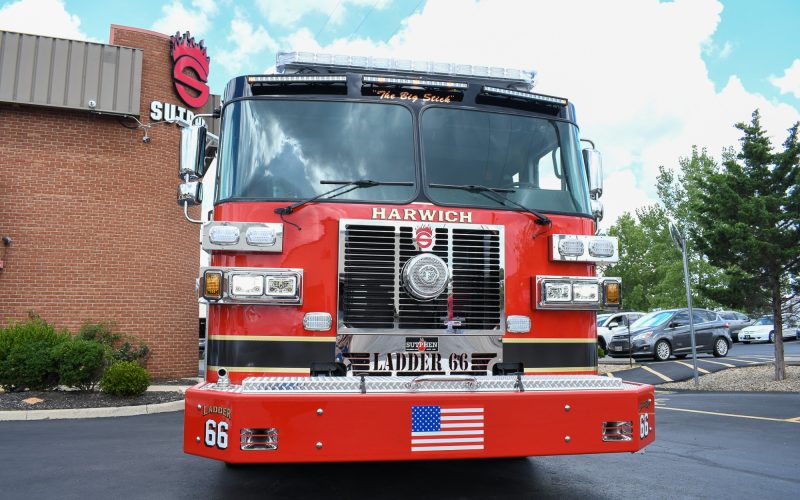

Sutphen Corporation – HS #7198
WHEELBASE: 230”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 44’ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with Flat Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 48,000 lbs
- Engine: Cummins X 12 455HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000

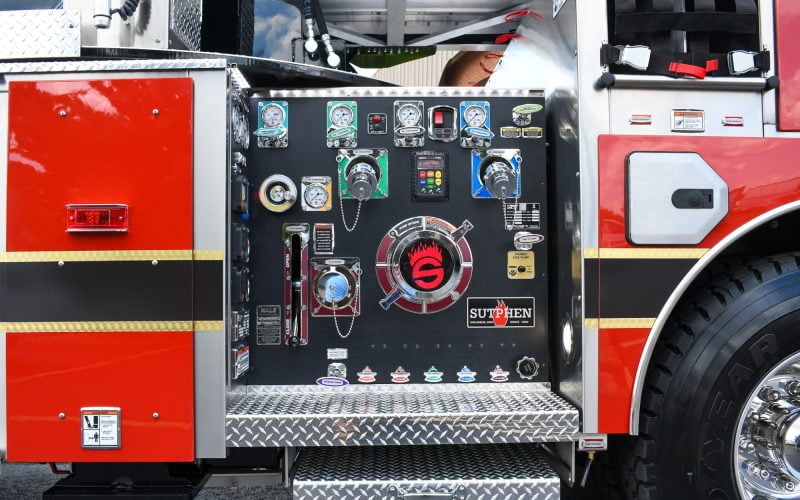

PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
- Crosslay: (2) Crosslays, 2” Valve-Piping 1 ½” Swivel
- 450-Gallon Water Tank
BODY: Sutphen
- Huckbolted #304 Stainless Steel
- Amdor Roll Up Compartment Doors
- Over 170 cu ft. Total Compartment Space
- Duo-Safety Ladder Package: (1) 10’ Folding, (1) 14’ Roof, (1) 16’ Roof, (2) 18’ Roof, (2) 28’ 2-Section, (1) 35’ 3-Section
- Body: SL 100-1, Left High / Right Low
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Intercom System: FRC ACT 2-Station
- Whelen Freedom IV 72” Lightbar
- Hi-Viz 3-Piece 12V LED Brow Light
- Whelen PFH2 12V Scene Light Telescoping
- Whelen M2 LED Tip Lights
- Whelen Pioneer Micro Aerial Spotlights
MONITOR:
- Monitor: Akron Stream Master II w/ Stream Shaper and TFT Stacked Tips
