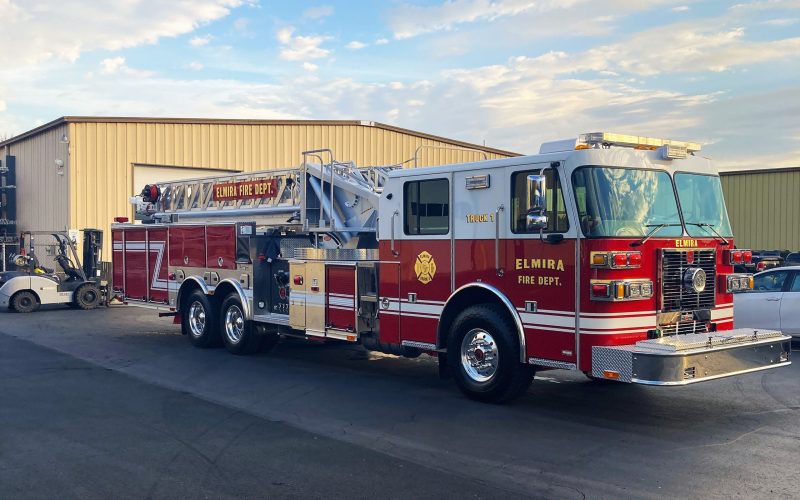

Delivery Date:
10/30/2024
Department Name:
Elmira Fire Department
Department City / State:
Elmira, NY
Truck Type:

Dealer – Vander Molen Fire Apparatus Sales and Service

WHEELBASE: 253”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 46’ – 1”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs w/ (4) 56” Leafs
  • Rear Axle and Suspension 48,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 6, EVS4500

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 2 ½” Auxiliary Waterway
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                 Sutphen

  • Huckbolted #304 Stainless Steel
  • Mixed Amdor Roll-Up and Hinged Compartment Doors
  • Over 220 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 119’ 14’, 16’, 16’, 28’ 2-Section, 35’ 3-Section & 10’ Folding
  • Body: SL100-2 – Left High / Right High Ladders Enclosed

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Camera System: FRC, Inview Trueview, Single Camera (Wired)
  • Generator: Harrison, MCR 6KW Hyd Aerials
  • Whelen Freedom 4 72” Lightbar
  • FRC Spectra 20K 12V LED Scene Light
  • FireTech 12V LED Aerial Spotlights
  • Whelen McFled LED Rear Beacons

MONITOR:

  • TFT Y5-E11A-L Typhoon Elec W/M-ERP-1500 Nozzle
