WHEEL BASE: 236”
TRAVEL HEIGHT: 11’-6”
TRAVEL LENGTH: 47’-7”
CHASSIS: Sutphen 62” extended cab with half 10” raised roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins ISX 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000

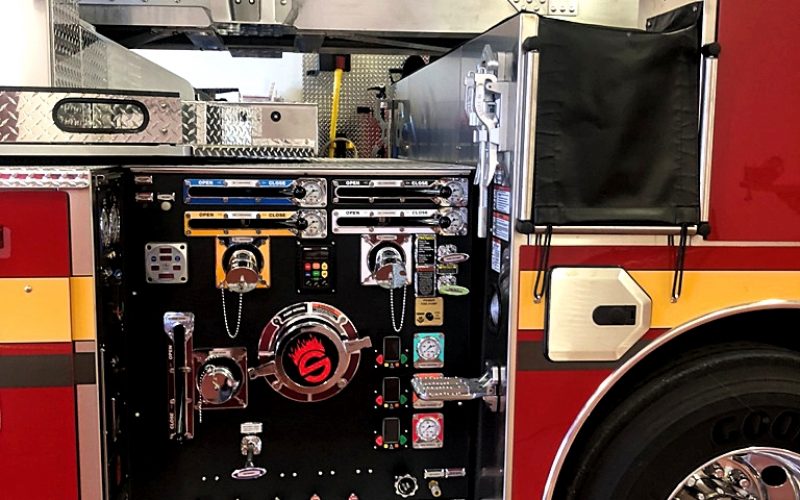

PUMP: Hale
- QMAX-1500 GPM
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
- 300-Gallon Water Tank
BODY: Sutphen
- Stainless Steel
- Amdor Roll-Up Doors
- 293 cu. ft. Total Compartment Space
- Alco-Lite SPH
- SPH-3, Left 56” Right 56”
OPTIONAL EQUIPMENT:
- 10KW Smart Power Generator
- Hannay Electric Cord Reel, 200’
- Intercom System, FRC ACT 2-Station
- Pike Pole Storage Tubes
- Federal Q2B Siren
- 24” Bumper
- Ladder Chute
- Ziamatic SAC-44 Folding Wheel Chocks
- Warning Lights, Whelen
- Duo-Safety 10’ Folding Attic Ladder
- Parapet Ladder, SPH 100
MONITORS:
- Driver Side Monitor: Akron 3473, Gemini Manual 1000 GPM
- Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
- Driver Side Nozzle: Akron 2499 and 3488 Pipe
- Officer Side Nozzle: Akron 2499 and 3488 Pipe
