Delivery Date:
07/09/2019
Department Name:
Durham Fire Department
Department City / State:
Durham, NC
Truck Type:

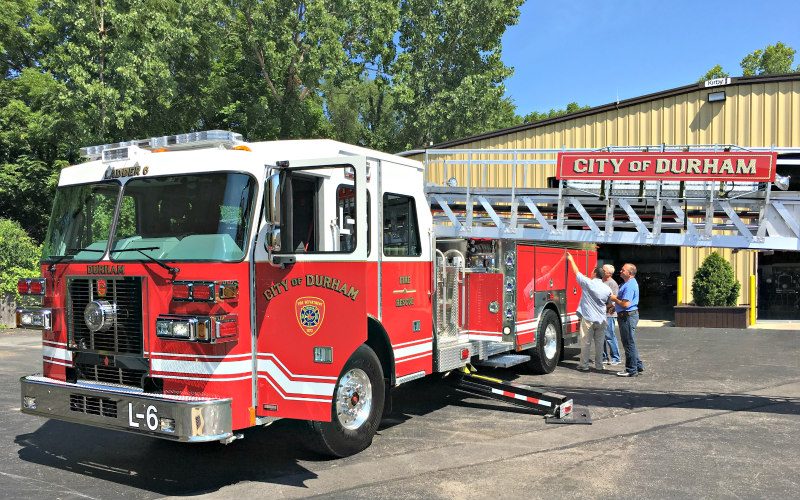

Sutphen Corporation – HS #6389

Dealer – Stevens Fire Equipment

WHEEL BASE: 221”

TRAVEL HEIGHT: 10 – 10”

TRAVEL LENGTH: 38’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12, 455 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
  • Crosslays: (2) Crosslays, 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 162 cu. ft. Total Compartment Space

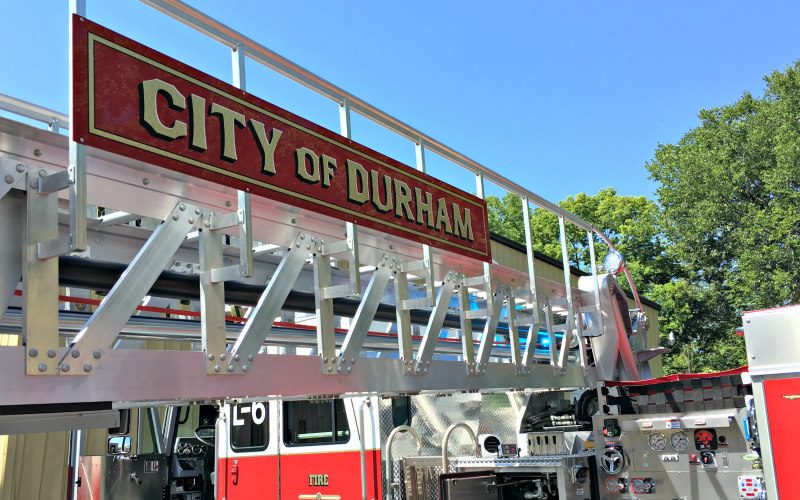

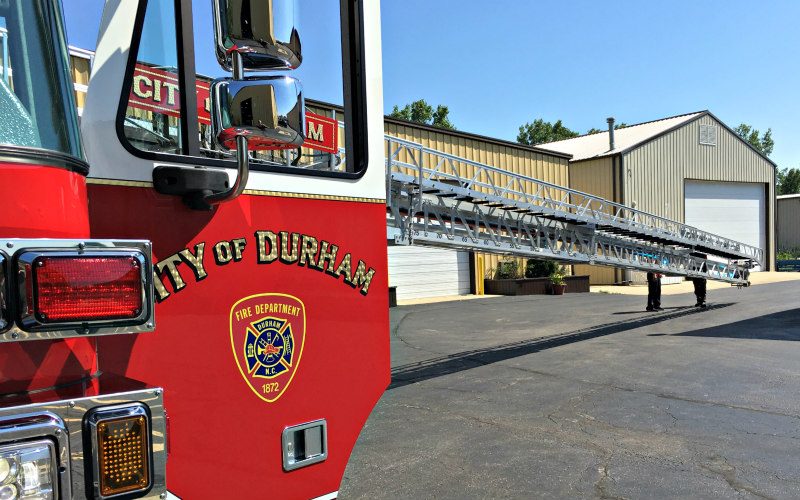

  • Alco-Lite Aerial Ladder Compliment (115’: 14’C, 16’R, 16’R, 24’ 2-Section, 35’ 3-Section & 10’ F)
  • SAA-1: Left High / Right Low

ADDITIONAL EQUIPMENT:

  • 6” Polished Stainless Steel Bumper Extension
  • 6KW Smart Power Generator
  • Akron Electric Cord Reel, 150’ (1)
  • Pike Pole Storage Tubes (6)
  • Federal Q2B Siren, Grille Mount
  • Whelen PFP2 12V LED Brow Light
  • WHelen PFP2 12V LED Scene Light
  • Whelen Freedom 4 Lightbar
