Delivery Date:
10/17/2017
Department Name:

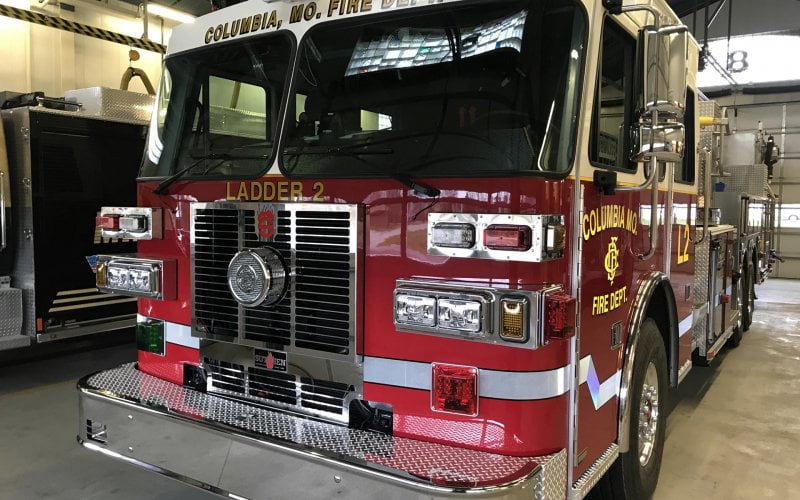

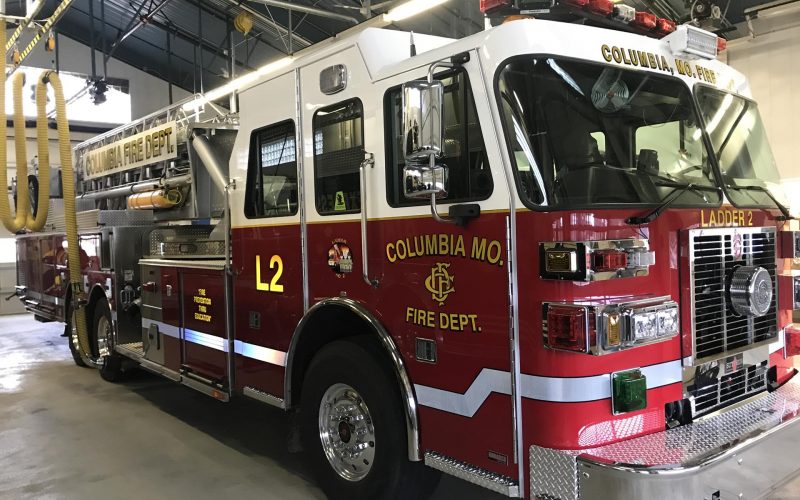

Columbia Fire Department
Department City / State:
Columbia, MO
Truck Type:
WHEEL BASE: 221”
TRAVEL HEIGHT: 10’-9”
TRAVEL LENGTH: 39’-6”

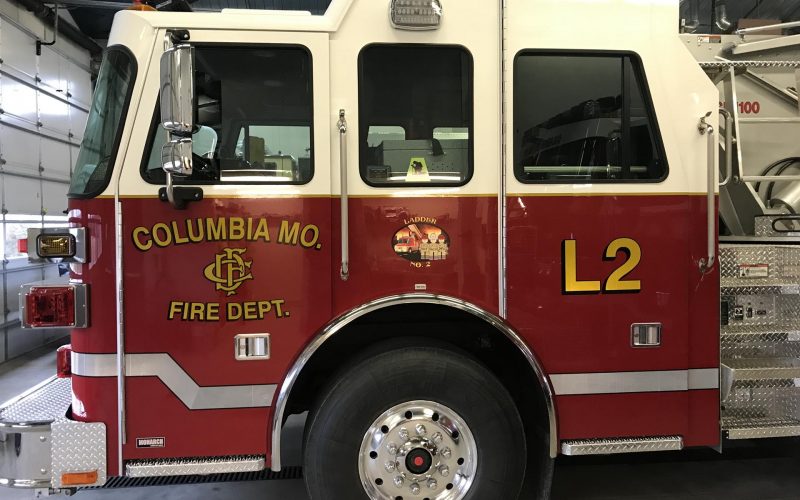

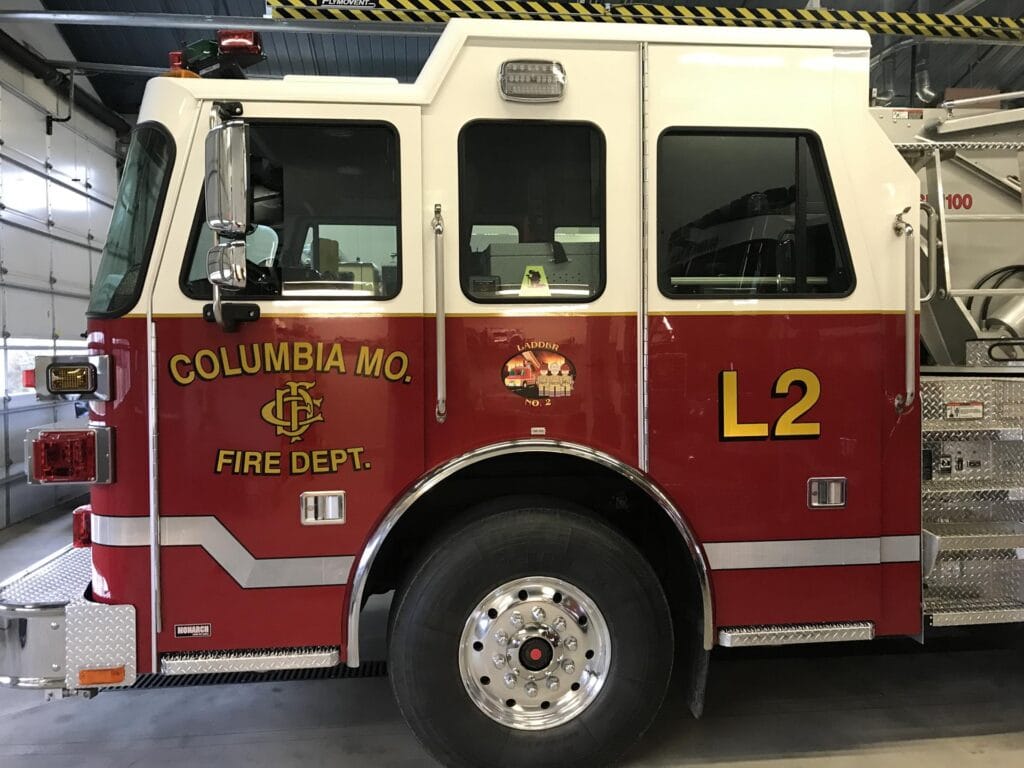

CHASSIS: Sutphen 62” extended cab with half 10” raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins ISX 12, 500HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000

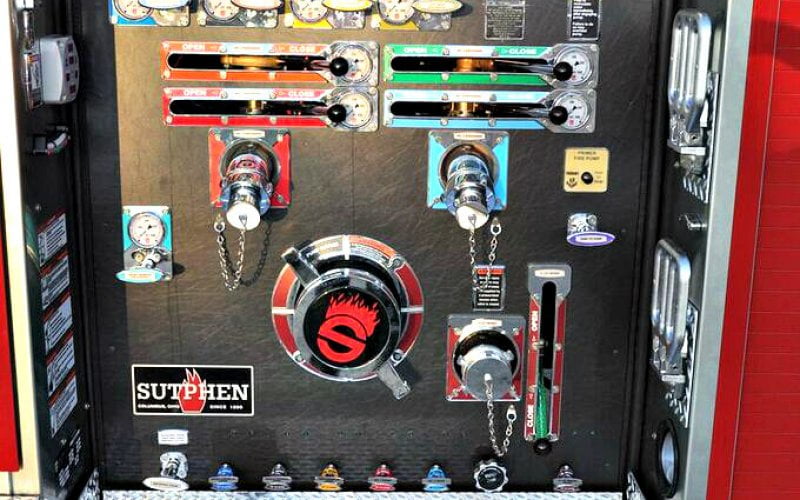

PUMP: Hale
- QMAX-2000 GPM
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper
- 500-Gallon Water Tank
BODY: Sutphen
- Stainless Steel
- Rom Roll-Up Compartment Doors
- 73 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Duo-Safety 10’ Folding Attic Ladder
- Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
- Intercom System, FRC ACT 2-Station
- Ziamatic SAC-44 Folding Wheel Chocks
- 8KW Smart Power Generator
- Hannay Electric Cord Reel, 200’
- Traffic Advisor, PowerArc PSK-6Y
- Scene Lights, Whelen
- Federal Q2B
- 24” Bumper
