Delivery Date:
05/01/2018
Department Name:
Rural Ridge VFD
Department City / State:
Rural Ridge, PA

WHEEL BASE: 225”

TRAVEL HEIGHT: 10’ 6”

TRAVEL LENGTH: 35′ 11”

CHASSIS:              Sutphen 73” Cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 23,000 Lbs.
  • Rear Axle and Suspension: 48,000 Lbs.
  • Engine: Cummins ISX 12 500HP
  • Alternator: Niehoff 430 AMP
  • Transmission: Allison Gen 5

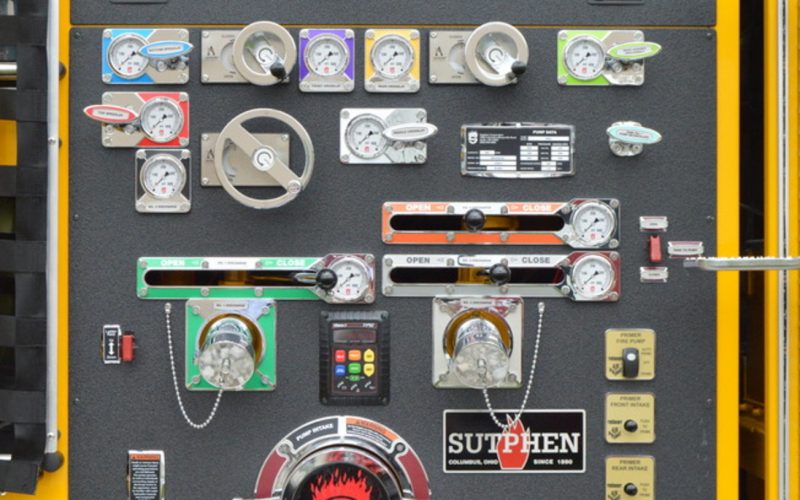

PUMP:                  Hale

  • QMAX-2000 6” Suction Single Stage
  • Discharge: (2) 2.5” Left, 4” Right, 2.5” Right, 2.5” Front/Right of Main Hose bed,
  • 2,500 Gallon Water Tank

BODY:                   Sutphen

  • 147 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Sleeve Tank Above the Dump to Hold Ground Ladders
  • Narrow Upper Compartment on Right Body Side
  • Pull Out Step Below Rear Tailboard
  • Ground Ladders Stored in Tank
  • Individual Whelen 600 LED Amber Mounted Below Rear Treadplate Step
  • Frame Rail to be 13” Domex
  • Exterior Compartments, Side of Exit Cab, Full Height
  • Bumper to be Full Wrap Channel Steel with Recessed Areas on Sides for Lights
  • Storage Well Cover 2” Nylon Webbing in Lattice Mesh Pattern
