WHEEL BASE: 225”
TRAVEL HEIGHT: 9’-8”
TRAVEL LENGTH: 35’-5”
CHASSIS: Sutphen 73” extended cab with half 10” raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Niehoff, 360 HP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM
- Discharge: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (2) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- 25-Gallon Foam Tank
- FoamPro 2001, 2.6 GPM
- 750-Gallon Water Tank

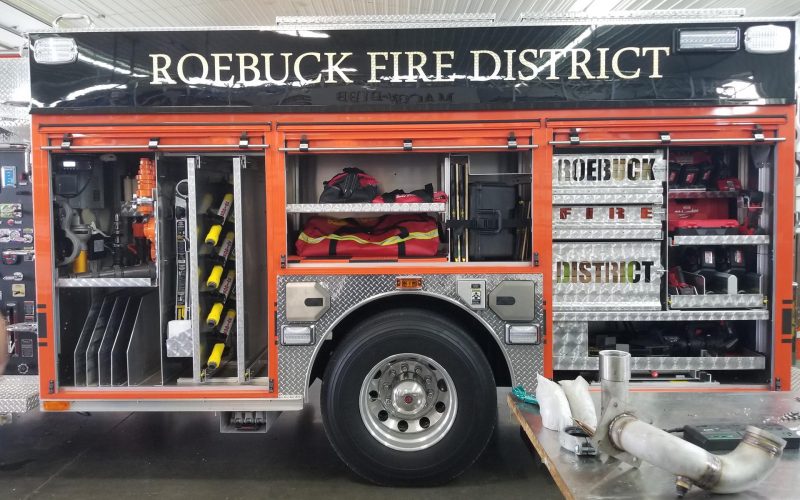

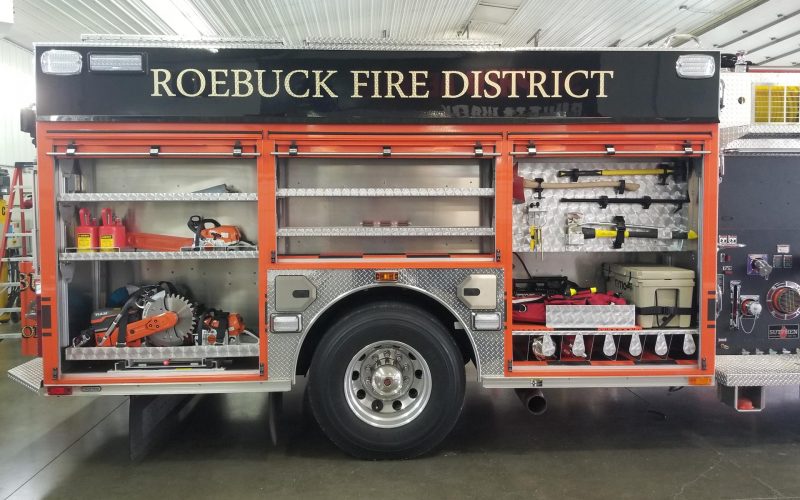

BODY: Sutphen
- Aluminum
- Amdor Roll-Up Doors

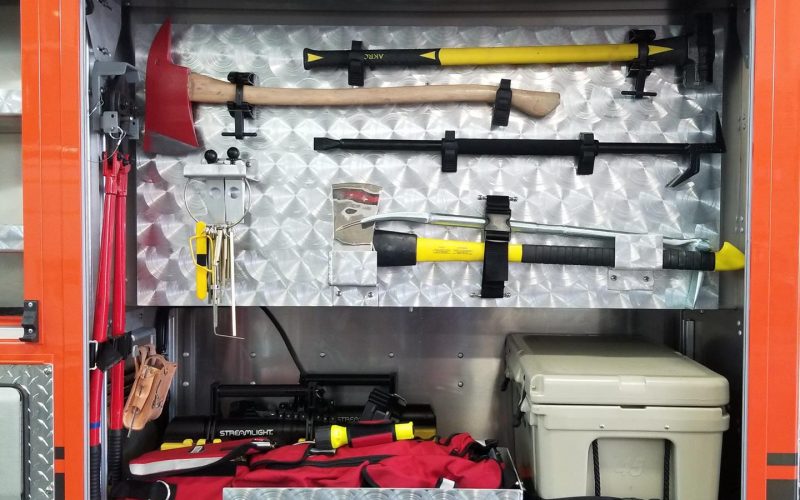

- 305 cu. ft. Total Compartment Space
- Body Ladder Chute
OPTIONAL EQUIPMENT:
- 6KW Harrison Generator
- Hannay Electric Cord Reel, 200’
- Pike Pole Storage Tubes
- 24” Bumper
- Camera System, Safety Vision SV-CLCD0-70
- Roto-Ray Warning Light
