Delivery Date:
02/01/2018
Department Name:
Rockingham County Fire Rescue
Department City / State:
Harrisonburg, VA

WHEEL BASE:  198.5″

TRAVEL HEIGHT: 9′-9″ ±2″

TRAVEL LENGTH: 32′-8″

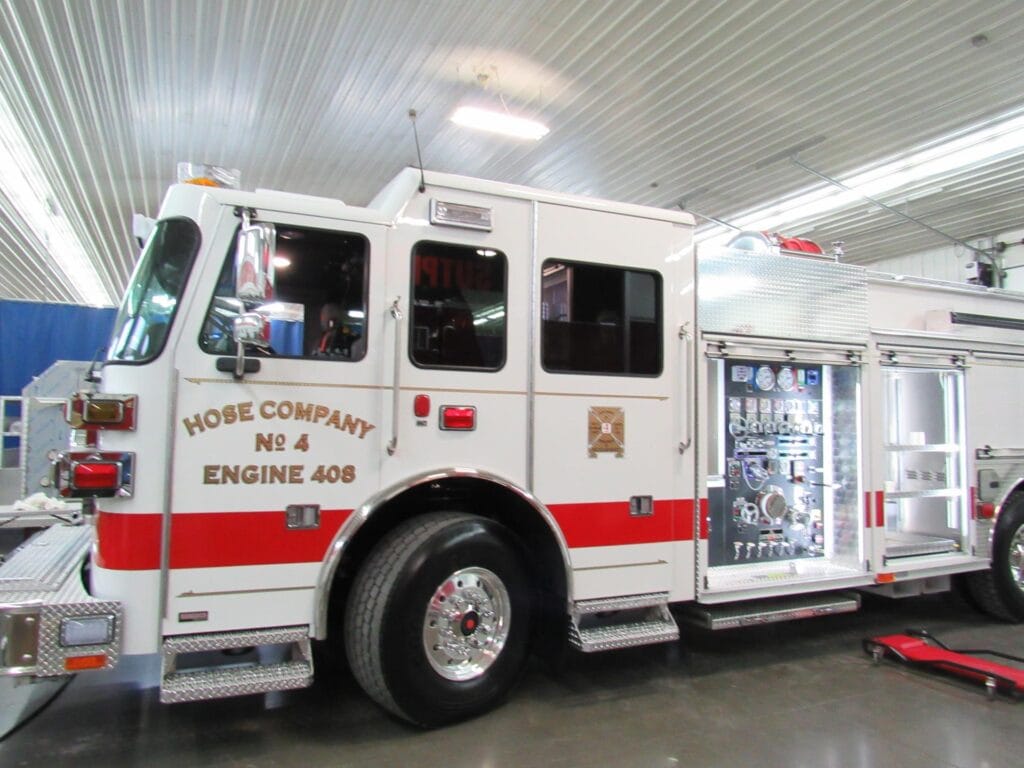

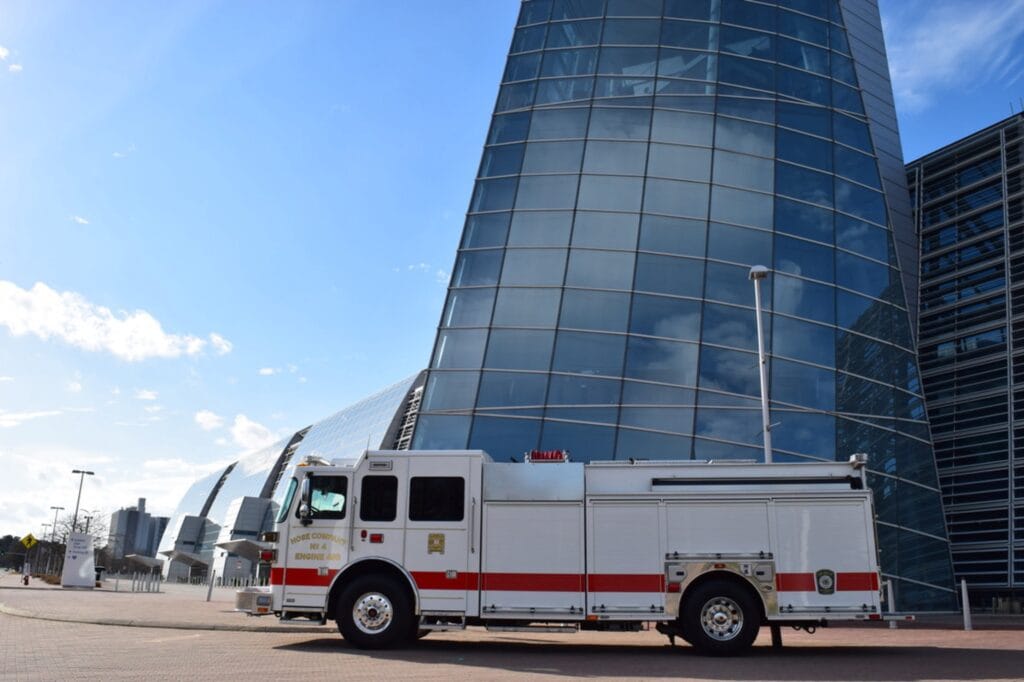

CHASSIS:              Sutphen 62” Cab with 10” half raised roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 23,000 Lbs.
  • Rear Axle: 27,000 Lbs.
  • Suspension: 31,000 Lbs.
  • Engine: Cummins ISX 12 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

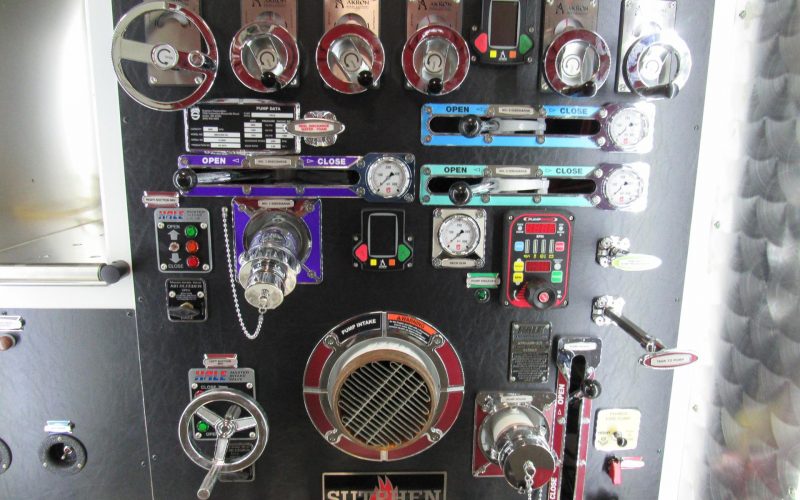

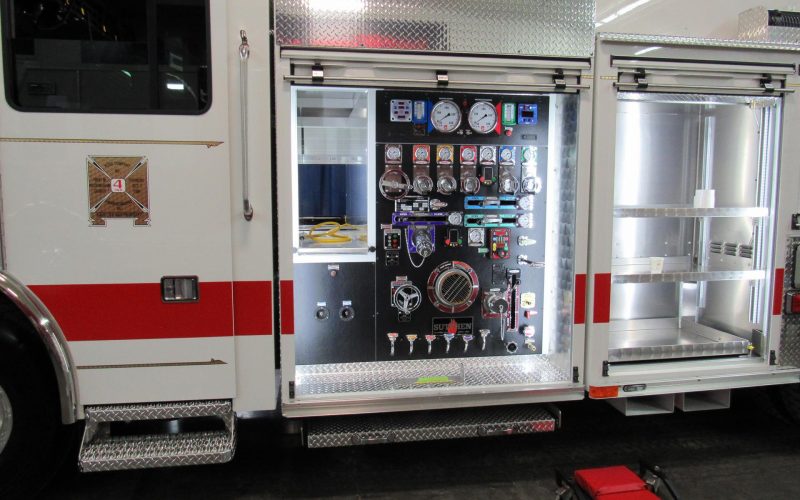

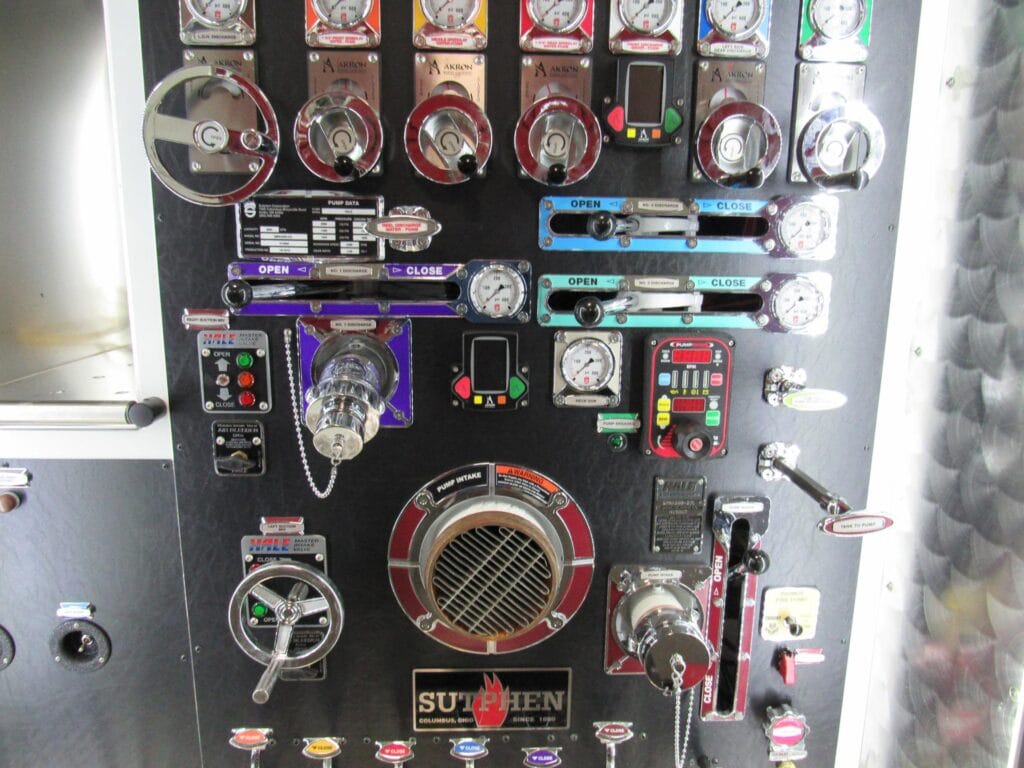

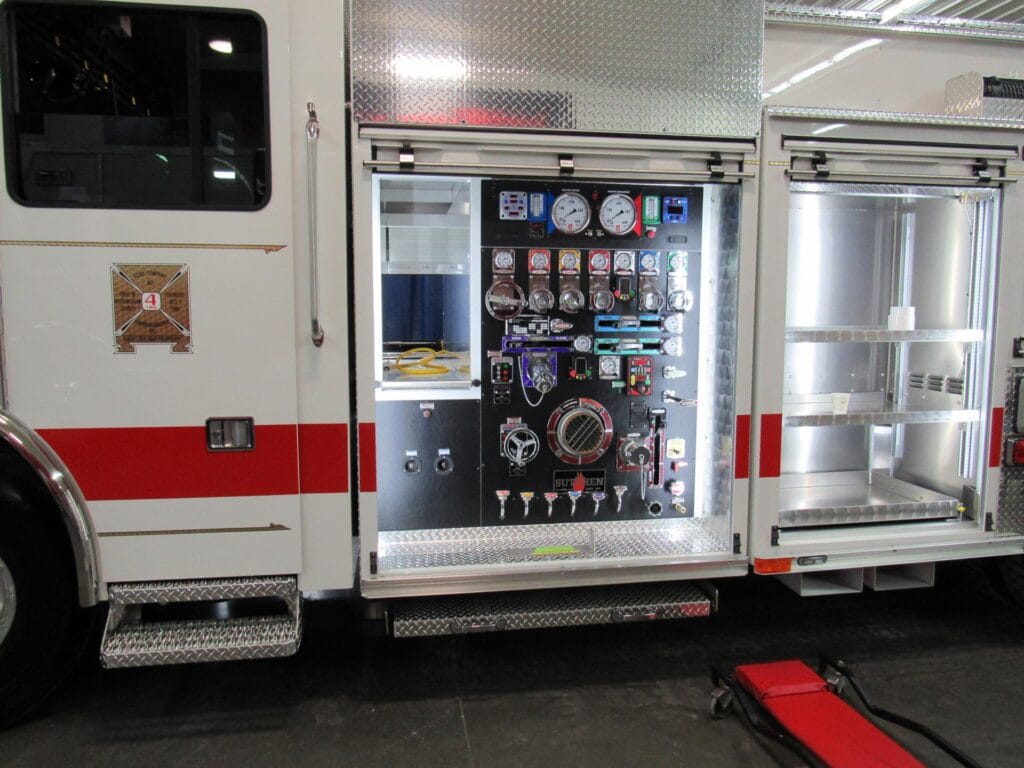

Pump

  • QMAX-2000 GPM Single Stage Pump
  • Discharge: 2.5” Left, 4” Right, (2) 2.5” Right, (2) 3” Valve 3” Pipe Left Rear, 2.5” Front Bumper, Deck Gun 3”
  • 750 Gallon Water Tank

BODY:                   Sutphen

  • Aluminum
  • 246 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Federal Q2B
  • Ziamatic SAC-44 Folding Wheel Chocks
  • Hannay ECR-1614-17-18 REEL W/ 150 OF 10/3
  • Light tower command
  • Netting over crew seat opening
  • Amdor roll up doors
  • Storage box inside the left side hose bed
