Delivery Date:
12/01/2017
Department Name:

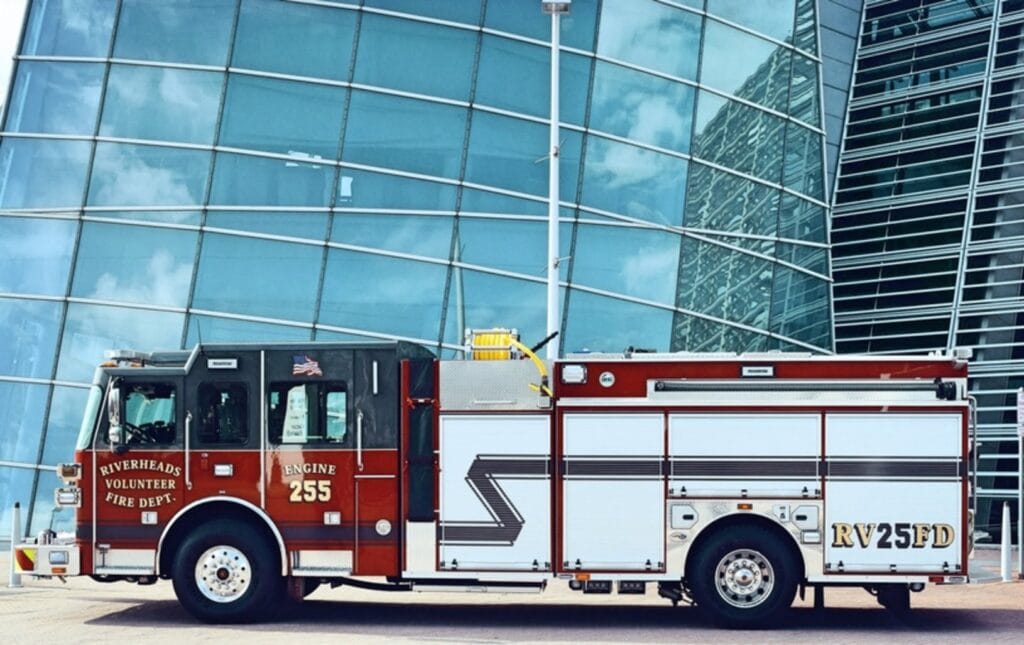

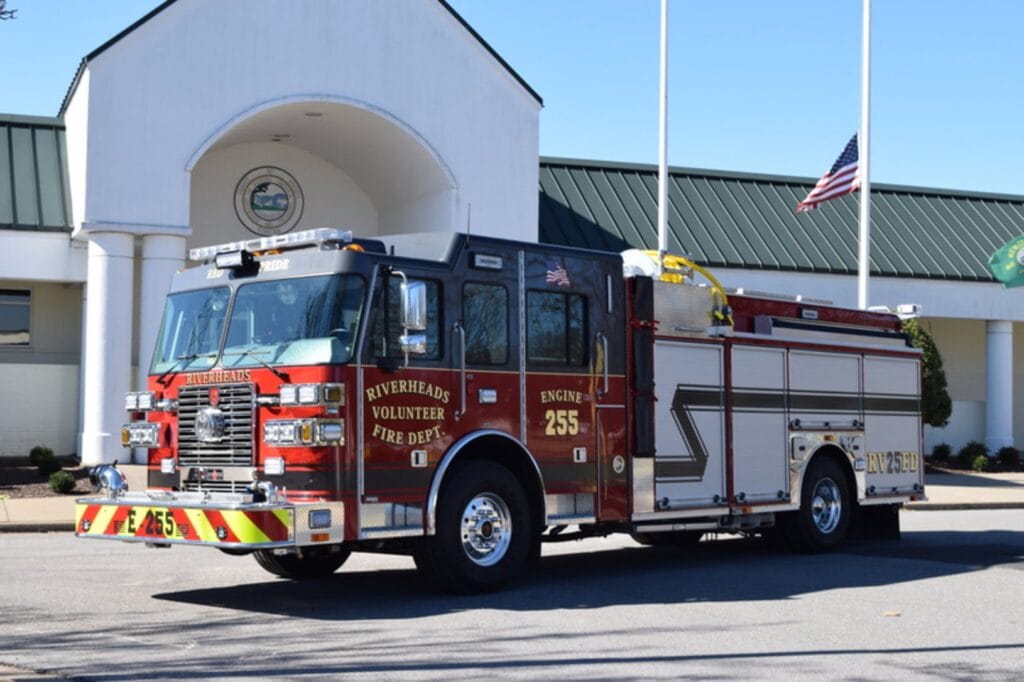

Riverheads Fire Department
Department City / State:
Staunton, VA

WHEEL BASE: 212″

TRAVEL LENGTH: 34′-2″

CHASSIS:              Sutphen 73” extended cab with half 10” raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 23,000 Lb.
  • Rear Axle 27,000 Lb. and Suspension 31,000 Lb.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5

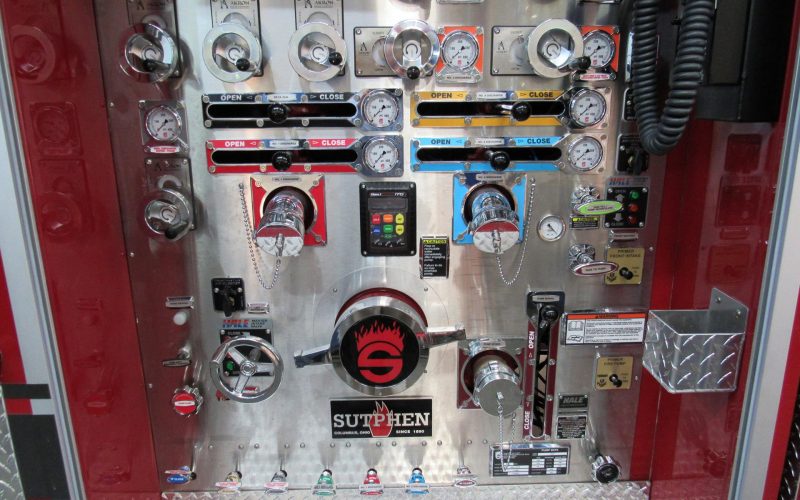

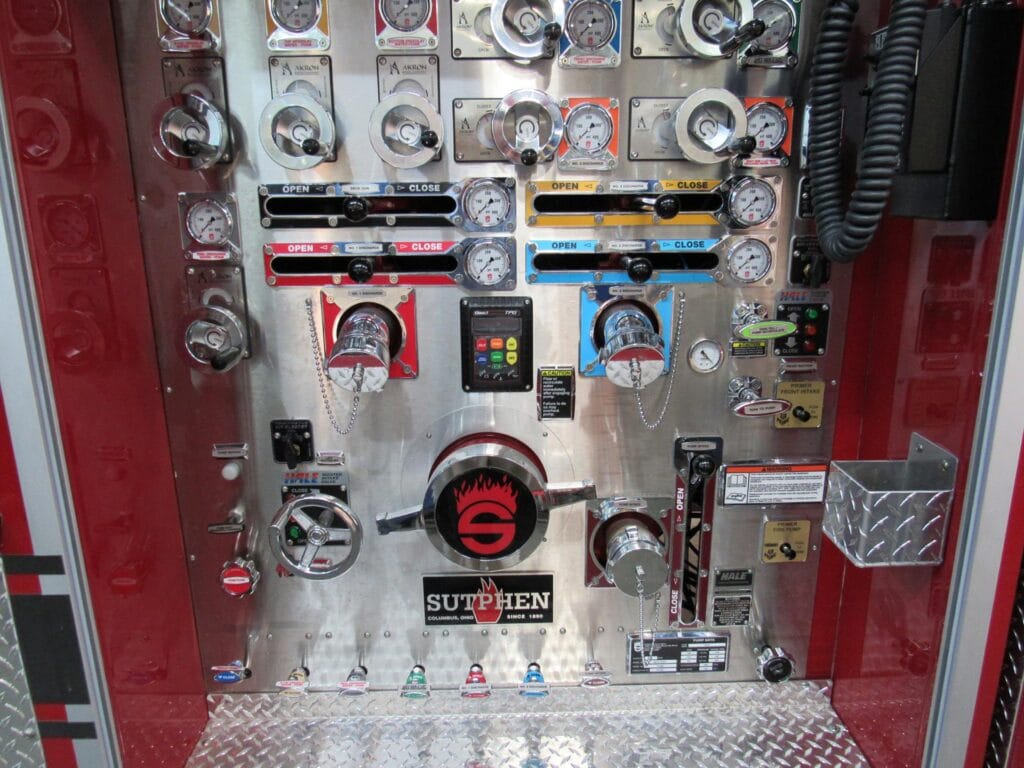

PUMP:                  Hale

  • QMAX-1500 GPM 6″ Suction Single Stage Pump
  • Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Right, (2) 3″ Valve, 3″ Pipe to left rear, 3″ Pipe to Right Rear, 2.5″ To Front Bumper
  • 750 Gallon Water Tank
  • 25 Gallon Foam Tank

BODY:                   Sutphen

  • 234 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24

OPTIONAL EQUIPMENT:

  • Federal Q2B
  • Smart PowerGenerator
  • Hannay Cord Reel W/ 200′ 12/3
  • Ziamatic Sac-44 Folding Wheel Chocks
  • Vaccuum pump gauge on pump panel
  • 3 way switches in Cab and Rear of body
