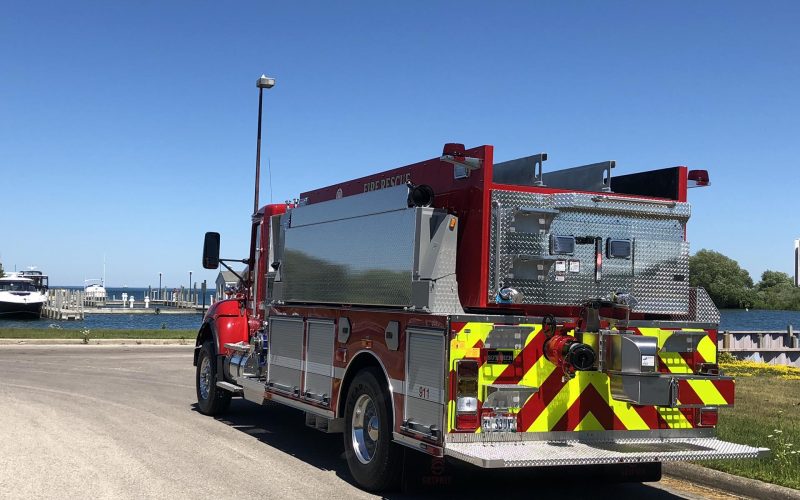

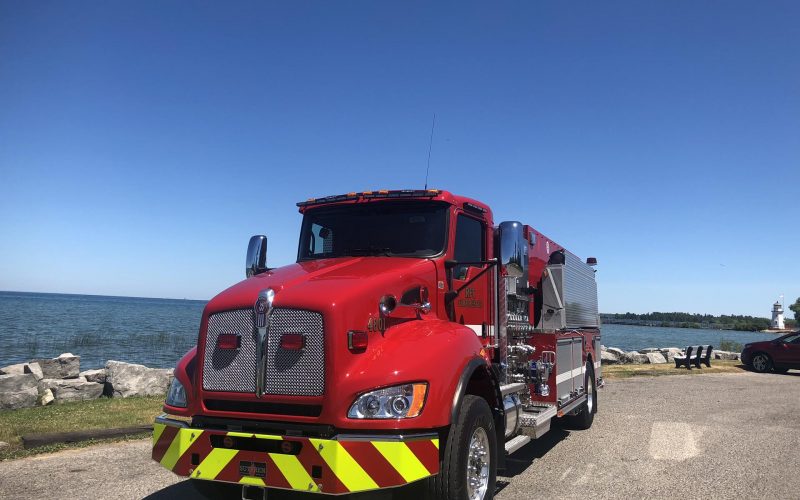

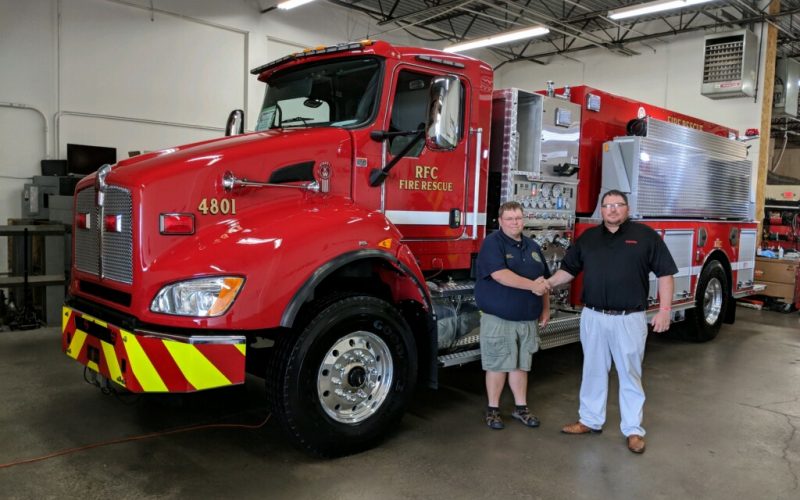

Delivery Date:
07/01/2018
Department Name:
R.F.C Fire/Rescue
Department City / State:
Harbor Springs, MI

WHEEL BASE: 233”

TRAVEL HEIGHT: 9′-7″

TRAVEL LENGTH: 30′-5.5”

CHASSIS:

  • Two-Door, Two Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 30,000 lbs.
  • Engine: Paccar PX9 450HP & EVS 3000 Transmission w/ retarder
  • Alternator: Delco 320 AMP

PUMP:                  Hale

  • QMAX-1500 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 2.5” Right Rear
  • 2000 Gallon Water Tank

BODY:                   Sutphen

  • 2 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Electronic Valve w/Controls in the Cab and Rear of Truck
  • Dump Switch Located in the Cab
  • Custom Mounting for SCBA Packs Four Mounted in R3
  • 2 Adjustable Hose bed Dividers
  • Large Step that Runs 52” L X 8” D Step Centered Under the Hose bed
  • Additional Air Tank
  • Pressure Control Fire Research Pump boss Model PBA400-A00
  • Intake Pressure Control Akron Style 59 Pre-Set 200 PSI on a Relief Valve
  • Right Auxiliary Suction Valve Electric Valve
  • Rear Suction
  • Booster Reel, Low Pressure, w/100’ of 1” Hose & Nozzle, MTD in Dunnage Area
  • Two Auto Air Primer
