Delivery Date:
07/19/2017
Department Name:
Hustead Fire Department
Department City / State:
Springfield, OH

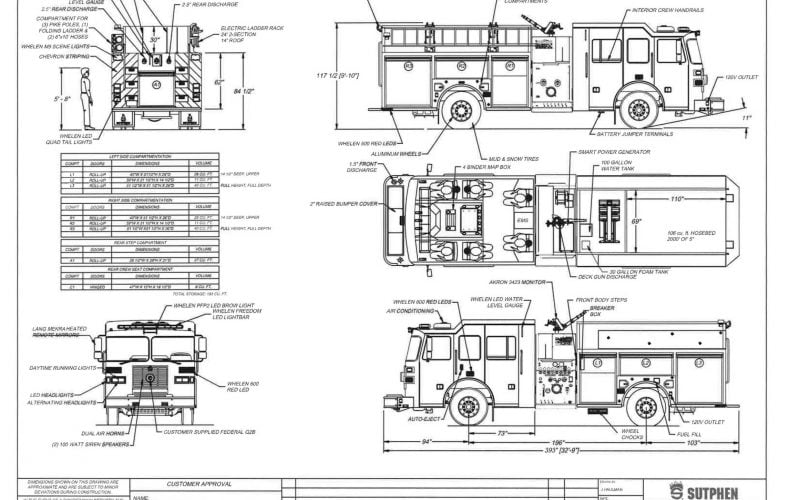

Program 1 Custom Pumper (HS-5828)

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’-10”

TRAVEL LENGTH: 32’-9”

CHASSIS: Sutphen 73” cab with half 10” raised roof

  • Four-door, six-person cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISL 9, 380 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP: Hale

  • QMAX-1500 GPM
  • Discharges: (2) 2½” Left, (1) 3” Right, (1) 2½” Right, (1) 2½” Left Rear, (1) 2½” Right Rear, (1) 1½” Front Bumper, (1) 3” Deck Gun
  • 30-Gallon Foam Tank
  • Williams ATP 500 Foam System
  • 1000-Gallon Water Tank

BODY: Sutphen

  • Aluminum
  • ROM Roll-up Doors
  • 193 cu. ft. Total Compartment Space
  • Ziamatic Quic-Lift Electric Ladder Rack

OPTIONAL EQUIPMENT:

  • 24” Bumper
  • Monitor: Akron 3423 Apollo
  • Hannay Electric Cord Reel
  • Federal Q2B
  • 10KW Smart Power Generator
  • Command Light Knight KL465
