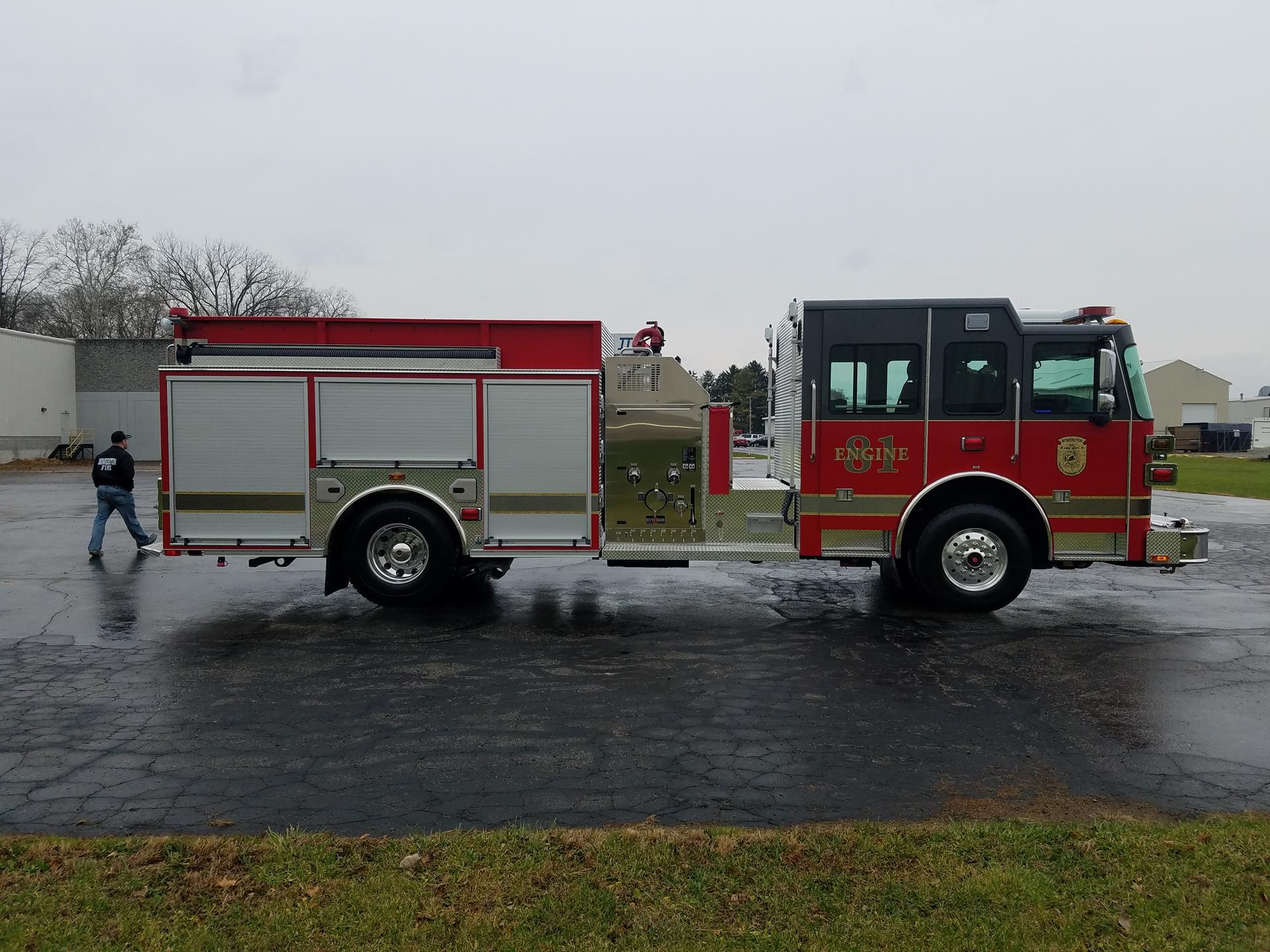

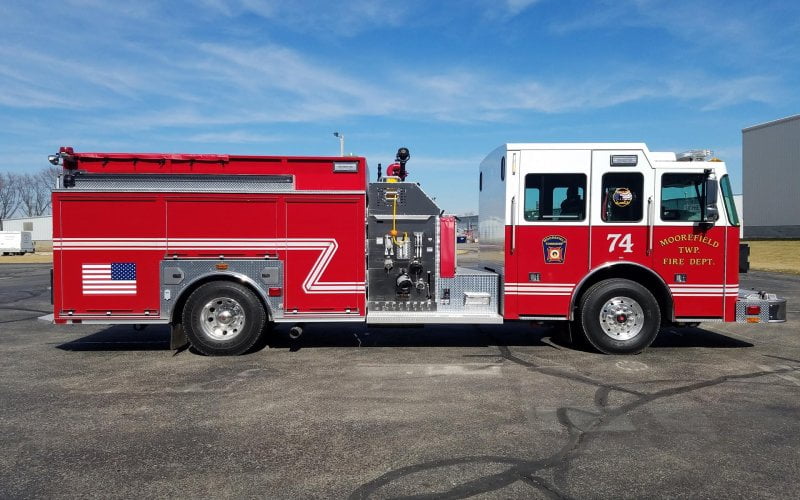

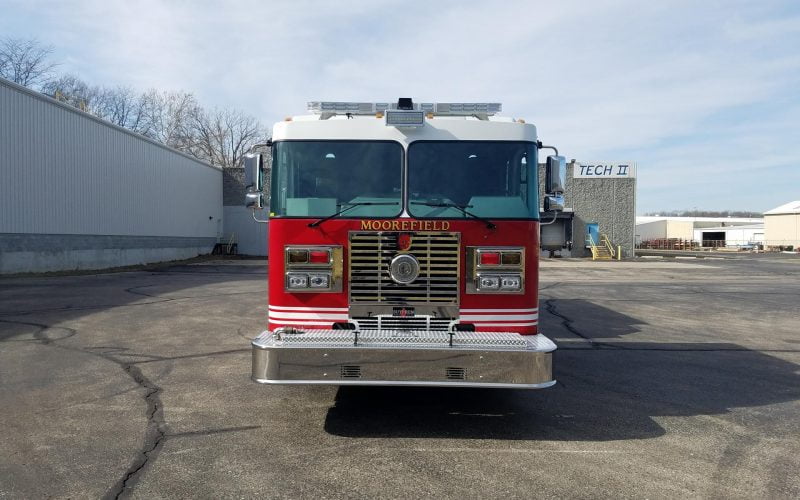

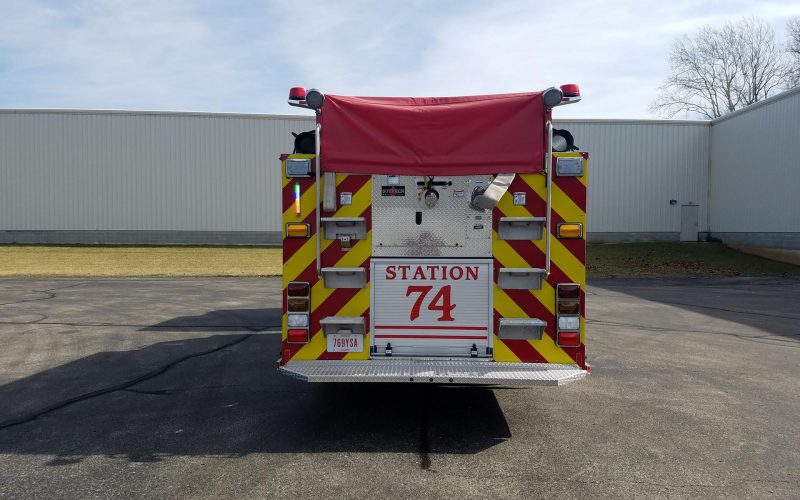

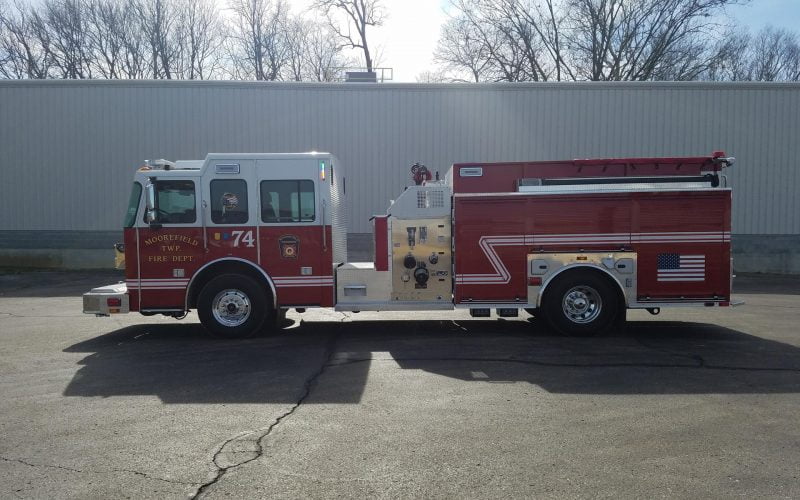

Program 1 Custom Pumper (HS-5855)
WHEEL BASE: 215”
TRAVEL HEIGHT: 9’-8”
TRAVEL LENGTH: 34’-4”
CHASSIS: Sutphen 62” cab with half 10” raised roof
- Four-door, four-person cab
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins ISL 9, 400 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM
- Discharges: (1) 3” Left, (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 30-Gallon Foam Tank
- Foam System: Foam Pro 2001 2.6 GPM
- 1000-Gallon Water Tank
BODY: Sutphen
- Aluminum
- Amdor Roll-up Doors
- 252 cu. ft. Total Compartment Space
- Alco-Lite Pel-24
OPTIONAL EQUIPMENT:
- Ladders stored in a compartment above the A1 compartment
- Voyager Camera System
- 24” Bumper
- Federal Q2B
- Monitor: TFT XFC-42 Crossfire with Safety Flow, Quad Stack Tips and Stream Shaper
- 10KW Smart Power Generator
- Warning Lights, Whelen
- Hannay Electric Cord Reel with 150’
