Delivery Date:
07/19/2017
Department Name:
Pleasant Valley Fire Department
Department City / State:
Pleasant Valley, NY

Program 1 Custom Pumper, G7 Body (HS-5684, Stock 416)

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’-10”

TRAVEL LENGTH: 31’-10”

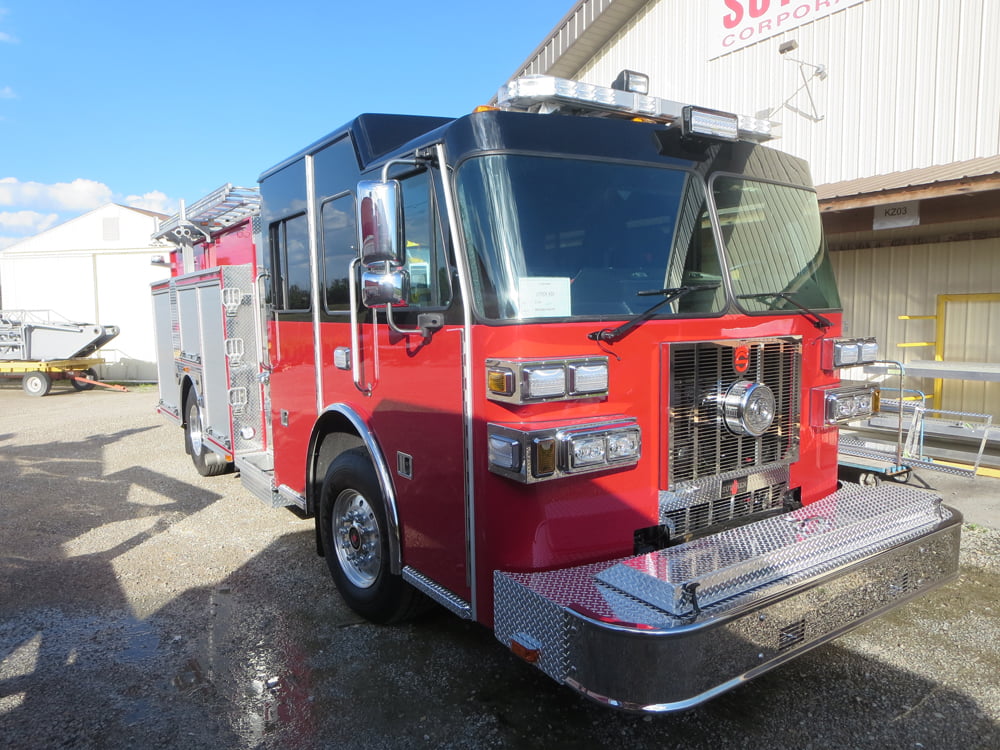

CHASSIS: Sutphen 62” cab with half 10” raised roof

  • Four-door, six-person cab
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins ISL 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

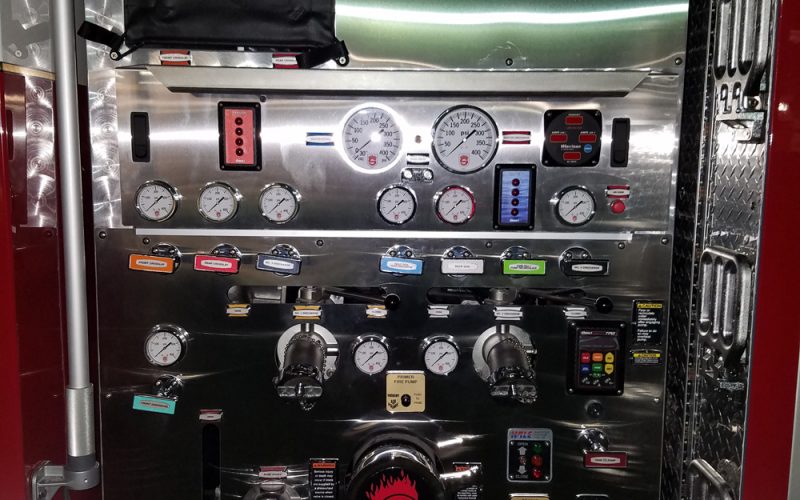

PUMP: Hale

  • QMAX- 1500 GPM
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 30- Gallon Foam Tank
  • 1500-Gallon Water Tank

BODY: Sutphen

  • Aluminum

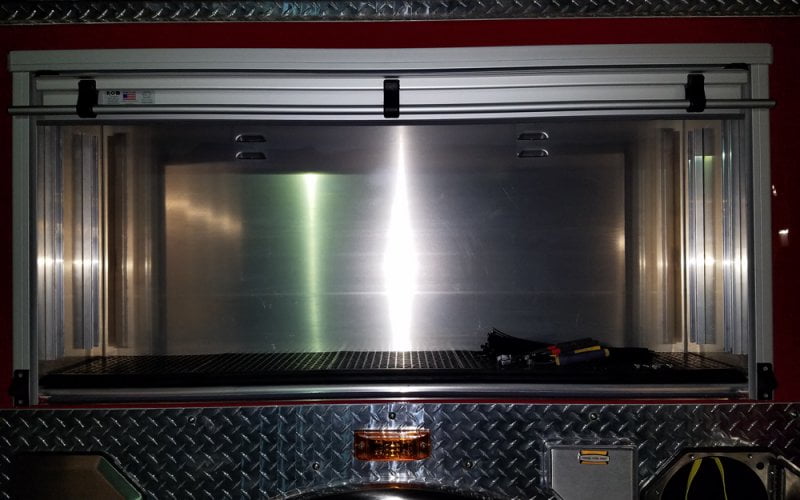

  • ROM Roll-up Doors
  • 193 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment
  • Ziamatic Electric Ladder Rack

OPTIONAL EQUIPMENT:

  • 24” Bumper
  • Safety Vision Camera System
  • 10 KW Hydraulic Harrison Generator
  • Federal Q2B
  • Hannay Electric Cord Reel, 200’
  • Traffic Advisor, Whelen
