Delivery Date:
03/01/2018
Department Name:
Pike Township Fire Department
Department City / State:
North Hampton, OH

WHEEL BASE: 185”

TRAVEL HEIGHT: 9′-10″

TRAVEL LENGTH: 31′-4″

CHASSIS:              Sutphen 62”cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 19,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins ISL 9 380HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

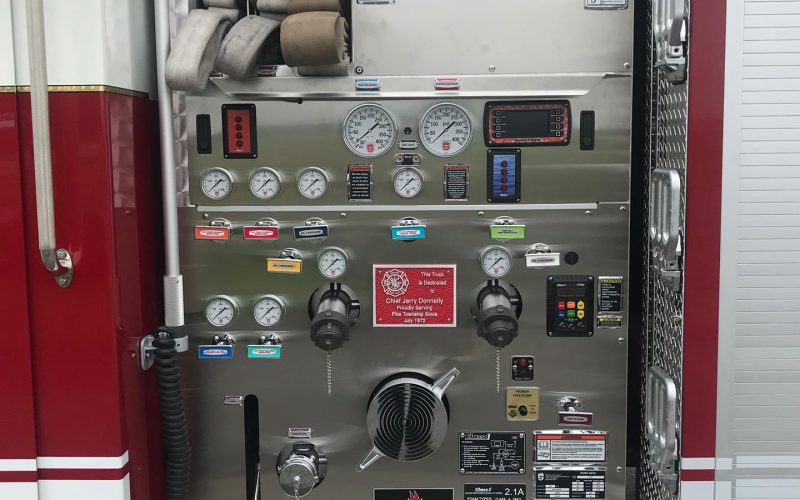

PUMP:                  Hale

  • QFLO-1250 Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Left Rear, 1.5” Front Bumper, 2” Plumbing, (2) 1.5” Crosslays & (1) 2.5″ W/Swivels
  • Foam Plumbed to: Front Bumper Discharge, Both 1.5” Crosslay Discharge, 2.5” Crosslay Discharge, and Right Rear Discharge
  • 1000 Gallon Water Tank

BODY:                   Sutphen

  • Aluminum Body
  • 266 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • No Deck Gun
  • Cascade Fill Station
  • Triple Bottle Wheel well Storage
  • Ladder Chute w/suction hose storage
  • Ziamatic SAC-44 Folding Wheel Chocks
  • 18” Bumper Extension
  • 12V Power Point
