Delivery Date:
04/01/2018
Department Name:
Petaluma Fire Department
Department City / State:
Petaluma, CA

WHEEL BASE:  196″

TRAVLE HEIGHT: 11′-6″ ±2″

TRAVEL LENGTH: 10′-3″±2″

CHASSIS:              Sutphen 62” Cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 24,000 Lbs.
  • Engine: Cummins ISX 12 500HP
  • Alternator: Niehoff 430 AMP
  • Transmission: Allison Gen 5

BODY:                   Sutphen

  • 196 cu. ft. Total Compartment Space

PUMP:                  Hale

  •  QMAX 1500 GPM 6” Suction Single Stage
  • Discharge: (2) 2.5” Left, (2) 2.5” Right, 2.5” Valve, 2.5” Pipe Right Rear, 2” Front/Left of Main Hose bed—1.5” Connection
  • 500 Gallon Water Tank

OPTIONAL EQUIPMENT:

  • Federal Q2B Siren
  • Ziamatic SAC-44 Folding Wheel Chocks
  • Ladder Package Duo Ladder
  • 4 Motorola Chargers
  • Bullard Powerhouse Charging Station
  • Intercom, sitcom, 6 position, wired
  • Kenwood Radio
  • 1/2” Auxiliary Pump Cooling Line
  • Stainless Steel Cross lay Edge Protectors
  • Rollers for Booster Reel Terminations
  • Drain Valves, Trident, Round

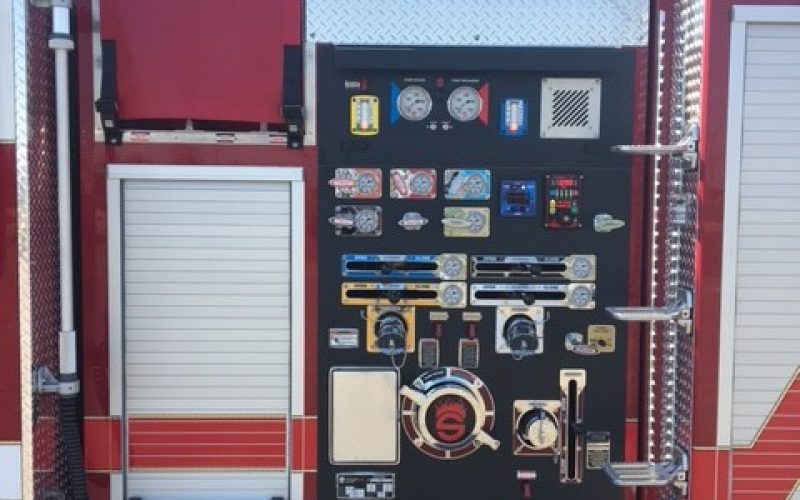

  • Side Mount Pump Panel
  • Tread plate Lid for Hose Trough, Drivers Side
  • Izone, Hose Bracket on Rear of Body
