WHEEL BASE: 236″
TRAVEL HEIGHT: 11′-6″ ±2″
TRAVEL LENGTH: 46′-7″
CHASSIS: Sutphen 62” Cab with 10” half raised roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension: 23,000 Lbs.
- Rear Axle and Suspension: 52,000 Lbs.
- Engine: Cummins ISX 12 500HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5
BODY: Sutphen
- Aluminum
- 293 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Harrison 10 KW HYD Generator
- Scene Lights, Whelen
- Federal Q2B
- Ziamatic SAC-44 Folding Wheel Chocks
- Kenwood Radio

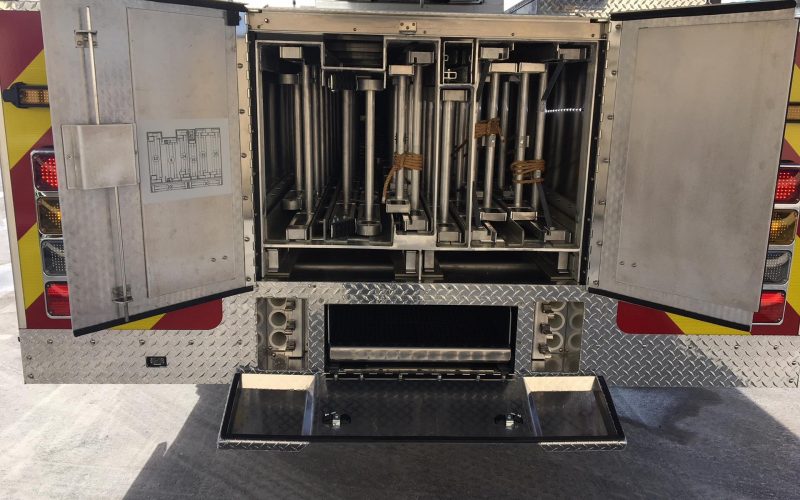

- Ladder Package Duo-Safety 207’

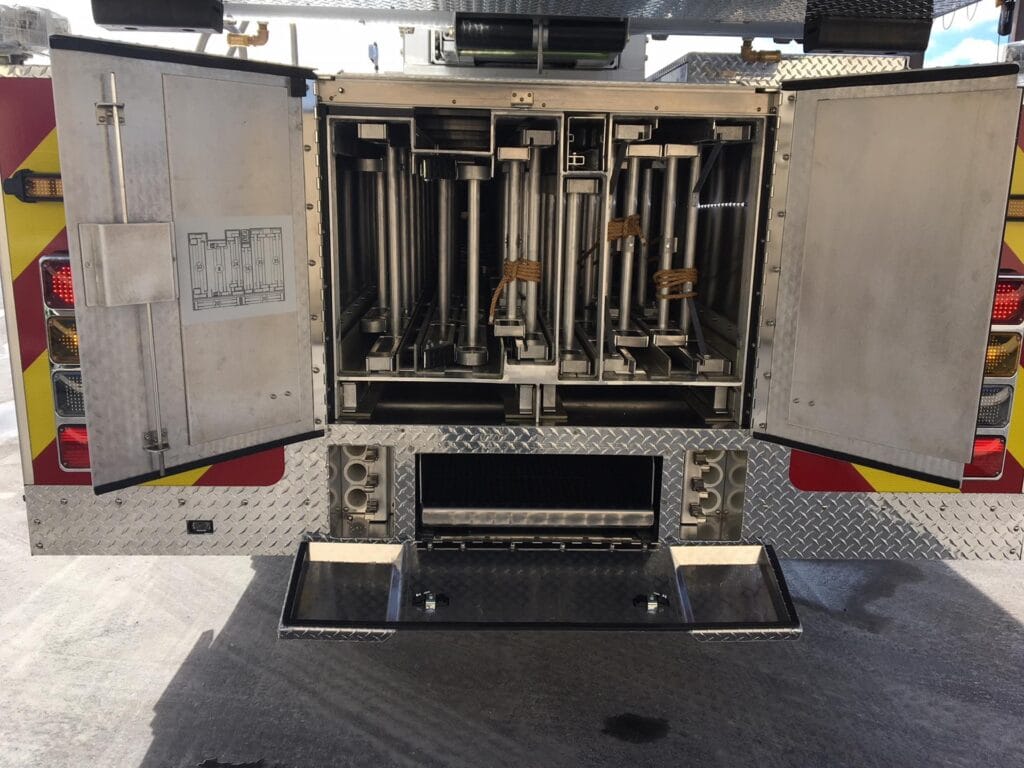

- Ladder Chute enclosed with Tread plate doors
- Side-Load Tread plate backboard storage
