Delivery Date:
03/01/2018
Department Name:
Palm Beach County Fire
Department City / State:
West Palm Beach, FL
Truck Type:

WHEEL BASE: 232”

TRAVEL HEIGHT: 9’11”

TRAVEL LENGTH: 41′-8 1/4″

CHASSIS:

  • Four-Door, Five Person Cab
  • Front Axle and Suspension: 23,000 lbs.
  • Rear Axle and Suspension: 31,000 lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP

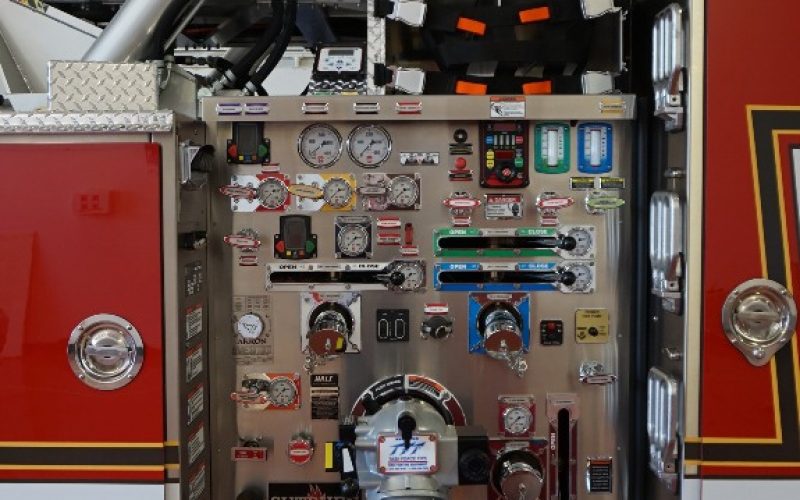

PUMP:                  Hale

  • QMAX-1500 GPM 6” Suction Single Stage Pump
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Upper Left Side Body, 1.5” Front Bumper, 2” Plumbing, 2.5” Tip of Aerial
  • 470 Gallon Water Tank
  • 30 Gallon Foam Tank

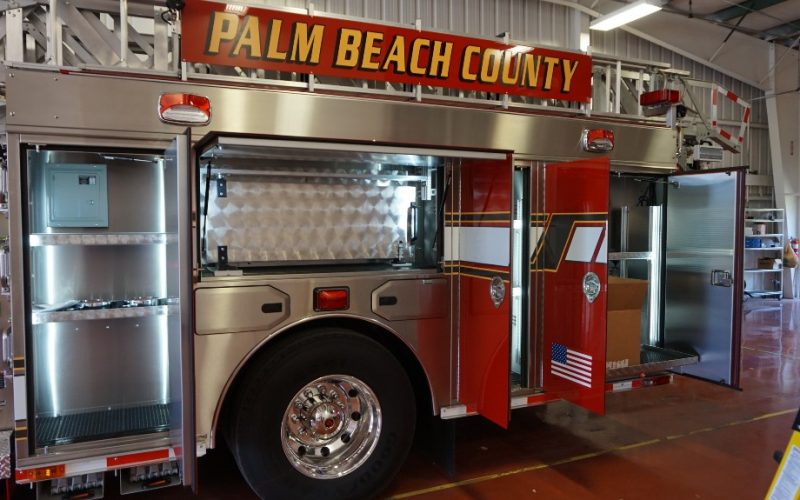

BODY:                   Sutphen

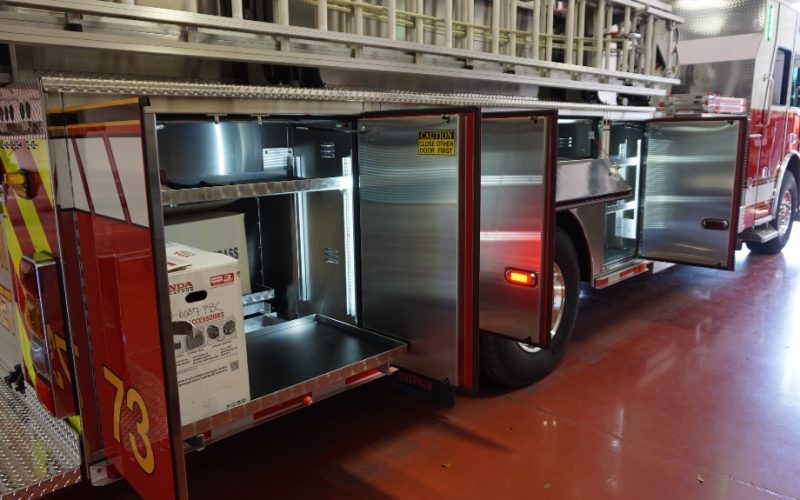

  • 75 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • High Idle Function
  • Officer to have Siren Brake, But No Activation Switch
  • Add an A-Post Removable Covers Both Sides
  • Logo Sewn into Seats
  • Audible Door Ajar Buzzer in Cab
  • Pressure Gauges on both 2.5” Intakes
  • Add Akron 125 GPM Eductor
  • Ground Light Switch in Cab
  • Additional Ground Lights, Lumabar H2O
  • Fully Enclosed Hydraulic Compartment

6” Service Loops in Wiring on all Warning and Scene Lights
