Delivery Date:
08/07/2018
Department Name:
Palm Bay Fire Rescue
Department City / State:
Palm Bay, FL

WHEEL BASE: 185″
TRAVEL HEIGHT: 9′-8″ ±2″
TRAVEL LENGTH: 385”

CHASSIS: Sutphen 62” Cab with 10” Half Raised Roof

• Four-Door, Six Person Cab
• Front Axle and Suspension: 20,000 lbs.
• Rear Axle and Suspension: 27,000 lbs.
• Engine: Cummins ISL 9 450HP
• Alternator: Niehoff 360 AMP
• Transmission: Allison Gen 5

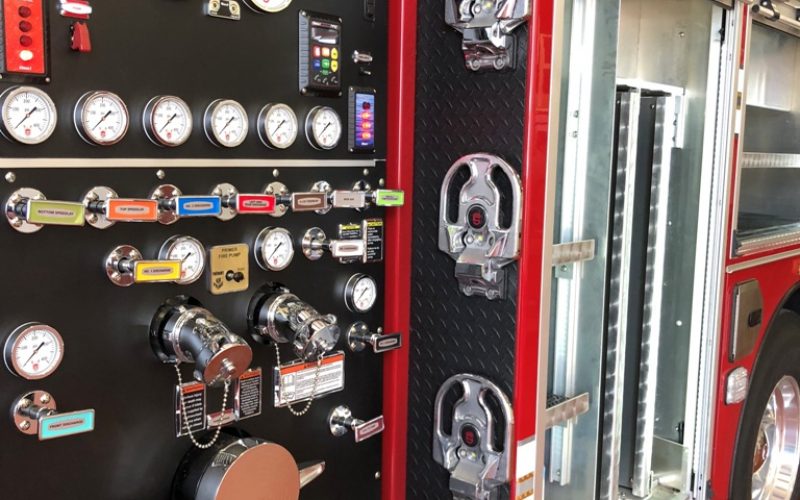

PUMP: Hale

• XS QMAX-1500 GPM Stage Pump
• Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
• 750 Gallon Water Tank

BODY: Sutphen

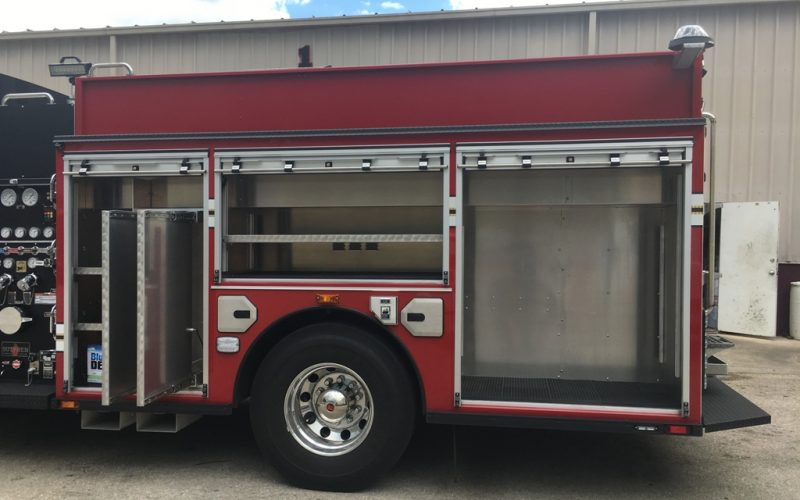

• 222 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:
• Low Hosebed
• Rear Fenderettes to Black Rubber
• Treadplate on Top of Compartments to be Texture Coated Black
• Treadplate Hose Bed Deflector w/Black Webbing at Rear
• Rub Rails Polyurethane
• Tailboard 18” w/45-Degree Corners to be Texture Coated Black
• Body Fenders to be Smooth Aluminum Painted Body Color
• Taillights, Federal Signal Series, LED Stop/Tail/Turn/Reverse, Quad Housing
• Wheels Accuride, Accu-Shield
• Air Breake System 4 Tanks Bendix AD-9 Air-Dryer
