Delivery Date:
08/12/2018
Department Name:
Palm Bay Fire Department
Department City / State:
Palm Bay, FL

WHEEL BASE: 226”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 34’ – 8”

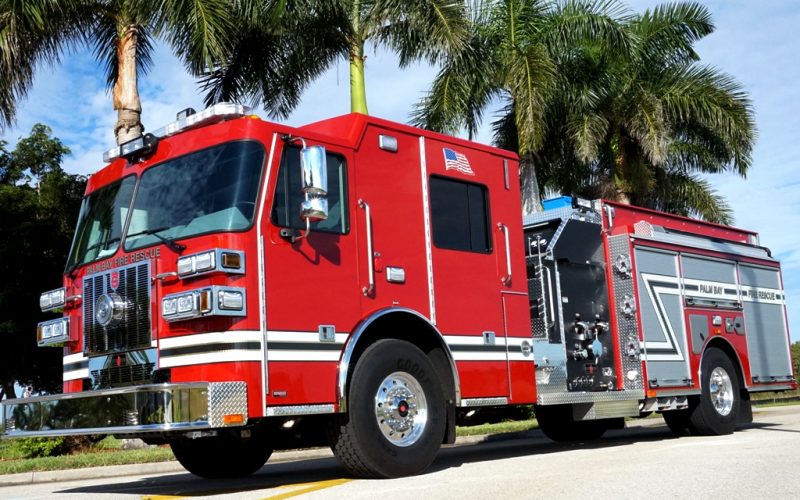

CHASSIS:             Sutphen 73” extended cab with half 10” raised roof

  • Four-Door, Seven-Person Cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L9, 450HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

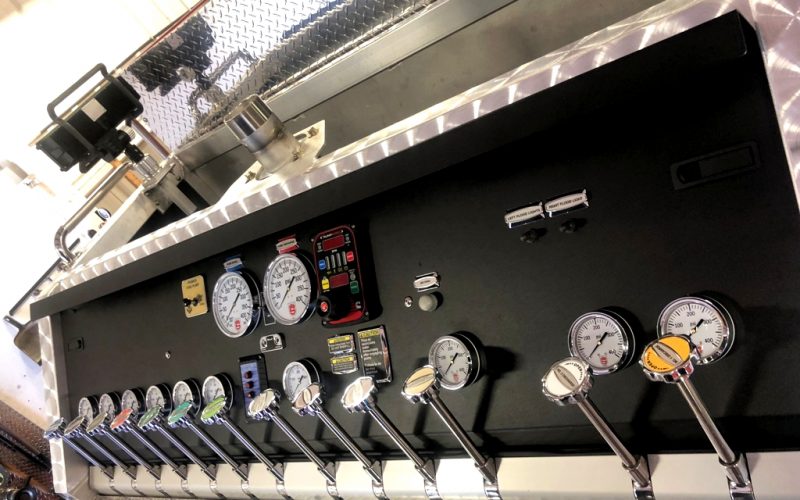

PUMP:                 Hale

  • QMAX – 1500 GPM
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • Aluminum
  • Ladder Chute
  • Alco-Lite PEL-24

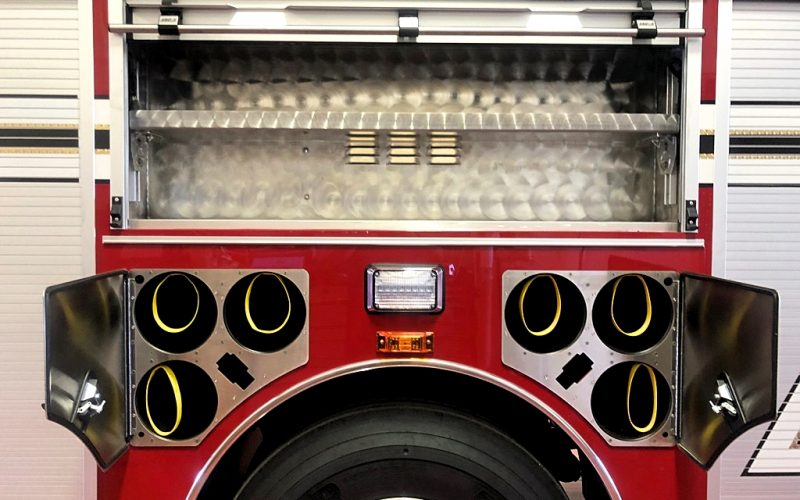

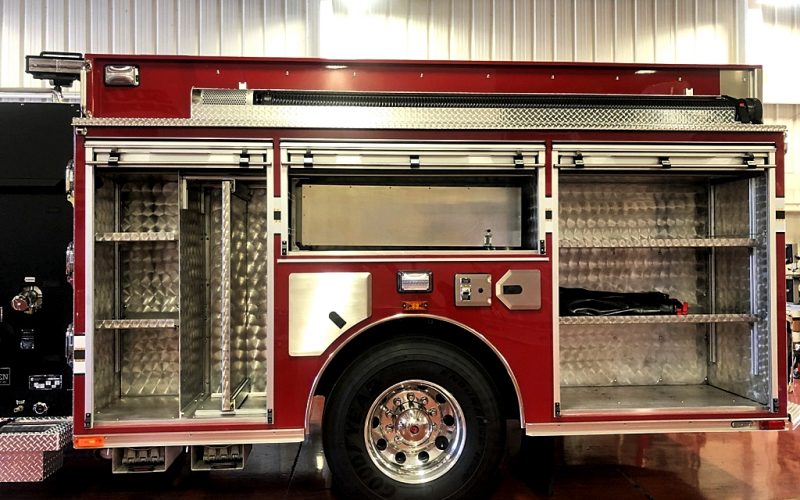

  • 222 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Traffic Advisor, Whelen
  • Federal Q2B
  • 18” Bumper
  • Pike Pole Storage Tubes
  • Ziamatic SAC – 44 Folding Wheel Chocks
