Delivery Date:
01/01/2018
Department Name:
Odenville Fire Department
Department City / State:
Odenville, AL

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’ 11”

TRAVEL LENGTH: 31’4”

CHASSIS:              Sutphen 62” cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

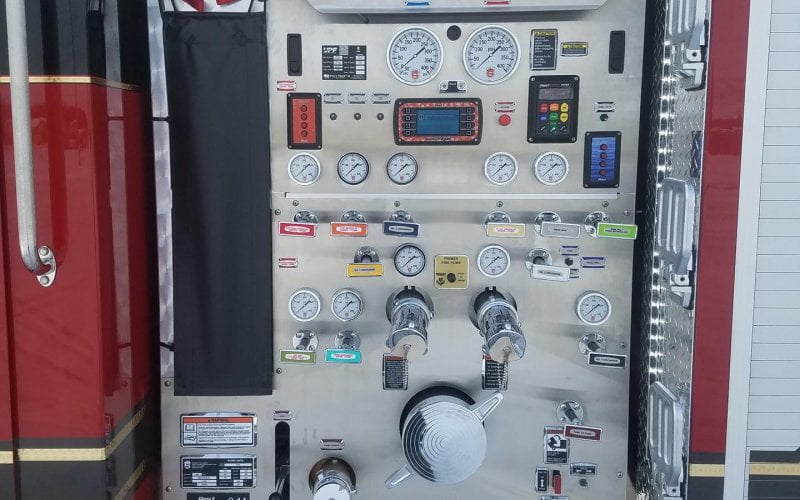

PUMP:                  Hale

  • 1500 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
  • 1000 Gallon Water Tank

BODY:                   Sutphen

  • Aluminum
  • 270 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Federal Q2B
  • Winch Receiver Front with Wiring
  • Portable Winch, Warn, 4,700 LB
  • Additional Poly Trays
  • Suction Hose Compartment in Hose Bed w/Velcro Strap
  • Coffin Style compartment above left and right side body compartment
  • Customer Approved Graphics Package
  • Turtle Tile, Shelving, and Trays Allowance
