Delivery Date:
11/01/2017

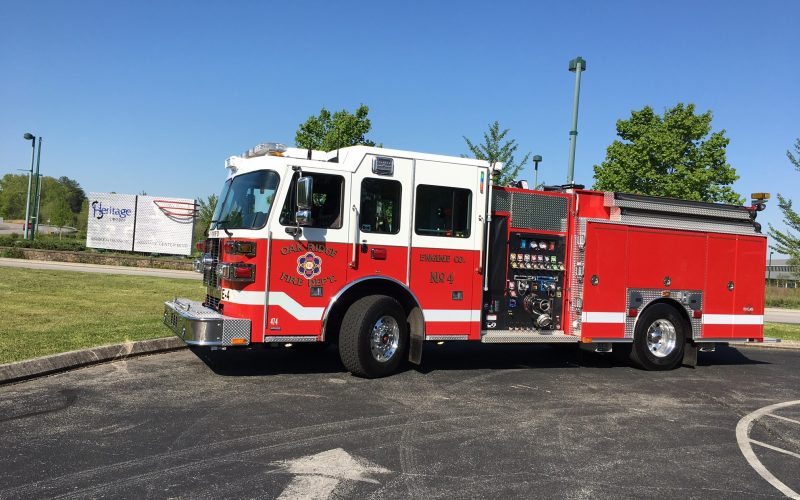

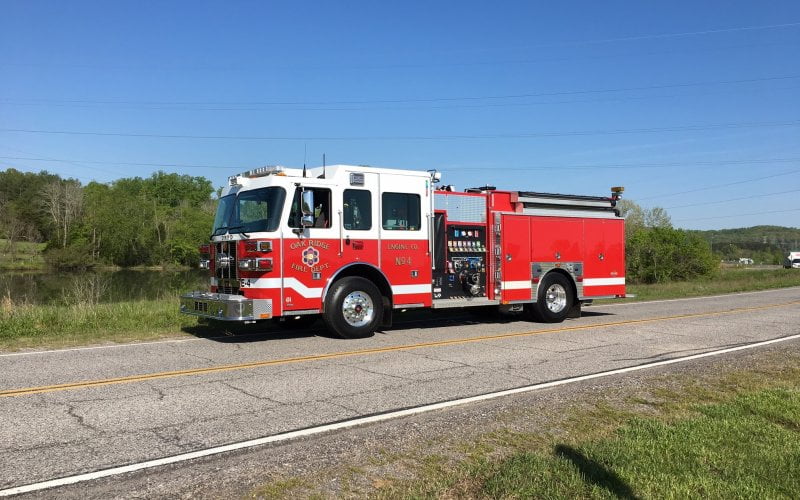

Department Name:
Oak Ridge Fire Department
Department City / State:
Oak Ridge, TN
Truck Type:
WHEEL BASE: 191”
TRAVEL HEIGHT: 9′-8″±2″
TRAVEL LENGTH: 385” 3/16”
CHASSIS: Sutphen 62” extended cab with half 10” raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension 20,000 LB
- Rear Axle and Suspension 27,000 LB
- Engine: Cummins ISX 12 500 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5
PUMP: Hale
- QMAX-1500 GPM
- Discharge: (2) 2 ½“ Left, 2 ½“ Left Front Left of main Hosebed, 2 ½ “ Right, 4” Right, 2 ½“ valve 2 ½” pipe to left rear, 1 ½“ Front Bumper, 2″ plumbing, 3″ Deck Gun,
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
BODY: Sutphen
- 257 cu. ft. Total Compartment Space
- Alco-Lite PEL-24
OPTIONAL EQUIPMENT:
- Federal Q2B
- 18” Bumper Extension
- Scene Lights, Whelen
- Camera System, Intec, Single Camera
- Federal Q2B
- LED Body lighting
- Recess Mounting of Traffic Advisor
- Foam Flush
- Special Side Mount Pump Panel
- Pump Panel Extension
