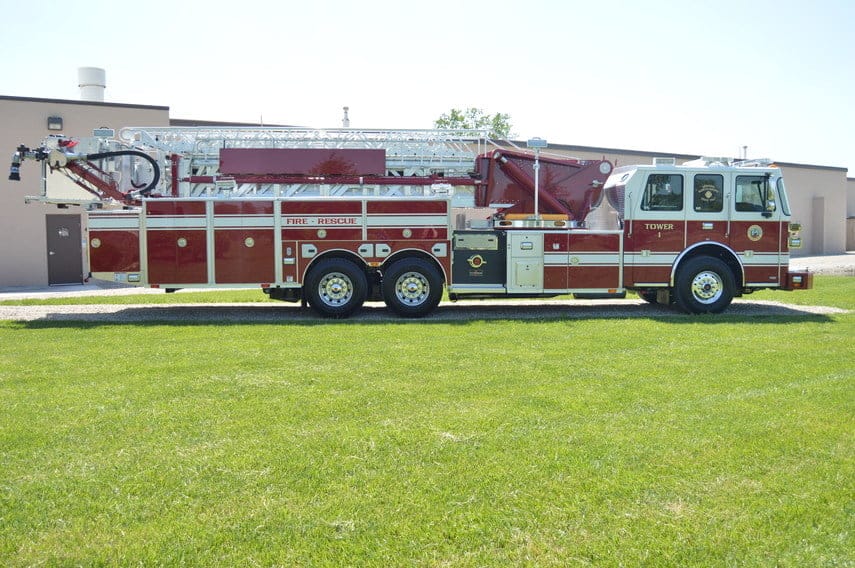

WHEEL BASE: 236”
TRAVEL HEIGHT: 11’ 6”
TRAVEL LENGTH: 47’

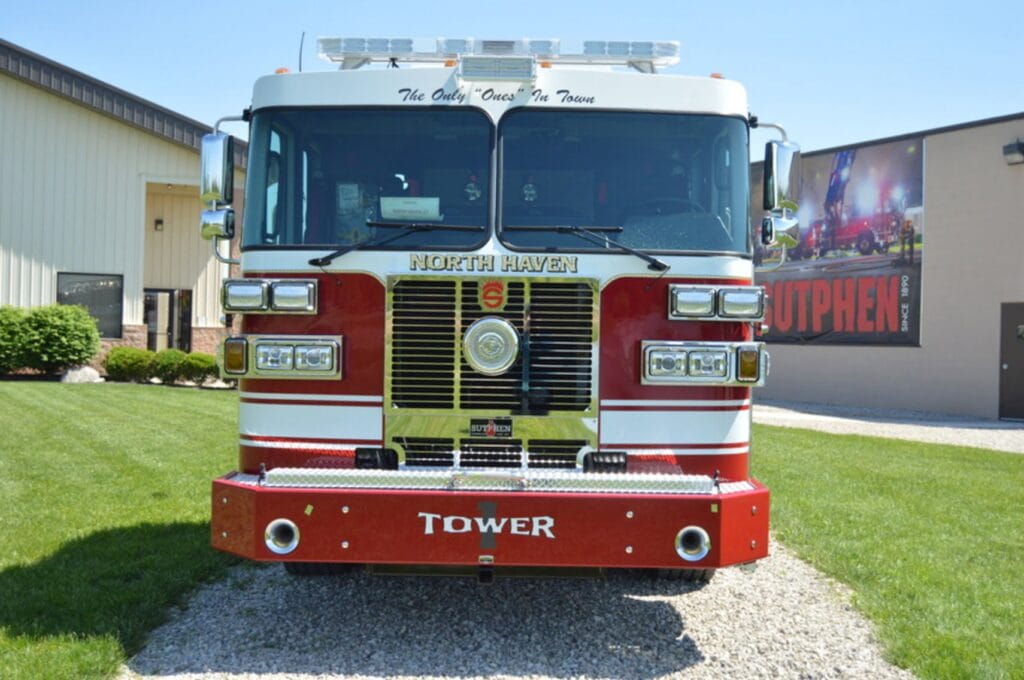

CHASSIS: Sutphen 62” cab with half raised roof
- Four-Door, Four Person Cab
- Front Axle and Suspension: 23,000 lbs.
- Rear Axle and Suspension: 52,000 lbs.
- Engine: Cummins ISX 12 500HP
- Alternator: Niehoff 430 AMP
- Transmission: Allison Gen 5
BODY: Sutphen
- 293 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Single Crosslay storage for 5”
- Ladder Chute to accommodate TELE3-45P 45’-3 Section Ladder
- AEL-14 Combo for the above 14’
- Side Cab Scene Lights
- Elec Reel Akron Compact ERW C-10-28 W/200’ 10/3
- 16’ Roof Ladder on boom
- Outrigger Spot Lights, Rigid D2 (2)
- Quad Stack Tips
- Bottle Filling Hose for Above Air Tank
- Dealer provided extension hoses in bucket
