Delivery Date:
05/04/2018
Department Name:
North Fort Myers, FL
Department City / State:
North Fort Myers, FL

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’ 10”

TRAVEL LENGTH: 31′ 10”

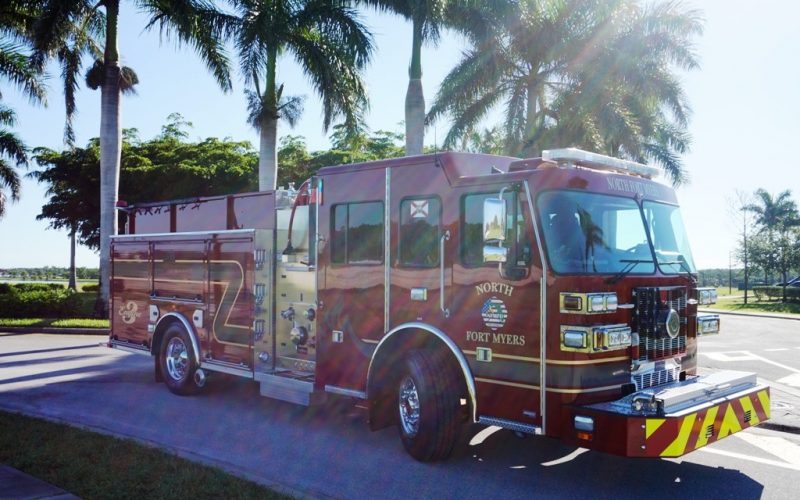

CHASSIS:              Sutphen 62” Cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle: 31,000 Lbs.
  • Rear Suspension: 27,000 Lbs.
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

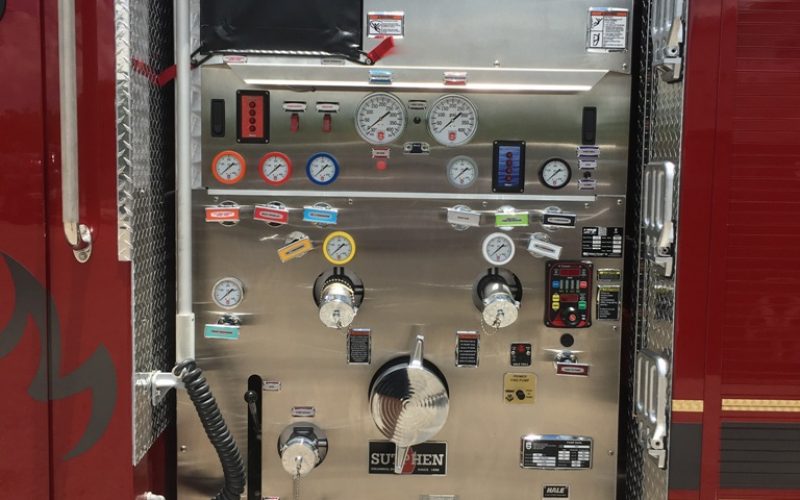

PUMP:                  Hale

  • QFLO-1250 Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Front Bumper, 2” Plumbing, 3” Deck Gun
  • 1000 Gallon Water Tank

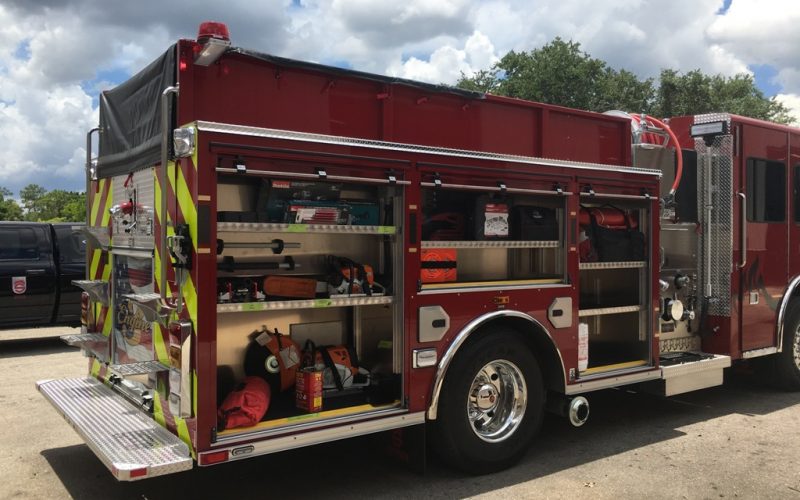

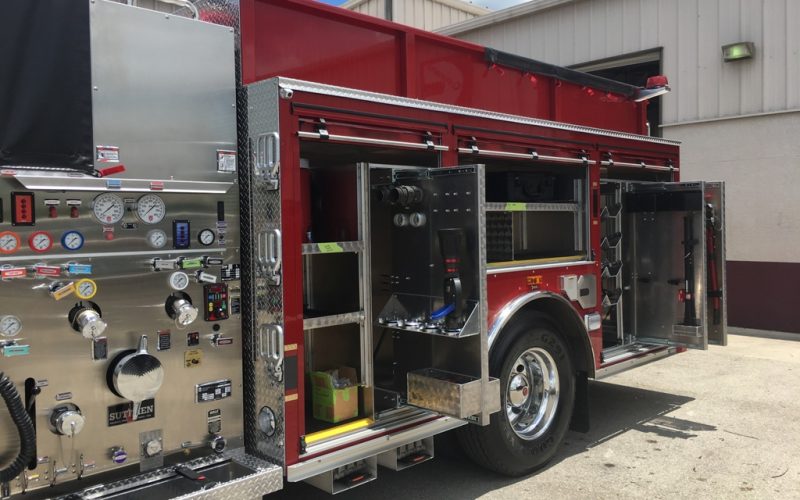

BODY:                   Sutphen

  • 222 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Smooth Fenders Painted Truck Color
  • Amdor Doors
  • Warning/Scene Light Combo, Whelen M9V2AC (Pair)
  • Additional Lettering
  • Kussmaul Battery Display Weatherproof
  • Front Cab Interior Door Grab Handle Change to Stainless
  • Scorpion Line Top Edge of Bumper
  • Medical Glove Box Holders, Upper Crew Doors
  • Pressure Control FRC Pump Boss
  • Special Foam System on Board Educator Plumbed to Front Crosslay
