Delivery Date:
09/12/2017
Department Name:
Nantong Fire Brigade
Department City / State:
Nantong, China

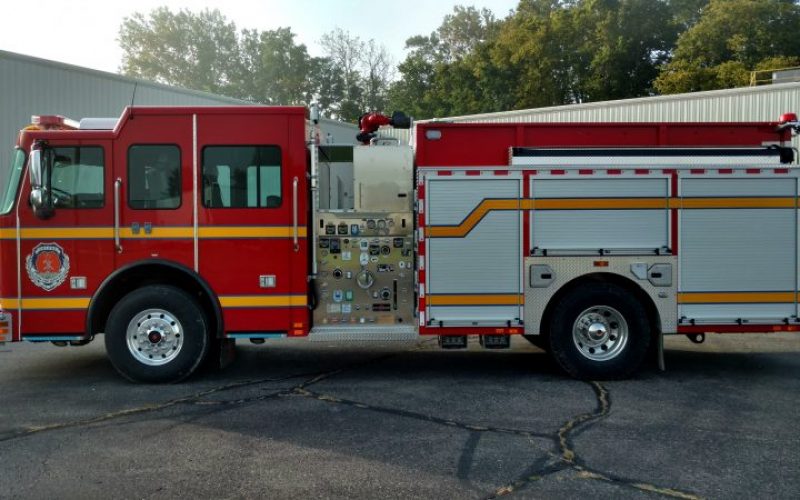

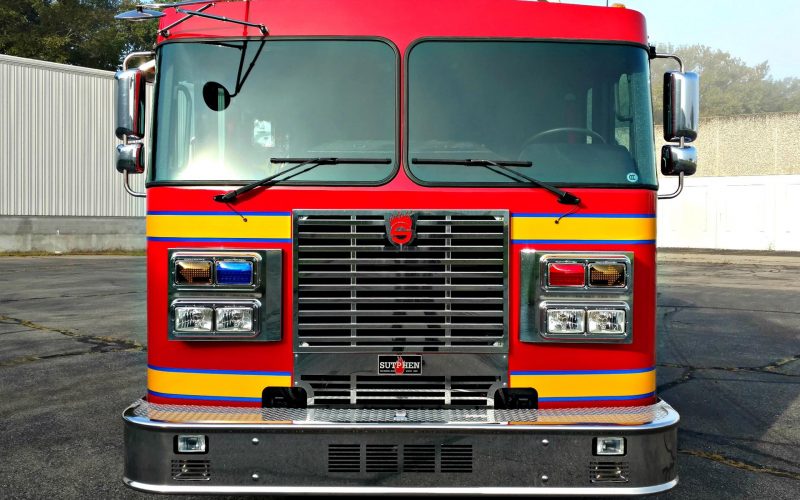

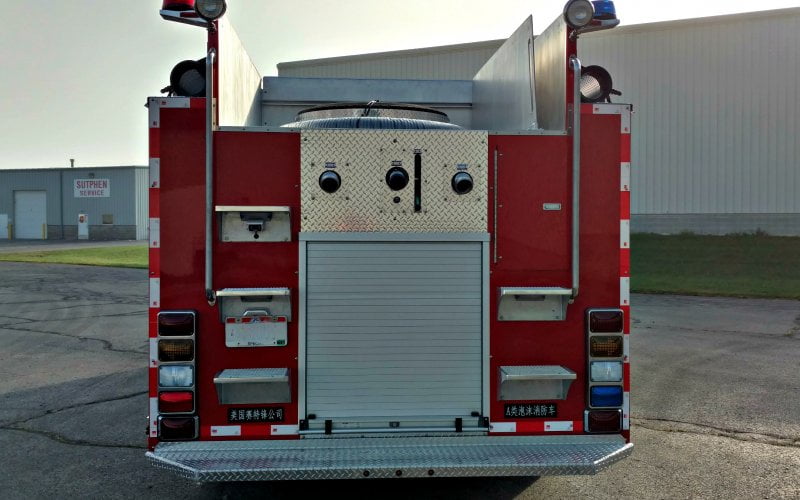

Truck Type:
WHEEL BASE: 185”
TRAVEL HEIGHT: 9’-11”
TRAVEL LENGTH: 30’-10”
CHASSIS: Sutphen 62” extended cab with half 10” raised roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Export Engine ISL 8.9, 400 HP Euro V
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5. EVS3000
PUMP: Waterous
- CMU-2000
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 3” Deck Gun
- 50-Gallon Foam Tank
- Foam System: Waterous Aquis 2.5
- 1000-Gallon Water Tank
BODY: Sutphen
- Aluminum
- Rom Roll-Up Doors
- 222 cu. ft. Total Compartment Space
- Alco-Lite PEL-24
OPTIONAL EQUIPMENT:
- Scene Lights, Whelen
- Camera System, Safety Vision SV-CLCD0-70
- Deck Gun Monitor: Akron 3482 Stream Master Electric w/ Akron 1577 Saber Master
- Akron 3406 Electric Riser
- Whelen 295 HFS2, Remote Flush Mount Siren
- 12” Bumper
