WHEEL BASE: 236″
TRAVEL HEIGHT: 11′-6″ ±2″
TRAVEL LENGTH: 46′-7″

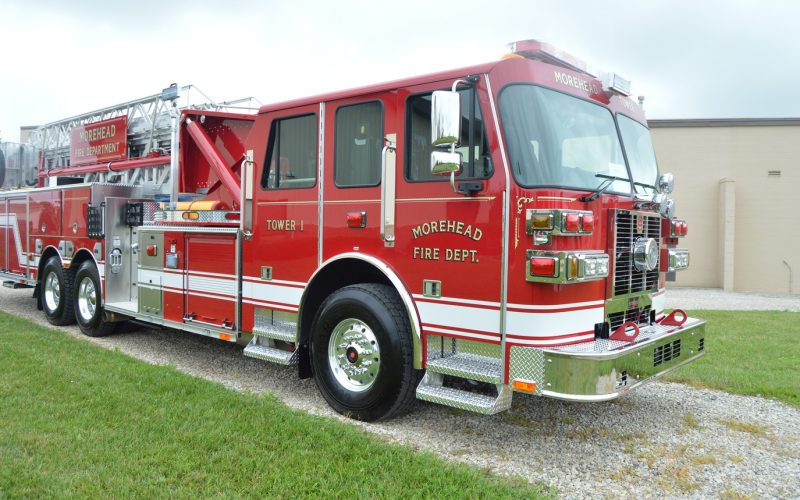

CHASSIS: Sutphen 62” Flat Cab
• Four-Door, Six Person Cab
• Front Axle and Suspension: 23,000 lbs.
• Rear Axle and Suspension: 52,000 lbs.
• Engine: Cummins ISX 12 500HP
• Alternator: Leece Neville 320 AMP
• Transmission: Allison Gen 5

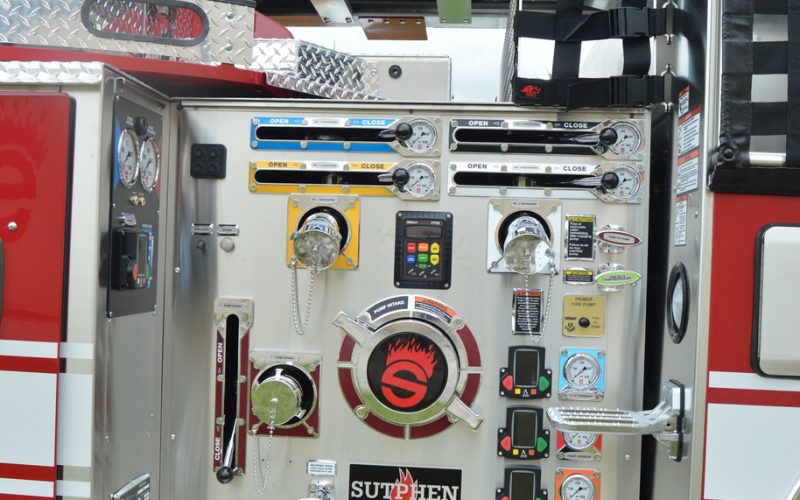

PUMP: Hale
• QMAX-1500 GPM 6” Single Stage Pump
• Discharge: (2) 2.5” Left, 3” Right, 2.5” Right
• 300 Gallon Water Tank
BODY: Sutphen
• 293 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
• Switch Cluster on Main Panel, Class 1
• Main Hosebed Cover Black Webbing on the Rear
• Mount Customer Supplied Stokes Basket
• Mount Customer Supplied 6’ Step Ladder
• Additional 14’ Roof Ladder Mounted on Boom
• Ground Light Switch Above Driver
• Handrail on Top of Turntable Side Plate to be Standard Low Profile
• Door Over Outrigger Control Display to be Clear Lexan Material
• Treadplate Cover IPO Vinyl for Platform Controls
• Plate on Bottom of Bucket Painted
• Pin Striping Around Front Headlights and Sides of Body
