Delivery Date:
07/19/2017
Department Name:
Rocky Hill Fire Department
Department City / State:
Rocky Hill, CT

Model 95 Low Rail (HS-5881)

WHEEL BASE: 258”

TRAVEL HEIGHT: 10’-1”

TRAVEL LENGTH: 49’-0”

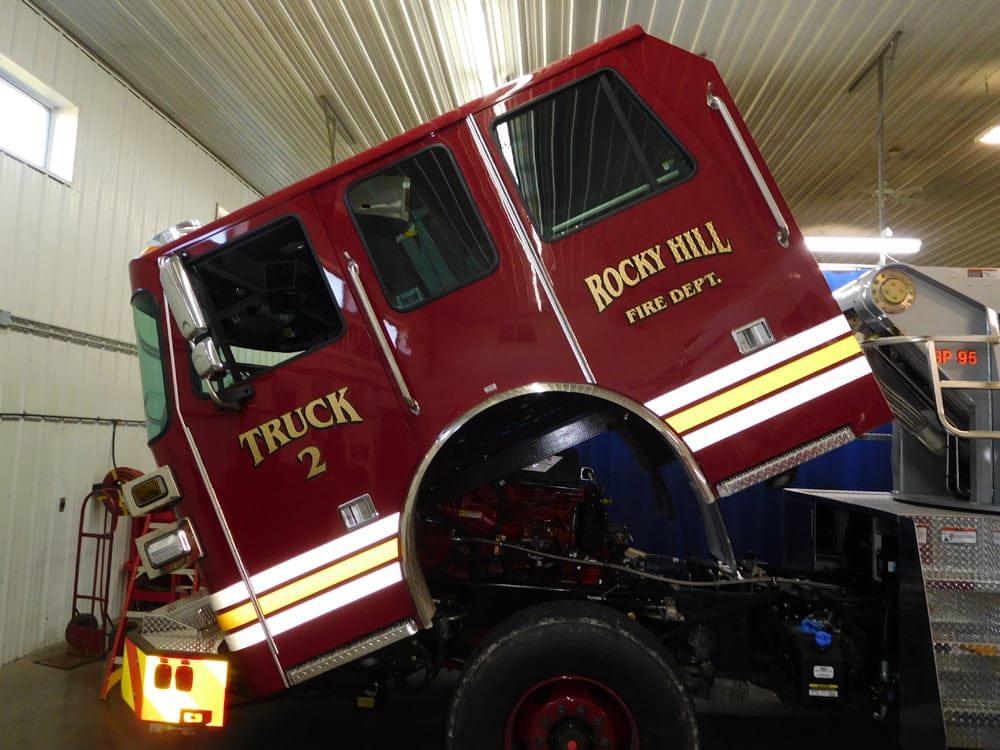

CHASSIS: Sutphen 62” with flat roof

  • Four-door, six-person cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins ISX 12, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP: Hale

  • QMAX- 1500 GPM
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right,
  • 500-Gallon Water Tank

BODY: Sutphen

  • Stainless Steel
  • Hinged Aluminum Doors
  • 220 cu. ft. Total Compartment Space
  • Duo-Safety I.S.O. Aerials
  • 95 ft. Low Rail
  • SP2, Left High, Right Low

OPTIONAL EQUIPMENT:

  • Hannay Electric Cord Reel, 200’
  • Safety Vision Camera System

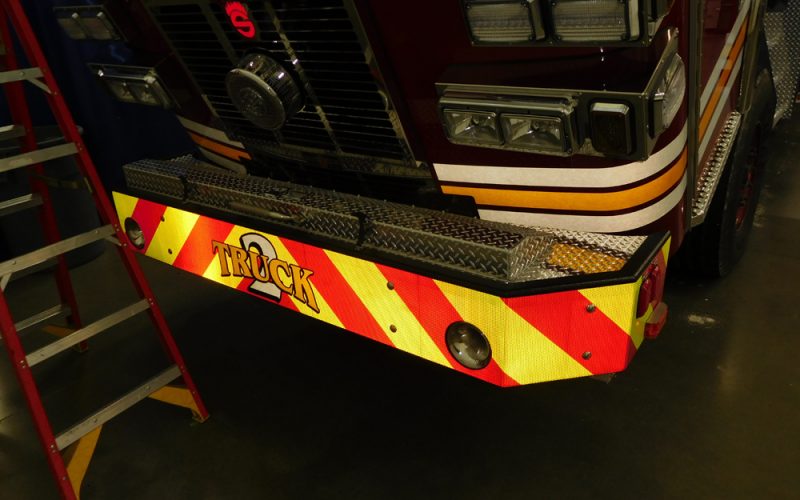

  • 18” Bumper
  • Smart Power 8KW Generator
  • Warning Lights, Whelen
  • Federal Q2B
