Delivery Date:
08/12/2018
Department Name:
Miami-Dade Fire Resuce
Department City / State:
Miami-Dade, FL

WHEEL BASE: 247”

TRAVEL HEIGHT: 11’-6”

TRAVEL LENGTH: 48’-6”

CHASSIS:             Sutphen 73” cab with half 10” raised roof

  • Four-door, Five-person cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500 HP
  • Alternator: Leece Neville, 350 AMP
  • Transmission: Allison Gen 5, EVS4000

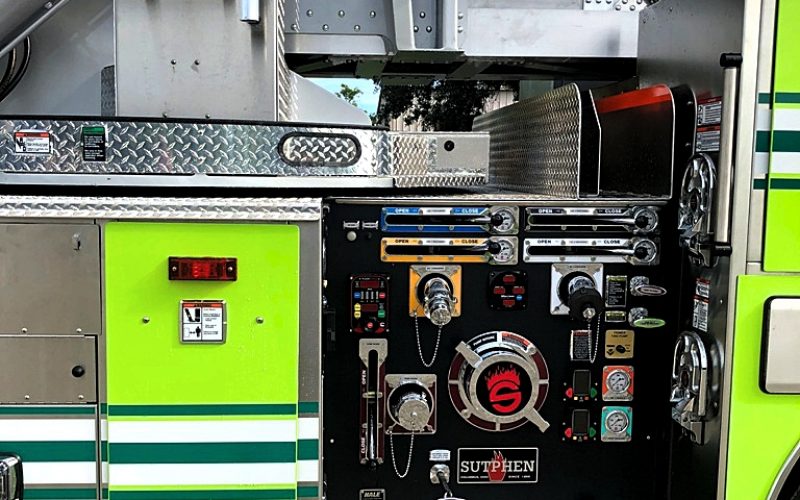

PUMP:                 Hale

  • QMAX-1500 GPM
  • Discharges: (2) ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Stainless Steel
  • Rom Roll Up Doors
  • Ladder Chute

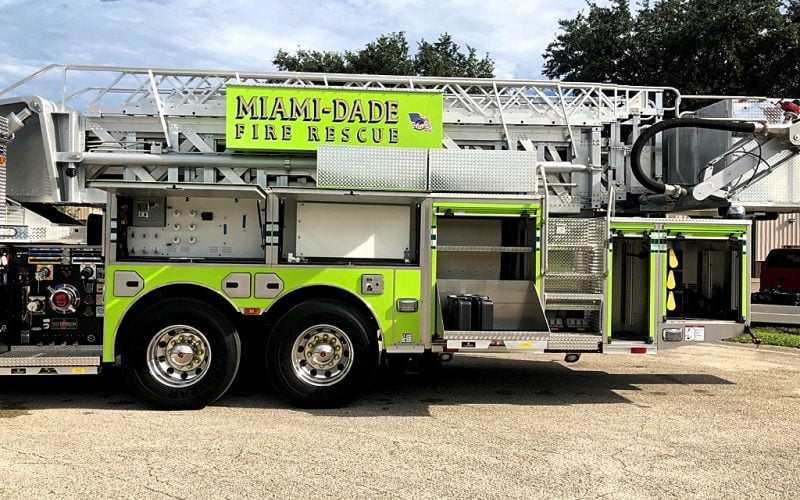

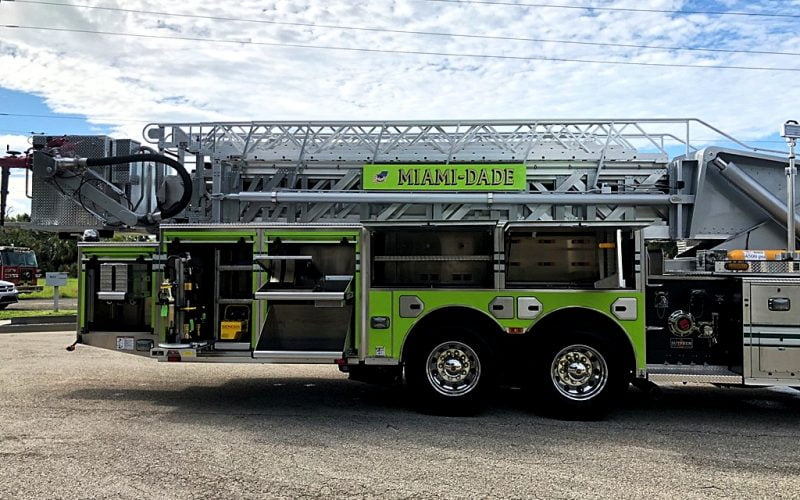

  • 293 cu. ft. Total Compartment Space
  • Alco-Lite SPH
  • SPH-3, Left 56” High, Right 56” High

OPTIONAL EQUIPMENT:

  • 10KW Harrison Generator
  • Hannay Electric Cord Reel, 150’
  • Pike Pole Storage Tubes
  • Ziamatic SAC-44 Folding Wheel Chocks
  • Federal Q2B
  • 24” Bumper
  • Intercom System, FRC ACT 2-Station
  • Parapet Ladder
  • Stokes Arms



MONITORS:

  • Driver Side Monitor: Elkhart Cobra EXM 1250 GPM w/ Elkhart SM-1250E w/ 248A Stream Shaper
  • Officer Side Monitor: Akron 3473, Gemini Manual 1000 GPM
  • Driver Side Nozzle: TFT MST-4NJ Stacked Tips w/ XF-SS10 Stream Straightener
