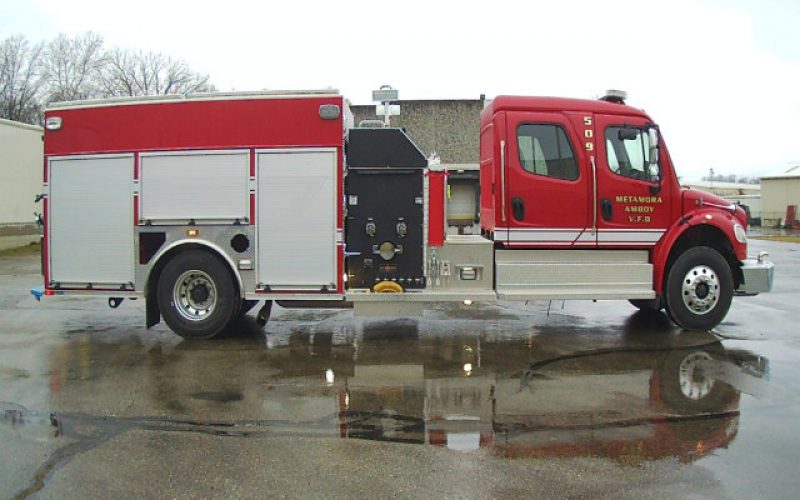

Delivery Date:
02/20/2020
Department Name:
Metamora VFD, OH
Department City / State:
Metamora, OH
Truck Type:
WHEELBASE: 266”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 35’ – 10”

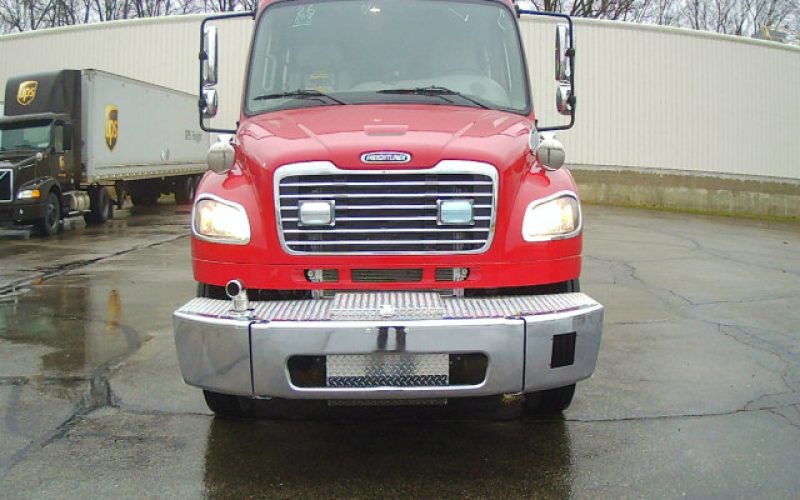

CHASSIS: Freightliner M2 106 – 4DR
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 14,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 350 HP
- Alternator: for commercial chassis, 300 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QFLO-1250 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 20-Gallon Foam Tank
- Smartfoam Supply System w/ Flush
BODY: Sutphen
- ROM Roll-Up Compartment Doors
- 294 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Fully Enclosed Ladder Chutes
- Body: C9 – Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 20” Polished Stainless Steel, Bumper Extension
- Rear Vision Camera
- Air Bottle Compartments (4)
- Whelen PFH2 Brow Light
- Whelen Freedom LED Lightbar
- Whelen M9 Red Warning/Scene Lights
