Delivery Date:
02/21/2020
Department Name:
Melbourne Fire Department
Department City / State:
Melbourne, FL

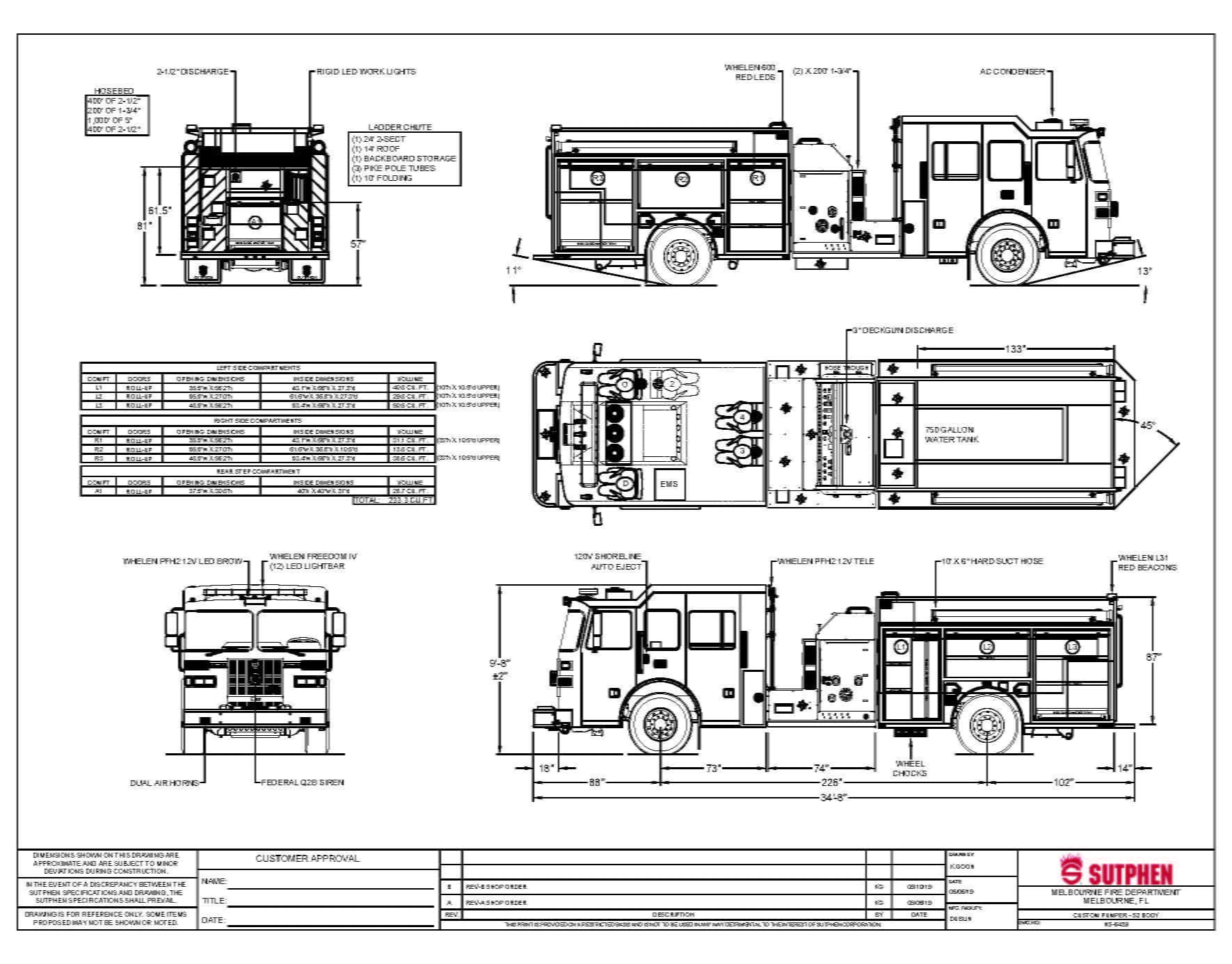

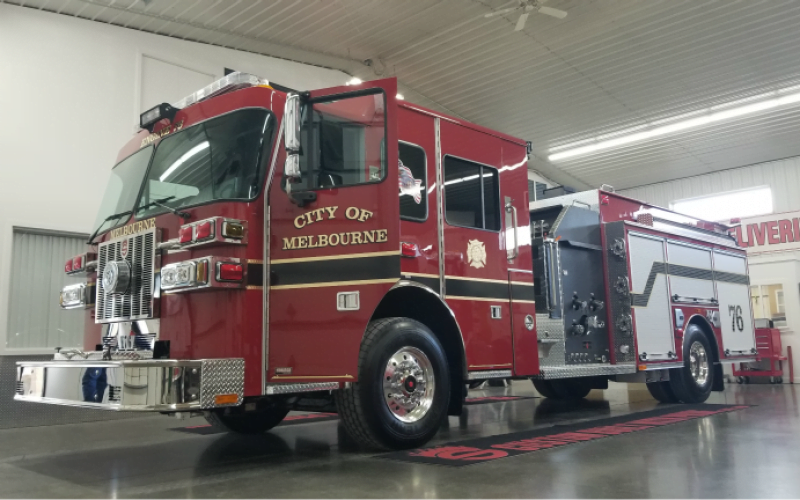

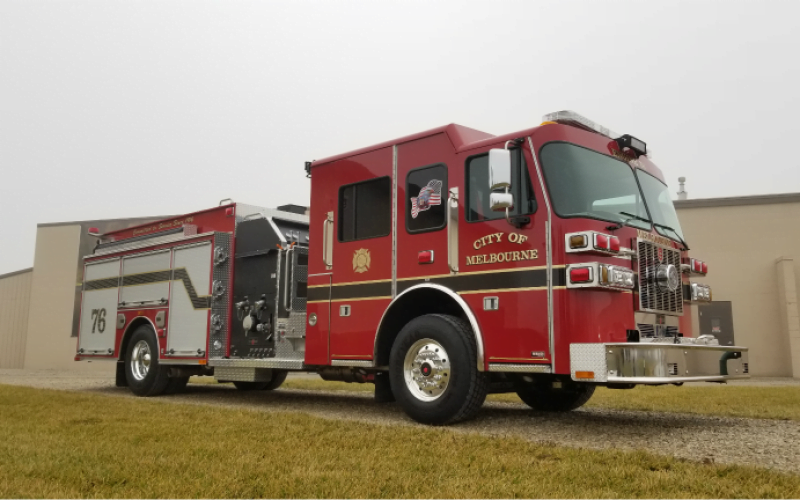

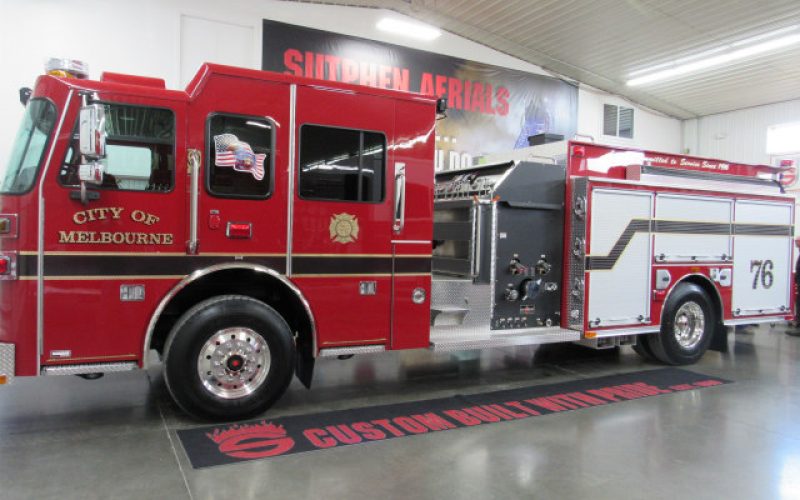

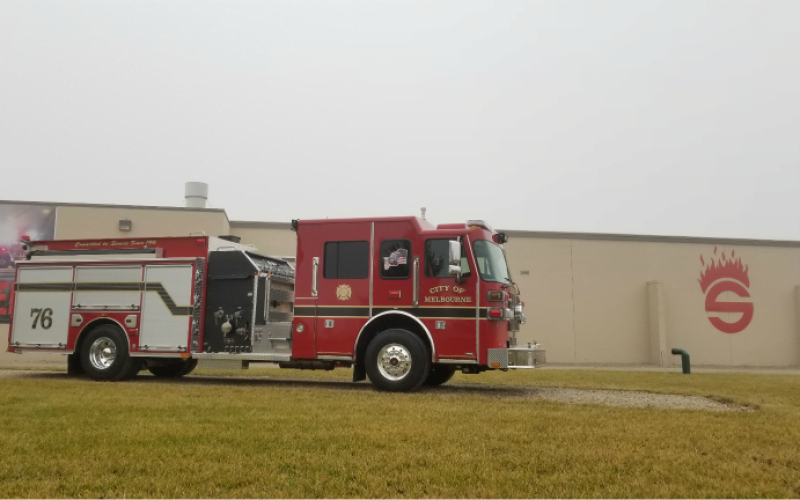

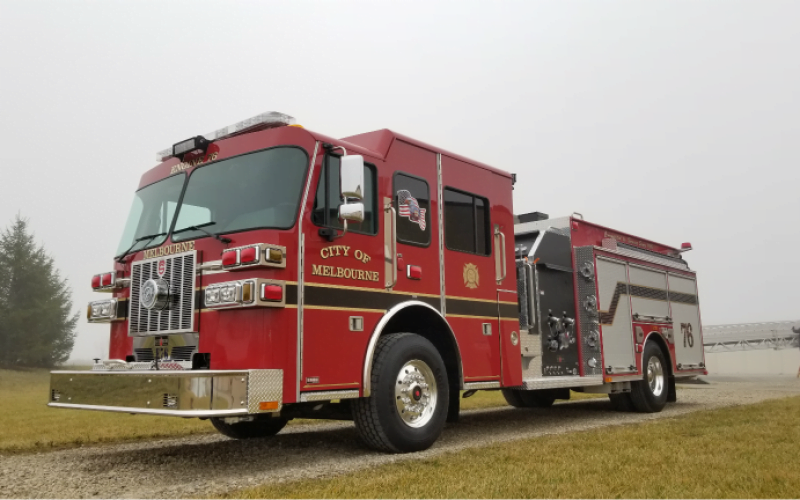

Truck Type:
WHEELBASE: 226”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 34’ – 8”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 400 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivel
- 750-Gallon Water Tank
BODY: Sutphen
- Amdor Roll-Up Compartment Doors
- Over 230 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Body: S2 – Alum 43/53 Ladders Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel
- Federal Q2B Siren, Grille Mount
- Whelen Freedom IV (12) LED Lightbar
- Whelen PFH2 12V LED Brow Light
- Whelen PFH2 12V Tele
- Whelen Red Warning/Scene Lights
