Delivery Date:
02/01/2018
Department Name:

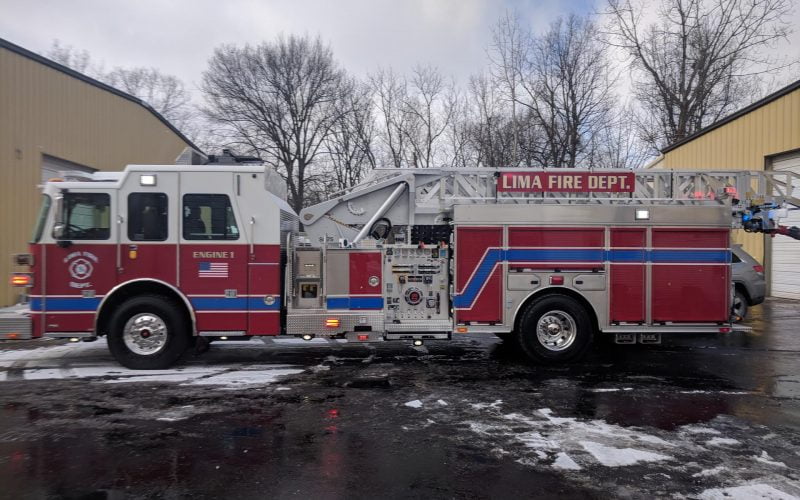

Lima Fire Department
Department City / State:
Lima, OH
Truck Type:

WHEEL BASE: 232”

TRAVEL HEIGHT: 10’ 0.5”

TRAVEL LENGTH: 41’8.25”

CHASSIS:              Sutphen 73” cab with 10” half raised roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 23,000 lbs.
  • Rear Axle and Suspension: 31,000 lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • 2000 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.0” Valve, 2.0” Pipe Right Rear, 2.5” Upper Left Side Body, 2.5” To Front Bumper, 2.5” Aerial Tip
  • 500 Gallon Water Tank

BODY:                   Sutphen

  • 01 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Federal Q2B
  • Camera, FRC In-View 360 Camera System
  • Trays for 1.75” Rear Pre-Connects
  • Adaptor for Front Bumper Discharge Gated WYE
  • Tread plate top w/webbing
  • Shelving Allowance
  • Ladder Mounted on Base section of Boom
  • Ecco Beacon at Aerial Tip
  • Light Tower Head Command Light FRC Spectra Knight
  • Attic Ladder Storage
