WHEEL BASE: 185″
TRAVEL HEIGHT: 9′-2″
TRAVEL LENGTH: 32′-1″

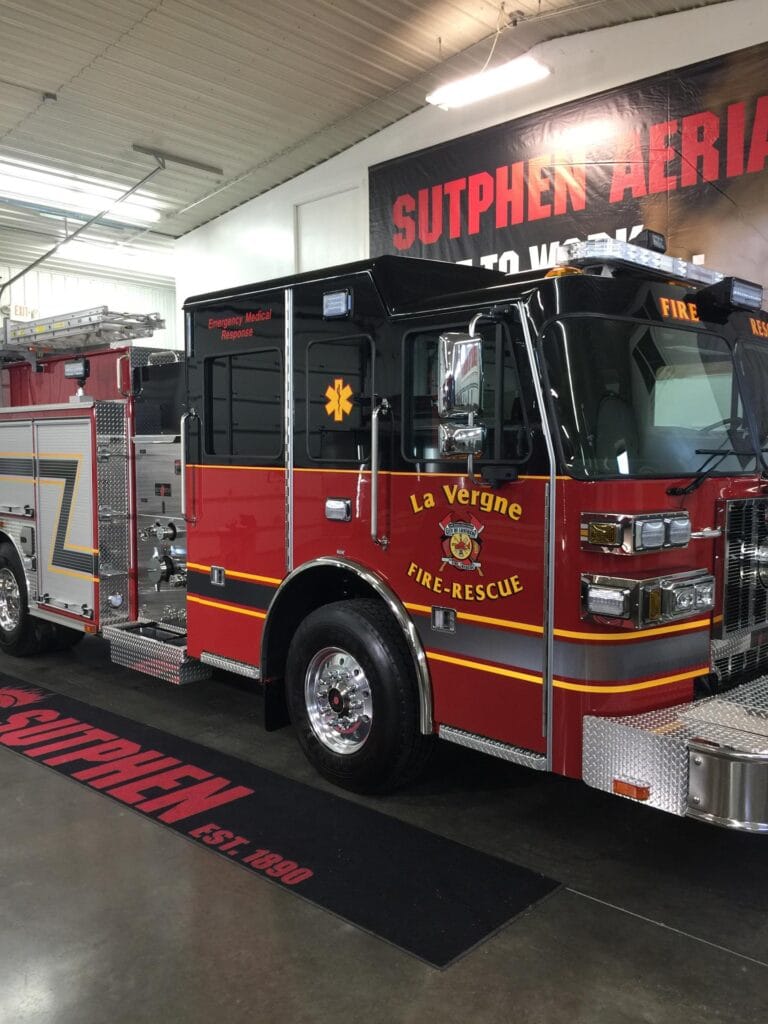

CHASSIS: Sutphen 62” extended cab with half 10” raised roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 20,000 lbs.
- Rear Axle and Suspension 27,000 lbs.
- Engine: Cummins ISL 9 450 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX- 1500 GPM
- Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Right, 2.5″ Left Rear, 1.5″ Front Bumper Discharge, 2″ Plumbing, 3″ Deck Gun
- 1000 Gallon Water Tank
- 30 Gallon Foam Tank

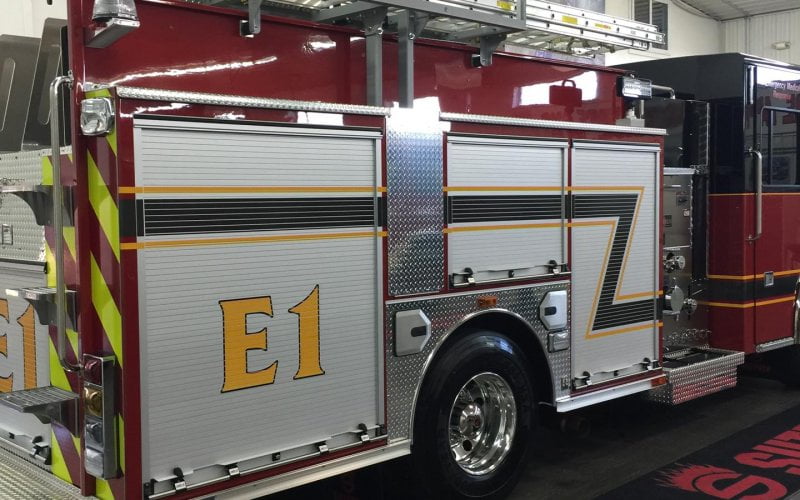

BODY: Sutphen
- Aluminum
- 263 cu. ft. Total Compartment Space

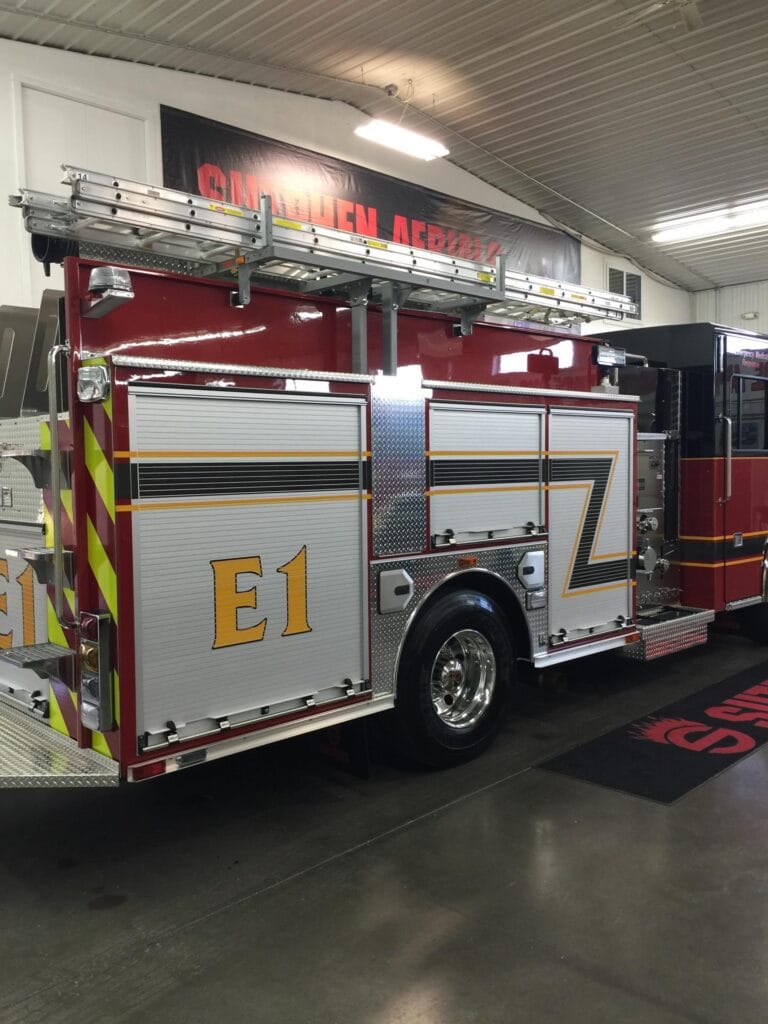

- Alco-Lite PEL-24
OPTIONAL EQUIPMENT:
- Federal Q2B

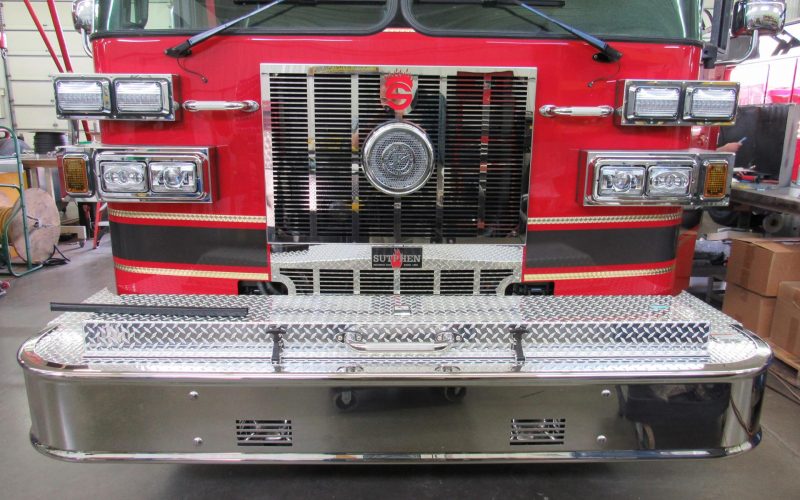

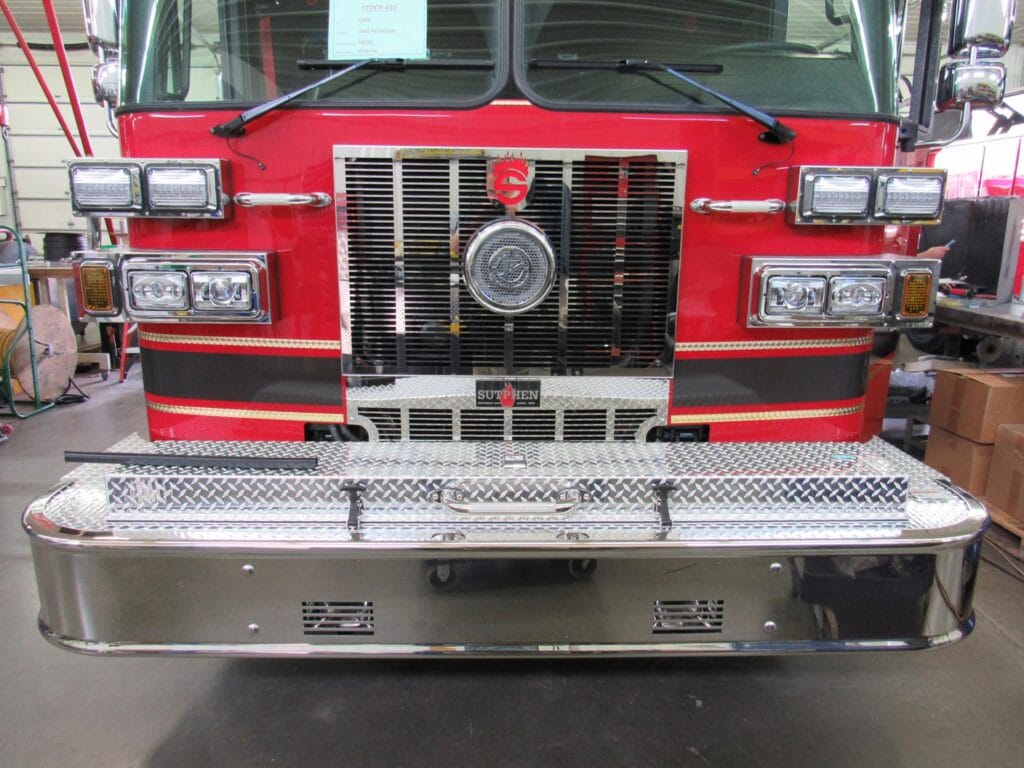

- 24” Bumper Extension
- Ziamatic Sac-44 Folding Wheel Chocks MTD W/SQCH-44H Holders (Pair)
- Camera System, Safety Vision
- Back Up Camera
