WHEEL BASE: 221″
TRAVLE HEIGHT: 10′-9 1/2″
TRAVEL LENGTH: 39′-9″

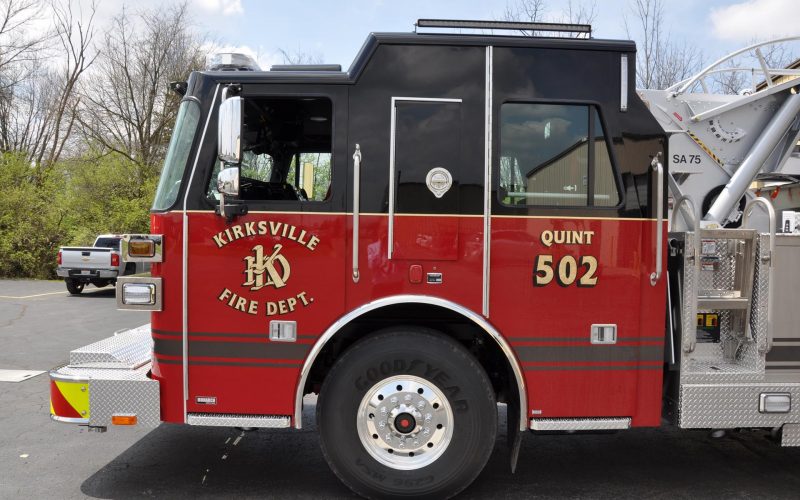

CHASSIS: Sutphen 62” Cab with 10” half raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension: 23,000 Lbs.
- Rear Axle and Suspension: 31,000 Lbs.
- Engine: Cummins ISX 12 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5
PUMP: Hale
- QMAX-2000 Single Stage Pump
- Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Valve, 2.5” Pipe to Left Rear, 1.5” Front Bumper, 2” Plumbing
- 500 Gallon Water Tank
BODY: Sutphen
- Aluminum
- 73 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Pike pole storage box for 4 pike poles and 10′ attic ladder. Tulip clips on pike poles. Scene Lights, Whelen
- Ziamatic SAC-44 Folding Wheel Chocks MTD/SQCH Folding WHEEL CHOCKS
- Kenwood Radio
- Ladder Package Duo-Safety 207’
- Ladder Chute enclosed with Tread plate doors
- Side-Load Tread plate backboard storage
- Five SCBA Cylinder Compartments
- Ladder Package Duo Safety pumper ladders + 1 additional 10′ attic ladder
- Reinforced Backboard Sleeve above Ground
