WHEEL BASE: 185″
TRAVEL HEIGHT: 10′ ±2″
TRAVEL LENGTH: 32′-1″
CHASSIS: Sutphen 62” Cab half 10” raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension: 20,000 Lbs.
- Rear Axle and Suspension: 27,000 Lbs.
- Engine: Cummins ISL 9 450HP
- Alternator: Leece Neville 270 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM Single Stage
- Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Right, 2.5″ Right Rear, 2.5 Front Bumper, 2.5” Plumbing
- 1000 Gallon Water Tank
BODY: Sutphen
- Aluminum

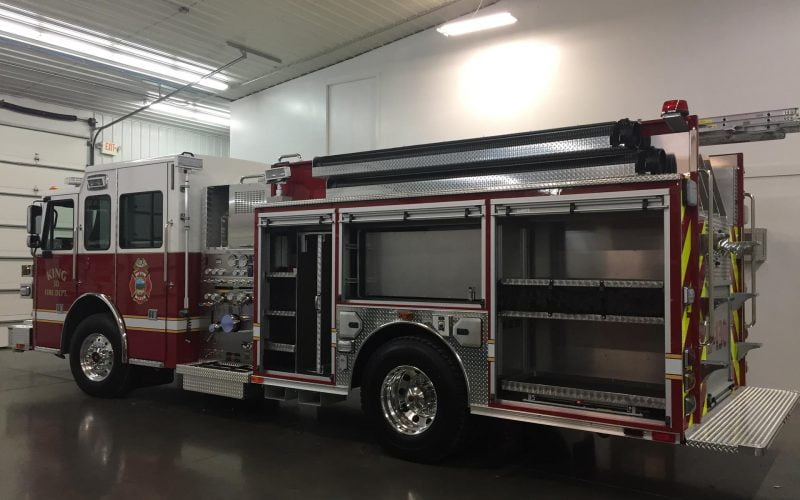

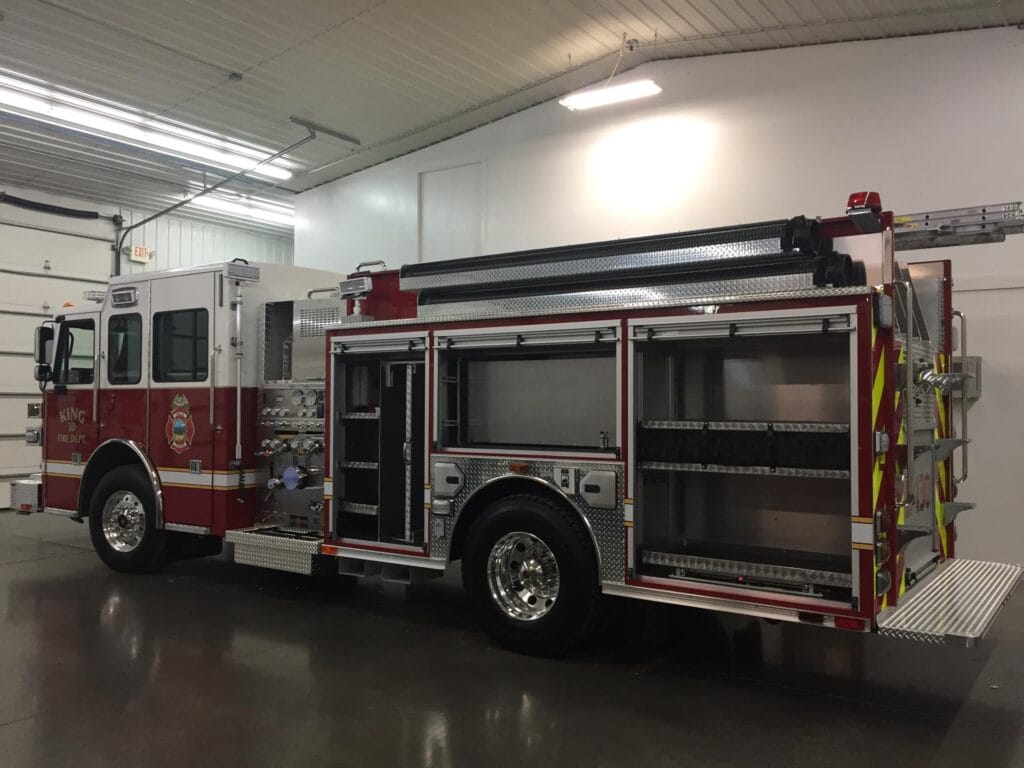

- 263 cu. ft. Total Compartment Space
- Alco-Lite PEL-24
OPTIONAL EQUIPMENT:
- Scene Lights, Whelen
- Federal Q2B

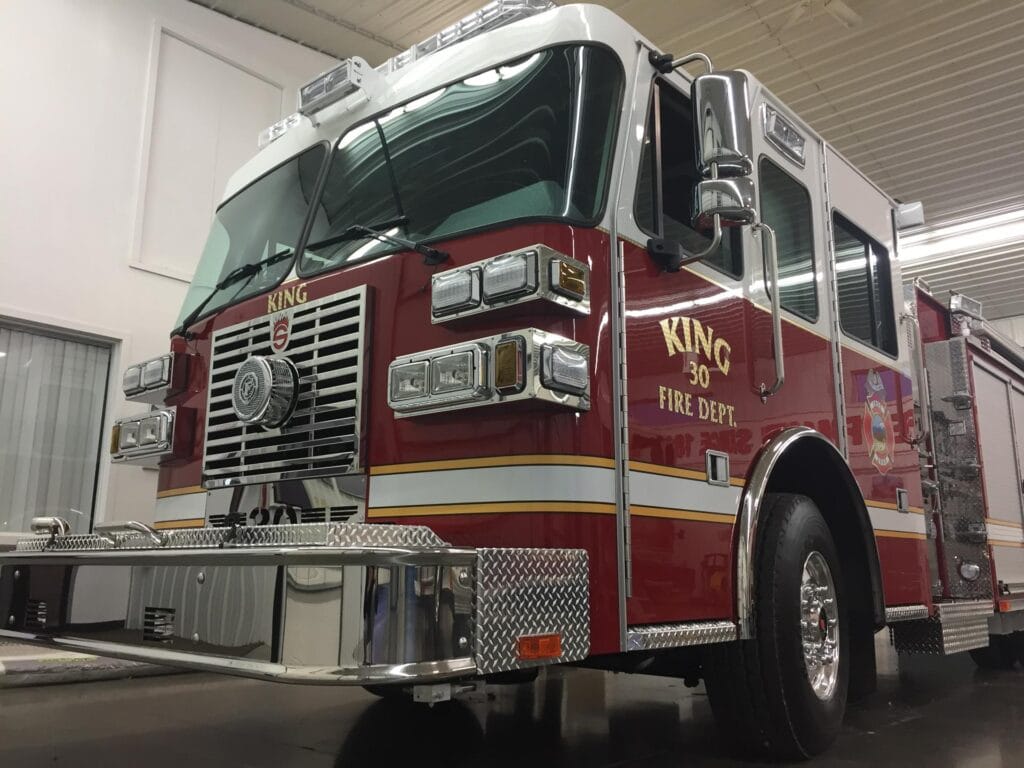

- 24” Bumper Extension
- Camera System, Safety Vision SV-CLCDO-70

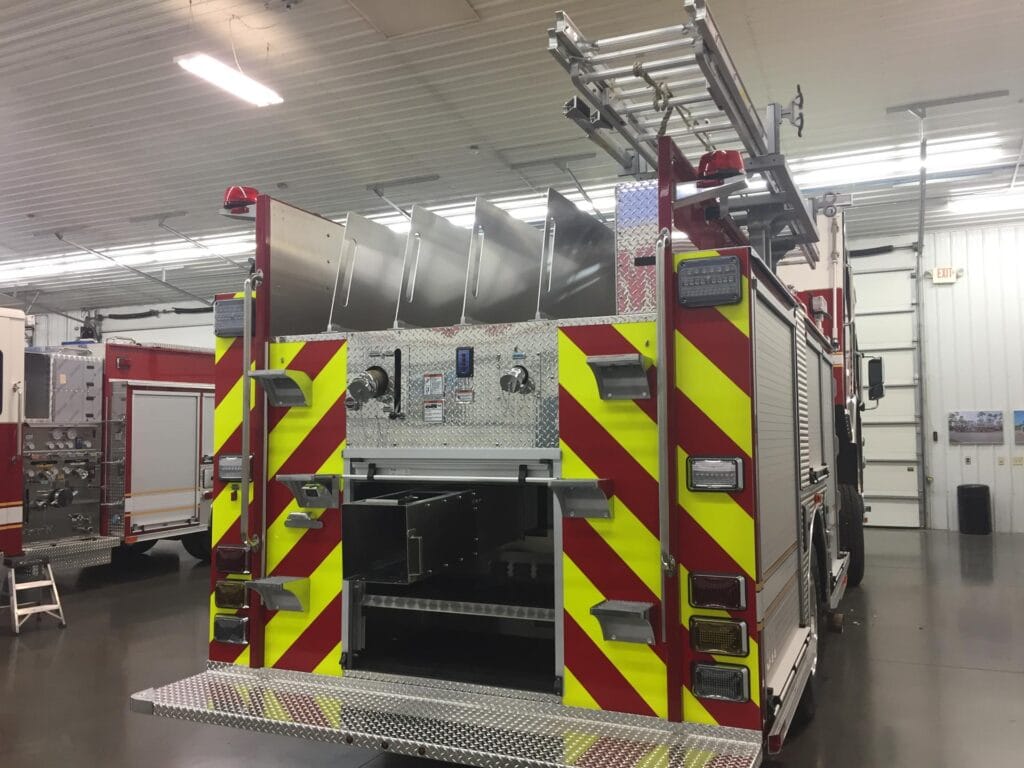

- Ziamatic Hydraulic Ladder Rack
- Ziamatic SAC-44 Folding Wheel Chocks MTD with SQCH-44H Holders.
- 4-Position Wireless Firecom System
