Delivery Date:
01/01/2018
Department Name:
Karns Fire Department
Department City / State:
Knoxville, TN

WHEEL BASE: 191”

TRAVEL HEIGHT: 118″±2″

TRAVEL LENGTH: 30′-8 3/4″

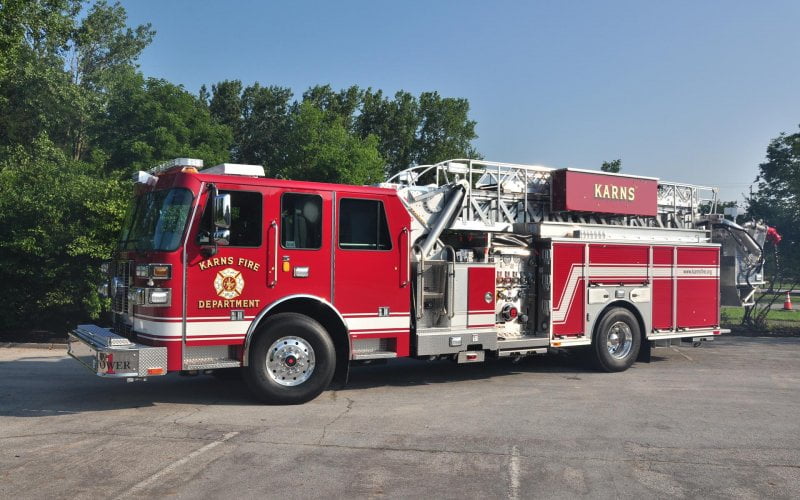

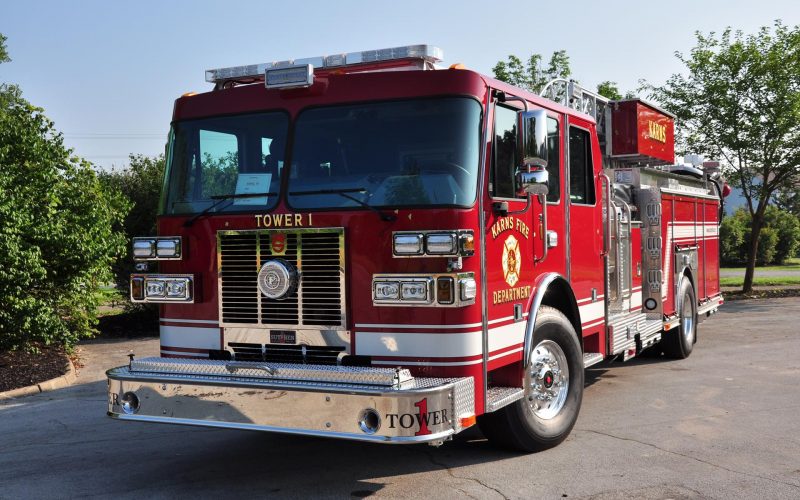

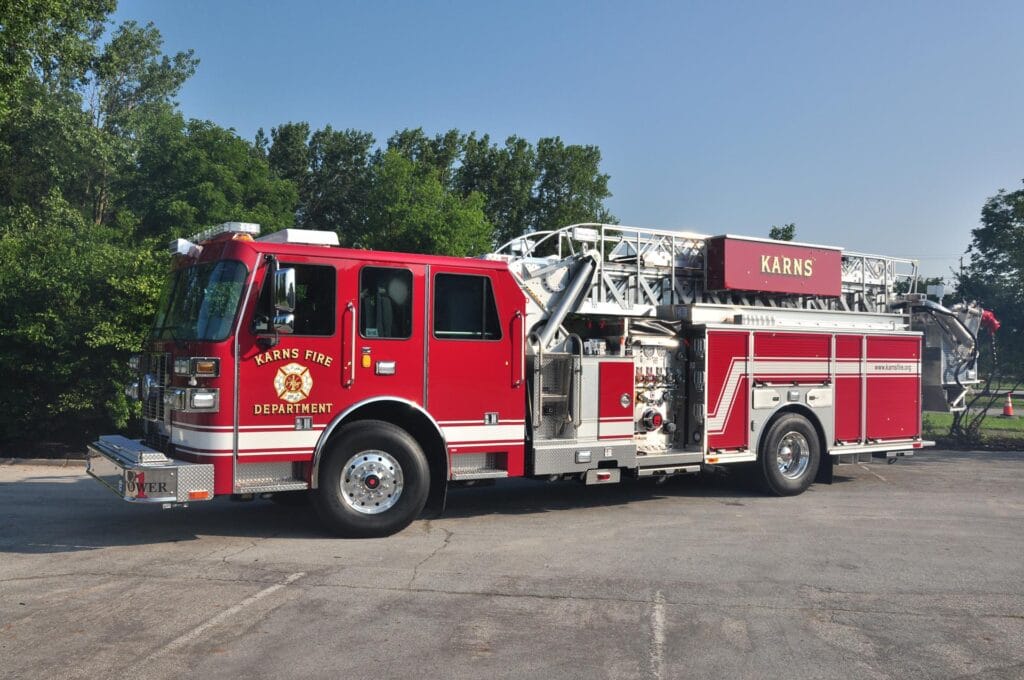

CHASSIS:              Sutphen 62” cab with 10” half raised roof

  • Four-Door, Five-Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins ISX 12 500 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

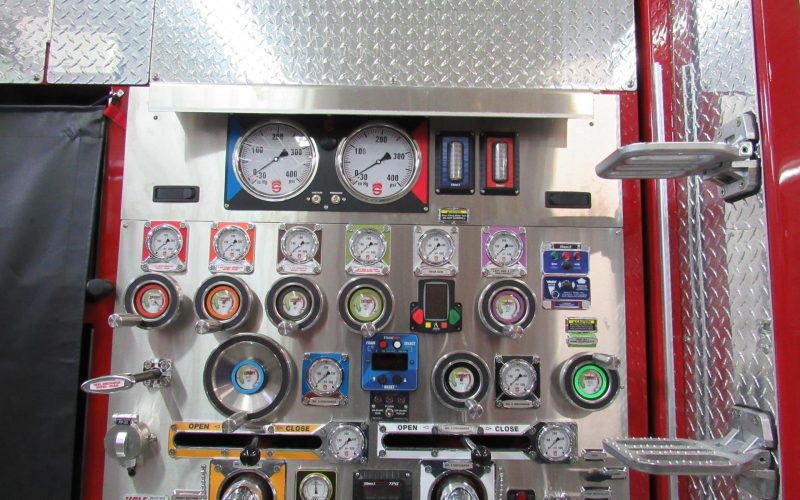

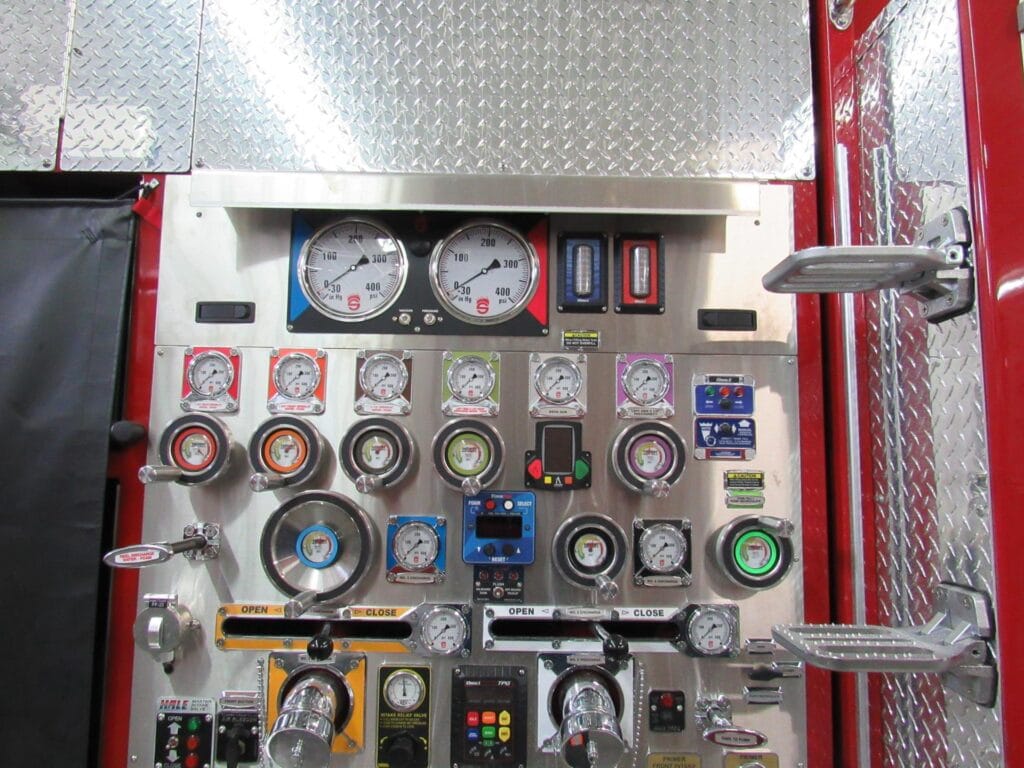

PUMP:                  Hale

  • 1500 GPM 6” Suction Single Stage
  • Discharge: (2) 2.5” Left, 4” Right, 3” Right, 2.5 Valve 2.5” Pipe to Left Rear, 2.5” Front/Left of Main Hose Bed, 3” Deck Gun,
  • 750 Gallon Water Tank

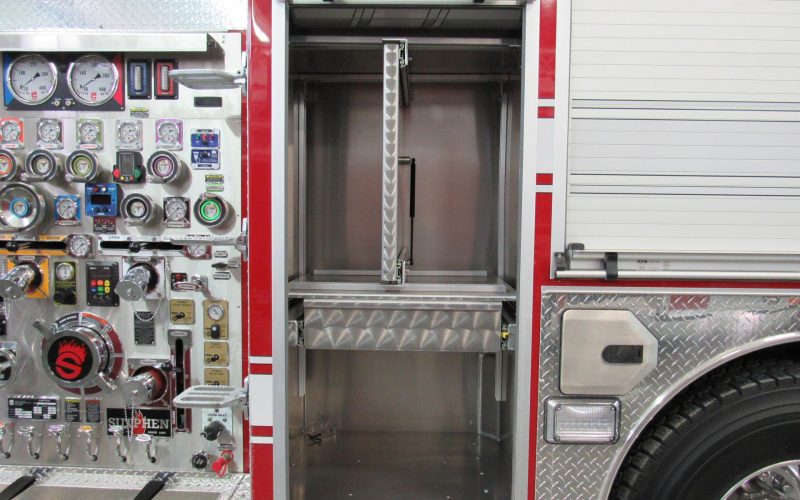

BODY:                   Sutphen

  • Aluminum
  • 257 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Scene Lights, Whelen
  • Federal Q2B
  • Front Bumper 6”
  • Additional Front and Rear Receivers

Additional Scuff Plates
